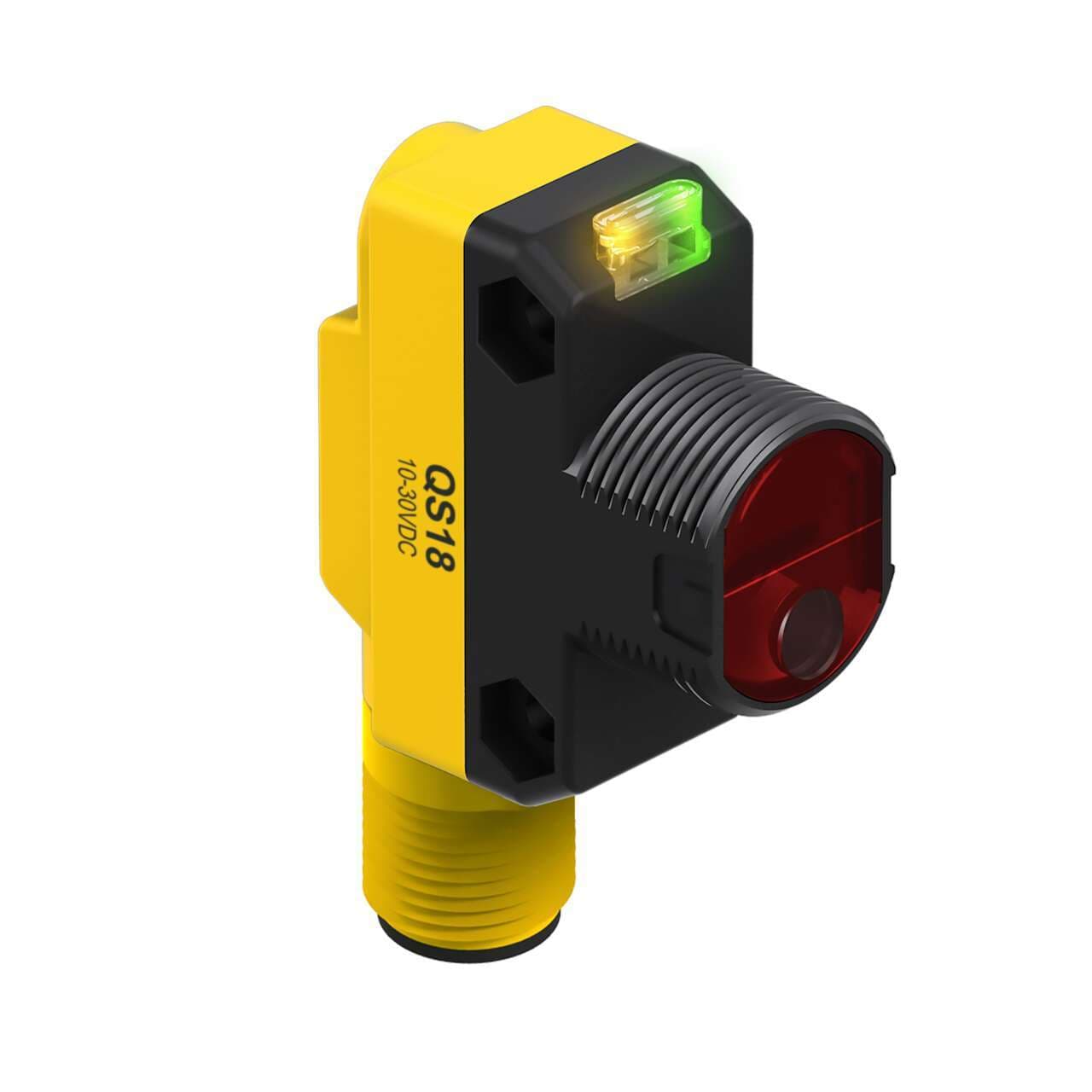

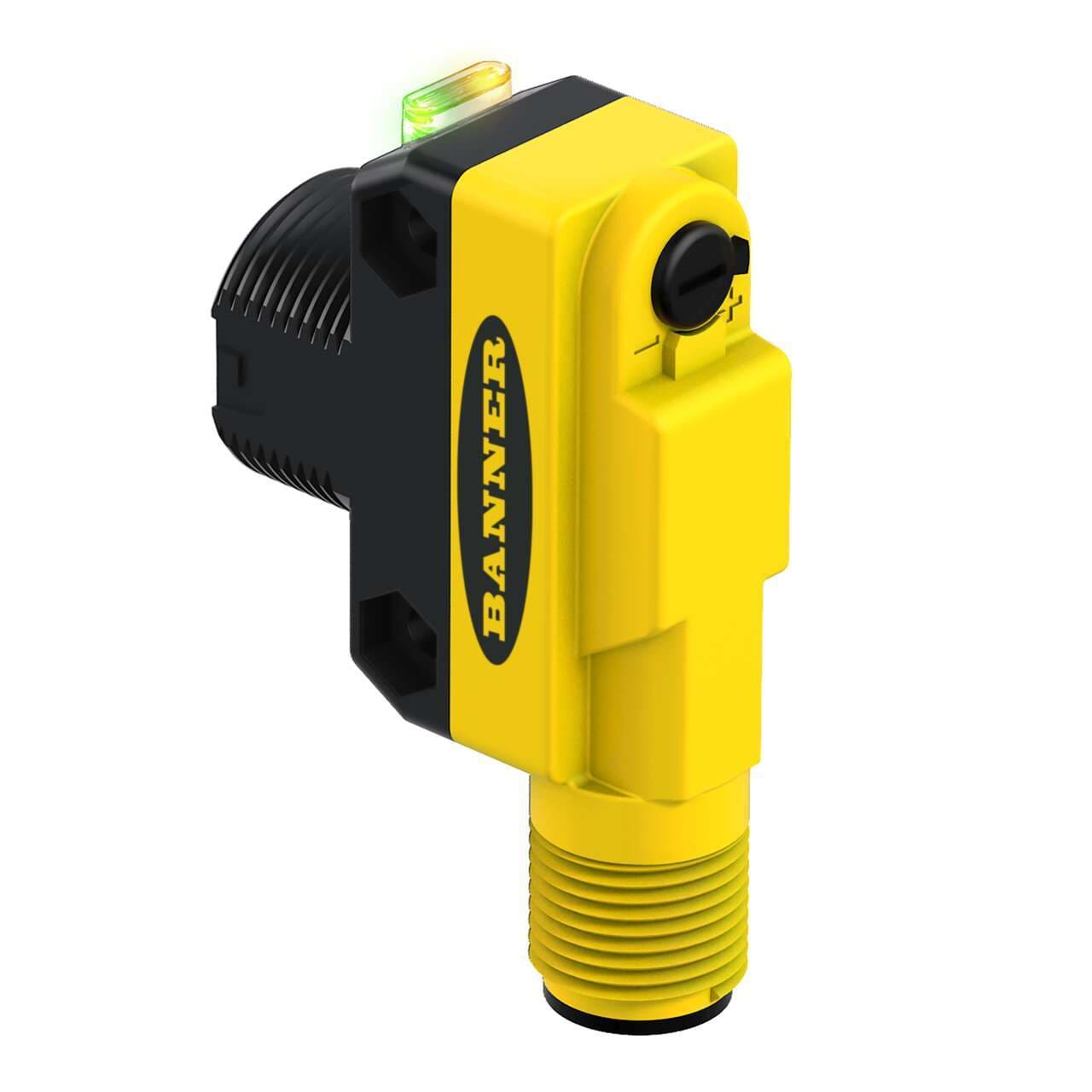

QS18VN6LDQ8 Banner Proximity Sensors
Part#:QS18VN6LDQ8
Alt. Part#:73039
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Laser Diffuse; Range: 300 mm; Input: 10-30 V dc; Output: Complementary Solid-State NPN; 4-pin M12 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Design diffuse mode
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 300mm
- Sub-range name QS18LD series
- Light Color Visible red
- Thread size M18
- Response time 0.7ms / 0.0007 s
- Ambient air temperature for operation -10...+50 °C
- Primary brand Banner Engineering
- Main function Sensor (Photo-electric)
- Wavelength 650 nm
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 73039
- Product series / family name WORLD-BEAM series
- Functions Class 1 Laser photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Shape Rectangular
- Degree of protection IP67 NEMA 6
- Mounting mode Threaded mount
- Digital outputs 1 x digital output (NPN transistor)
- Compliant with standard(s) cURus CE
- Material thermoplastic housing Acrylic lns.
- Sensing Beam Wavelength 650
- Indicator LEDs
- Laser Classification Class 1
- Quick Disconnect Type M12 (Euro)
- Connection Integral QD
- Input/Output Discrete
- Repeatability (µs) 130
- DeviceNet No
- Sensing Mode (Detailed) Diffuse
- Sensing Beam Visible Red Laser
- Output response time (ms) 0.7
- NEMA Rating NEMA 6
- Feature: Quick Disconnect Yes
- Power DC
- Max Sensing Distance (mm) 300
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Encapsulated No
- Primary Housing Material ABS
- Min Op. Temp. (°C) -10
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Sensing Mode (General) Proximity
- Outputs NPN
- Max Op. Temp. (°C) 50
- Number of Pins 4
- Feature: Audible No
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Feature: Hazardous Area No
- Housing Style Rectangular w/M18 Mount
- Power Supply/Supply Voltage 10-30 V dc
- IP Rating IP67
- IO Link No
- Small Visible Spot Laser
- Operation Light/Dark Operate
- Delay at Power-up (ms) 200
- Feature: Timing (Hold/Delay) No
- Lens Material Acrylic
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6LDQ8 on Powermatic Associates is $152.00. Order now.
About the product
Banner Engineering QS18VN6LDQ8 is a Class 1 laser photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes with an M18 threaded mount for easy installation and is equipped with a 4-pin Euro-style M12 connector for connectivity. This sensor operates within an ambient air temperature range of -10 to +50 °C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. It belongs to the QS18LD series and offers a sensing distance of up to 300mm with a visible red light at a wavelength of 650 nm. The QS18VN6LDQ8 supports both Light-ON and Dark-ON operating modes and provides a digital output (NPN transistor; complementary NO/NC) with a rapid response time of 0.7ms. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor is designed to meet IP67 and NEMA 6 degrees of protection, making it suitable for various industrial environments.
