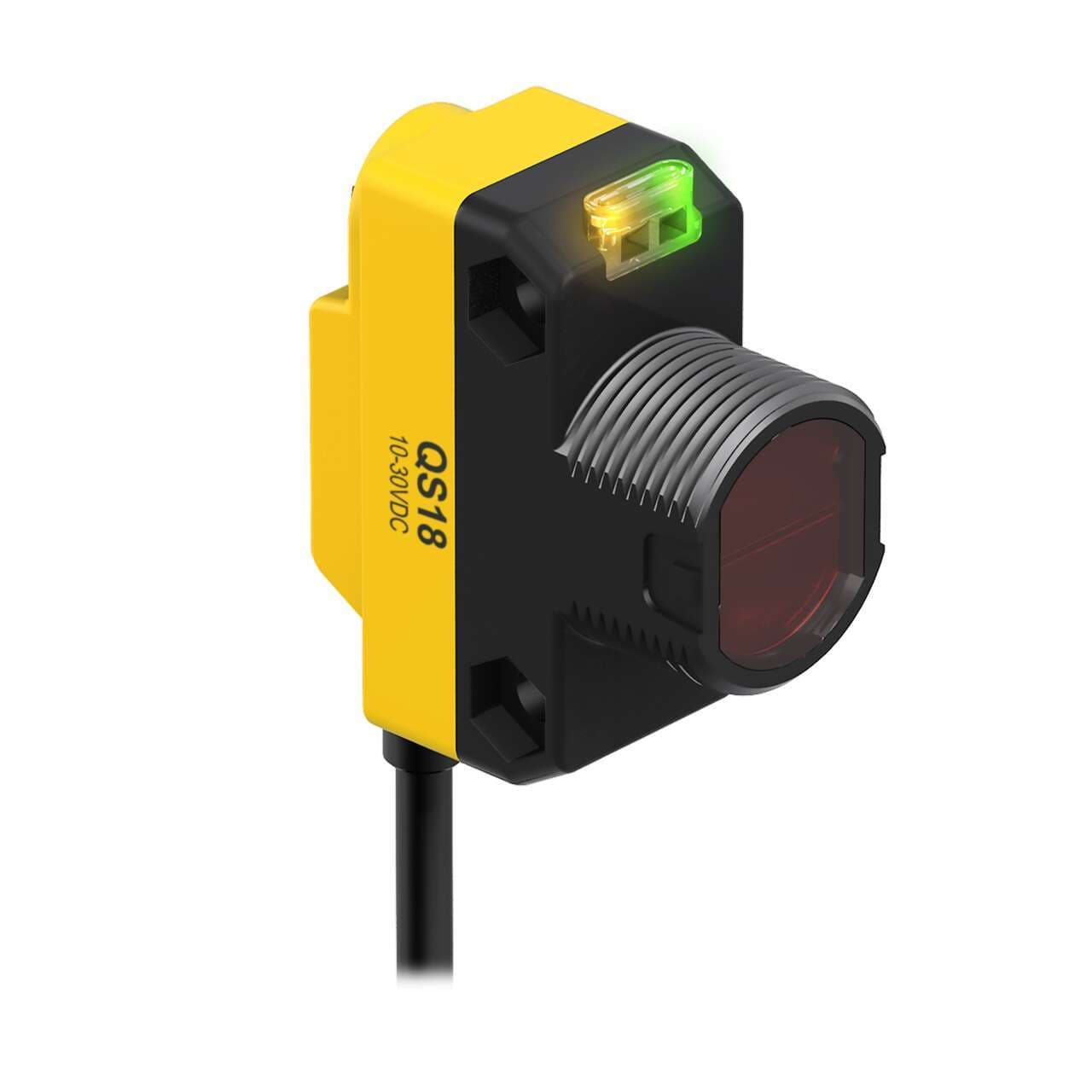

QS18VN6LP Banner Proximity Sensors
Part#:QS18VN6LP
Alt. Part#:61627
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Polarized Retro; Range: 3.5 m; Input: 10-30 V dc; Output: Complementary Solid-State NPN; 2 m (6.5 ft) Cable
Product Details
- Weight 81.64656 g
- Country Of Origin MX
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 630
- Indicator LEDs
- Cable Length (m) 2
- Max Sensing Distance (mm) 3500
- IP Rating IP67
- Barrel Diameter (mm) 18
- Sensing Mode (Detailed) Polarized
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Quick Disconnect No
- Housing Style Rectangular w/M18 Mount
- Min Op. Temp. (°C) -20
- Repeatability (µs) 150
- Feature: Chemical Resistant No
- Connection Cable
- Power DC
- Output response time (ms) 0.6
- Feature: Timing (Hold/Delay) No
- IO Link No
- Sensing Beam Visible Red LED
- Special Feature: Water Detection No
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Outputs NPN
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Primary Housing Material ABS
- Max Op. Temp. (°C) 70
- DeviceNet No
- Lens Material Acrylic
- Sensing Mode (General) Retroreflective
- Special Feature: Intrinsically Safe No
- Delay at Power-up (ms) 100
- Feature: Encapsulated No
- Quick Disconnect Type No QD
- Input/Output Discrete
- Number of Pins 4
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6LP on Powermatic Associates is $90.00. Order now.
About the product

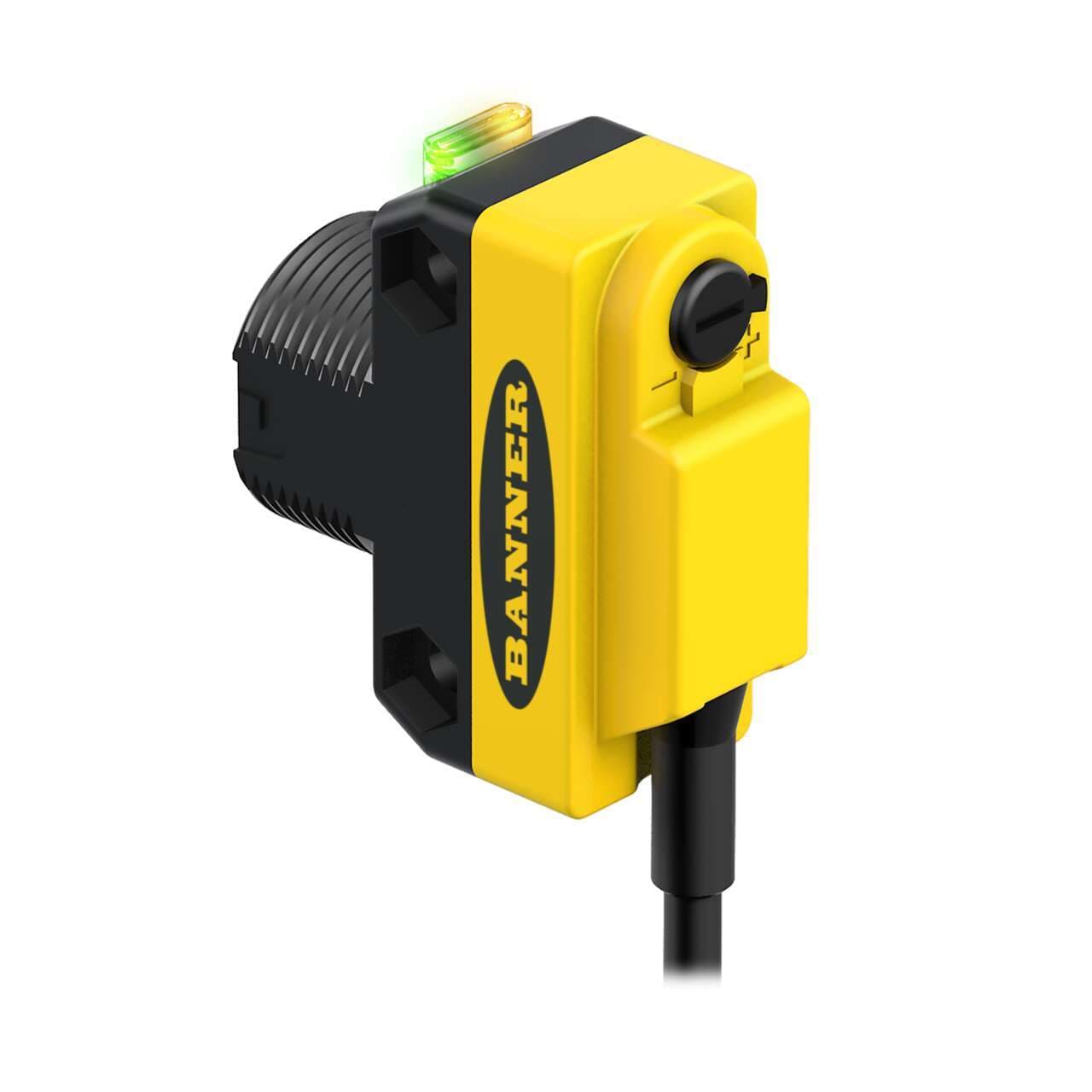

Banner Engineering QS18VN6LP is a polarized photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and is built in a rectangular shape with a thermoplastic housing and acrylic lens for durability. This sensor is part of the QS18 series and employs a retro-reflective mode with potentiometer adjustment for precise sensing, offering a sensing distance of up to 3.5m. It emits visible red light and supports both Light-ON and Dark-ON operating modes. The QS18VN6LP is equipped with a pre-wired 6.5ft / 2m cable with bare end flying leads for easy connection and features a digital output (NPN transistor; complementary NO/NC) for integration into various systems. It is designed to operate on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is protected against ingress with an IP67 NEMA 6 rating, ensuring its functionality in demanding environments.
