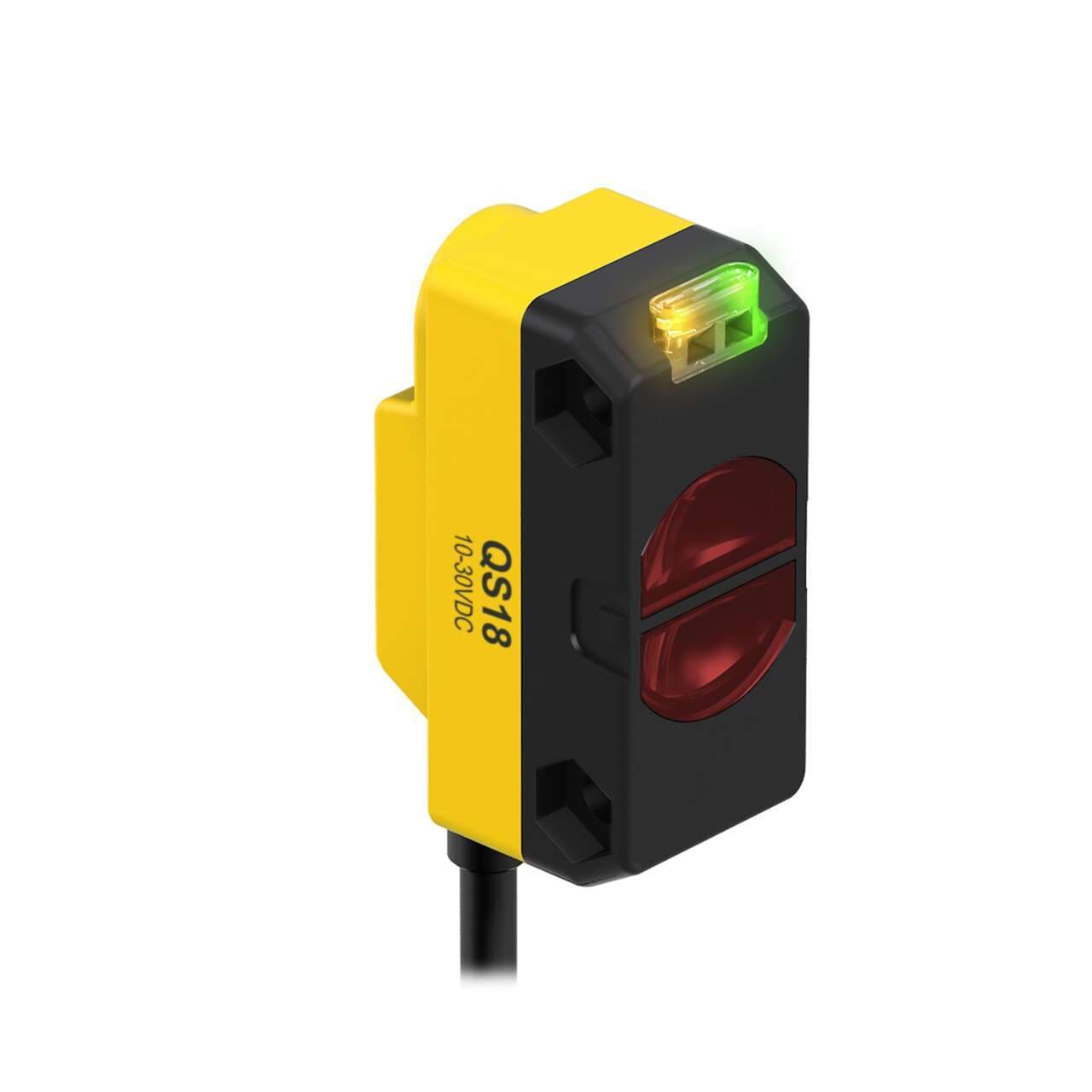

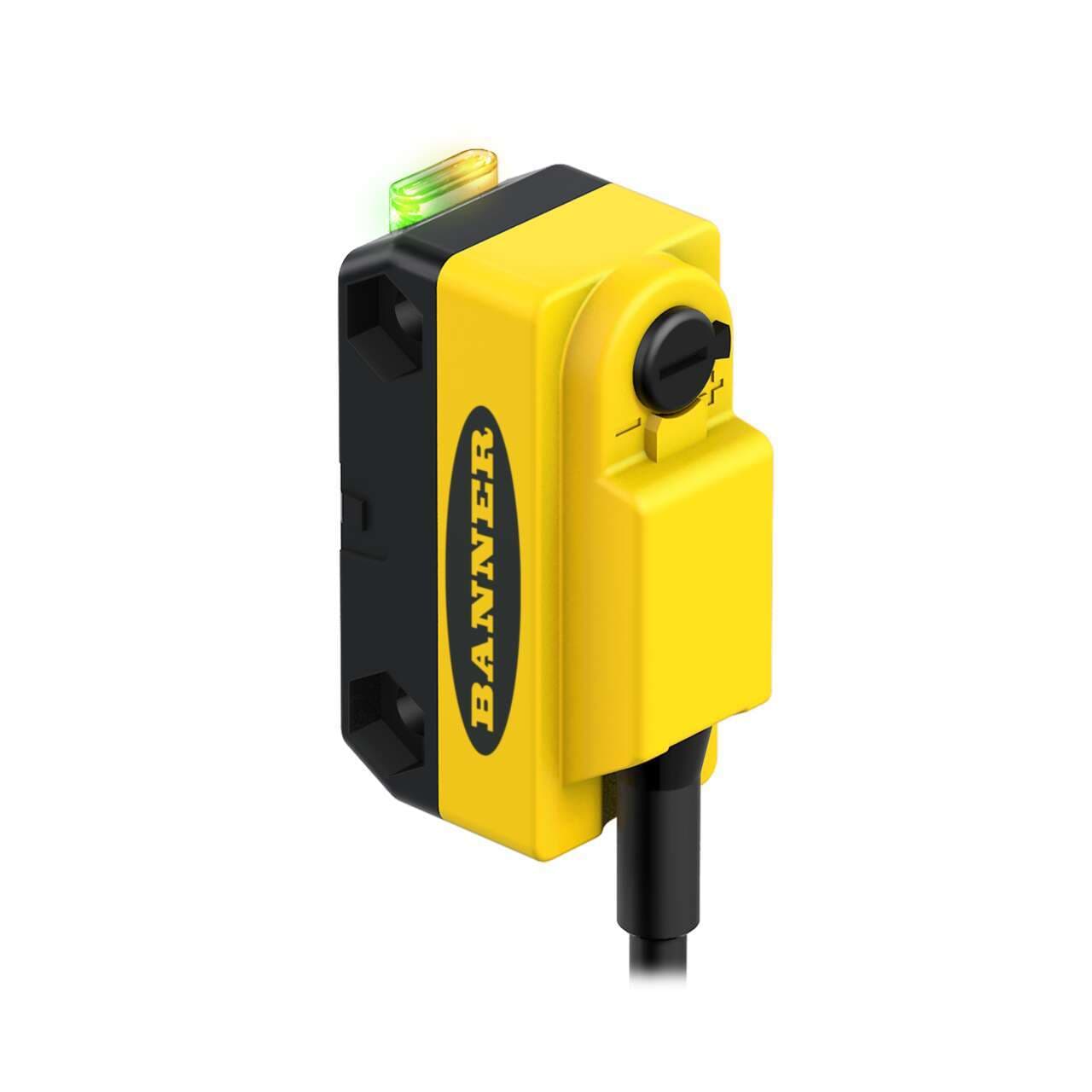

QS18VN6WQ5 Banner Proximity Sensors
Part#:QS18VN6WQ5
Alt. Part#:64592
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Divergent Diffuse; Range: 100 mm; Input: 10-30 V dc; Output: Complementary Solid-State NPN; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 54.43104 g
- Country Of Origin MX
- Primary brand Banner Engineering
- Design divergent diffuse system
- Sub-range name QS18 series
- Sensing distance 100mm
- Response time 0.6ms / 0.0006 s
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Shape Rectangular
- Digital outputs 1 x digital output (NPN transistor)
- Order code / Manufacturer SKU 64592
- Light Color Infrared (IR)
- Material thermoplastic housing Acrylic lns.
- Functions Photo-electric sensor green LED (power ON) yellow LED (light sensed)
- Ambient air temperature for operation -20...+70 °C
- Product series / family name WORLD-BEAM series
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cURus CE
- Degree of protection IP67 NEMA 6
- Max Sensing Distance (mm) 100
- Min Op. Temp. (°C) -20
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Sensing Beam Infrared LED
- Max Op. Temp. (°C) 70
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Sensing Mode (Detailed) Divergent
- Special Feature: Remote Teach No
- IP Rating IP67
- DeviceNet No
- Primary Housing Material ABS
- Operation Light/Dark Operate
- Repeatability (µs) 150
- Feature: Timing (Hold/Delay) No
- Power DC
- Output response time (ms) 0.6
- Lens Material Acrylic
- Feature: Hazardous Area No
- Outputs NPN
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Feature: Quick Disconnect Yes
- Sensing Mode (General) Proximity
- Connection Pigtail QD
- Delay at Power-up (ms) 100
- Indicator LEDs
- IO Link No
- Input/Output Discrete
- Quick Disconnect Type M12 (Euro)
- Number of Pins 4
- Feature: Encapsulated No
- Housing Style Rectangular
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Barrel Diameter (mm) N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VN6WQ5 on Powermatic Associates is $106.00. Order now.
About the product
Banner Engineering QS18VN6WQ5 is a photo-electric sensor designed with a divergent diffuse system and operates within an ambient air temperature range of -20 to +70°C. This sensor is part of the QS18 series and features a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector for connectivity. It offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The QS18VN6WQ5 operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens. The sensing distance is specified at 100mm, utilizing infrared (IR) light for detection. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor; complementary NO/NC) with a response time of 0.6ms / 0.0006 s.
