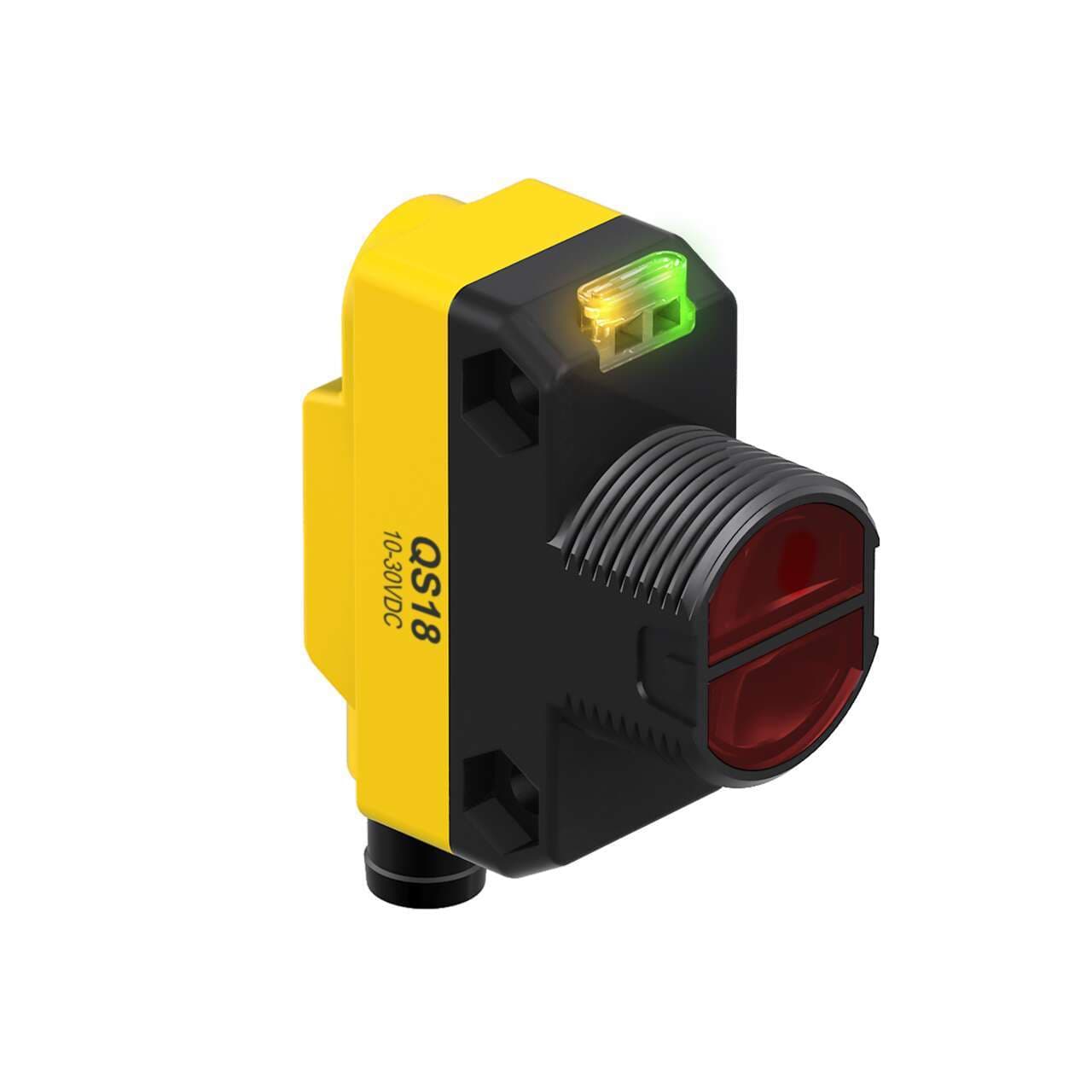

QS18VP6DQ7 Banner Proximity Sensors
Part#:QS18VP6DQ7
Alt. Part#:66438
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Diffuse; Range: 450 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; M8 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Main function Sensor (Photo-electric)
- Sensing distance 450mm
- Operating mode Light-ON Dark-ON
- Response time 0.6ms / 0.0006 s
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 66438
- Product series / family name WORLD-BEAM series
- Light Color Infrared (IR)
- Connection type Pre-equipped with 4-pin Pico-style M8 connector
- Ambient air temperature for operation -20...+70 °C
- Compliant with standard(s) cURus CE
- Sub-range name QS18 series
- Design diffuse mode
- Digital outputs 1 x digital output (PNP transistor)
- Primary brand Banner Engineering
- Functions Photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Thread size M18
- Material thermoplastic housing Acrylic lns.
- Connection Integral QD
- Repeatability (µs) 150
- Feature: Encapsulated No
- IO Link No
- Sensing Beam Infrared LED
- Special Feature: Water Detection No
- Power Supply/Supply Voltage 10-30 V dc
- Barrel Diameter (mm) 18
- Max Sensing Distance (mm) 450
- Primary Housing Material ABS
- Quick Disconnect Type M8 (Pico)
- Delay at Power-up (ms) 100
- Feature: Hazardous Area No
- Outputs PNP
- Operation Light/Dark Operate
- NEMA Rating NEMA 6
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- Number of Pins 4
- Indicator LEDs
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Lens Material Acrylic
- DeviceNet No
- Input/Output Discrete
- Output response time (ms) 0.6
- IP Rating IP67
- Feature: Audible No
- Sensing Mode (Detailed) Diffuse
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- Feature: Quick Disconnect Yes
- Power DC
- Special Feature: Remote Teach No
- Adjustments Potentiometer
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6DQ7 on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering QS18VP6DQ7 is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes with an M18 threaded mount for easy installation and is equipped with a 4-pin Pico-style M8 connector for connectivity. This sensor operates within an ambient air temperature range of -20 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. It belongs to the QS18 series and offers a sensing distance of up to 450mm with infrared light. The QS18VP6DQ7 provides a digital output (PNP transistor; complementary NO/NC) and supports both Light-ON and Dark-ON operating modes. It has a quick response time of 0.6ms and requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. This sensor is protected to IP67 NEMA 6 standards, making it suitable for various industrial environments.
