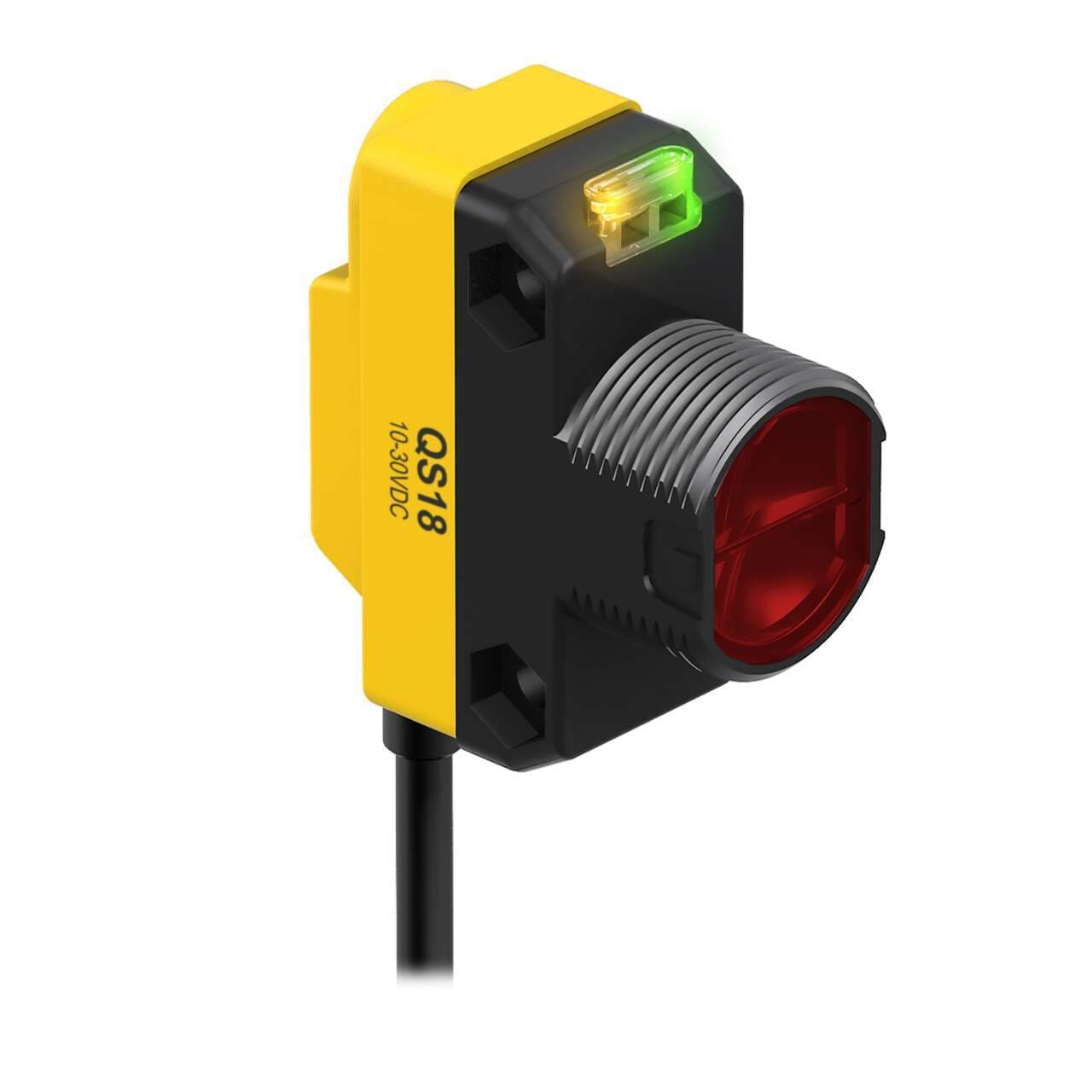

QS18VP6FF150Q5 Banner Proximity Sensors
Part#:QS18VP6FF150Q5
Alt. Part#:801160
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q18 Series: Fixed-Field; Range: 150 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 54.43104 g
- Country Of Origin CN
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- Sensing Beam Visible Red LED
- Quick Disconnect Type M12 (Euro)
- Number of Pins 4
- Feature: Encapsulated No
- Small Visible Spot LED
- Outputs PNP
- Special Feature: Water Detection No
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 100
- Lens Material Acrylic
- Adjustments N/A
- Feature: Audible No
- IO Link No
- IP Rating IP67
- Feature: Hazardous Area No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Housing Style Rectangular w/M18 Mount
- Max Op. Temp. (°C) 70
- Special Feature: Remote Teach No
- Indicator LEDs
- Max Sensing Distance (mm) 150
- Operation Light/Dark Operate
- Repeatability (µs) 160
- Feature: Timing (Hold/Delay) No
- Primary Housing Material ABS
- Connection Pigtail QD
- Sensing Beam Wavelength 632
- Barrel Diameter (mm) 18
- DeviceNet No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Quick Disconnect Yes
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power DC
- Output response time (ms) 0.85
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6FF150Q5 on Powermatic Associates is $119.00. Order now.
About the product

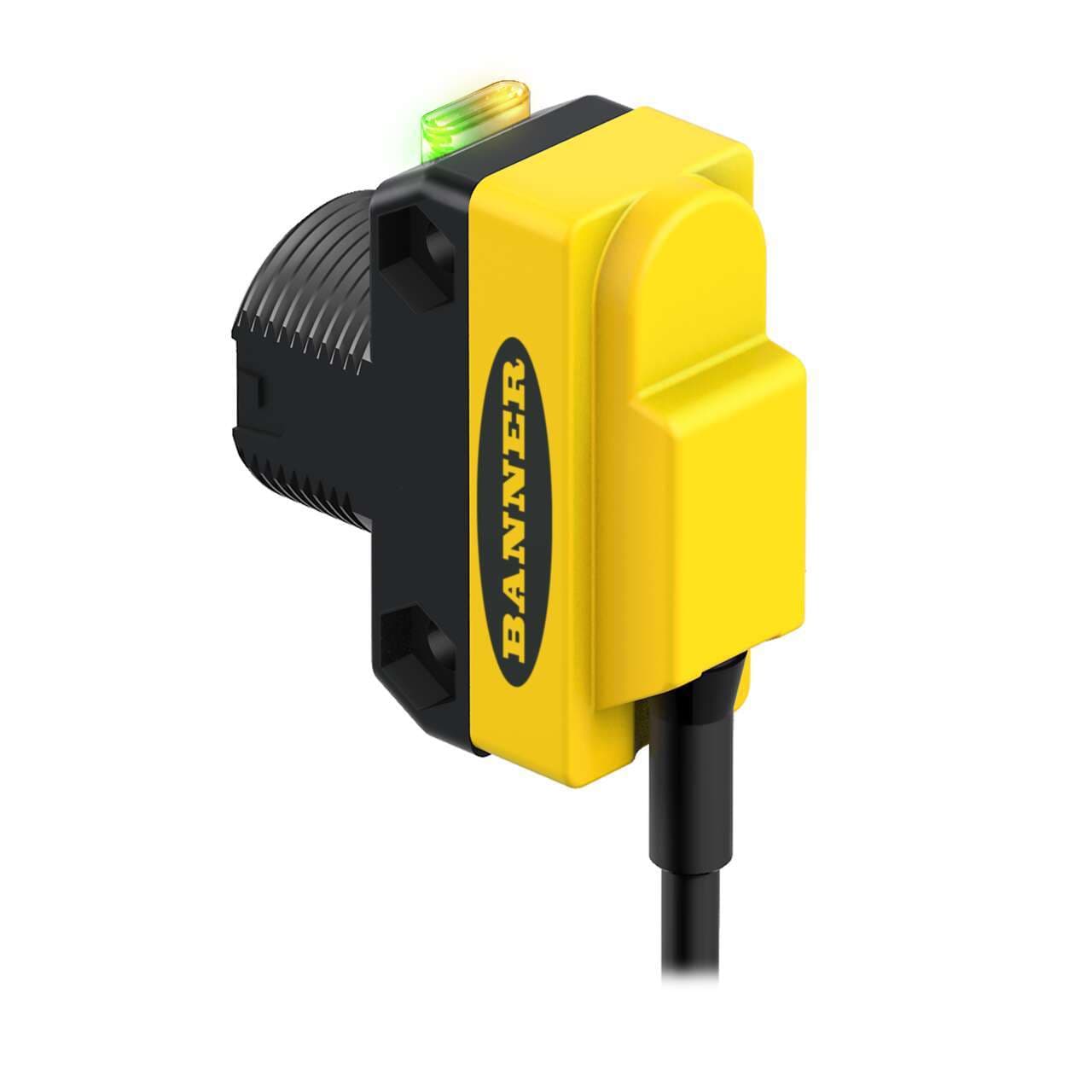

Banner Engineering QS18VP6FF150Q5 is a fixed-field photo-electric sensor designed with a background suppression system. It features an M18 threaded mount for installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is equipped with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector, aligning with the QS18 series specifications. It offers a degree of protection rated at IP67 NEMA 6 and requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal. The QS18VP6FF150Q5 has a rectangular shape, constructed from a thermoplastic housing with an acrylic lens, and is capable of sensing distances up to 150mm. It emits visible red light at a wavelength of 632 nm and supports both Light-ON and Dark-ON operating modes. Additionally, it features 1 x digital output (PNP transistor; complementary NO/NC) and boasts a response time of 0.85ms / 0.00085 s.
