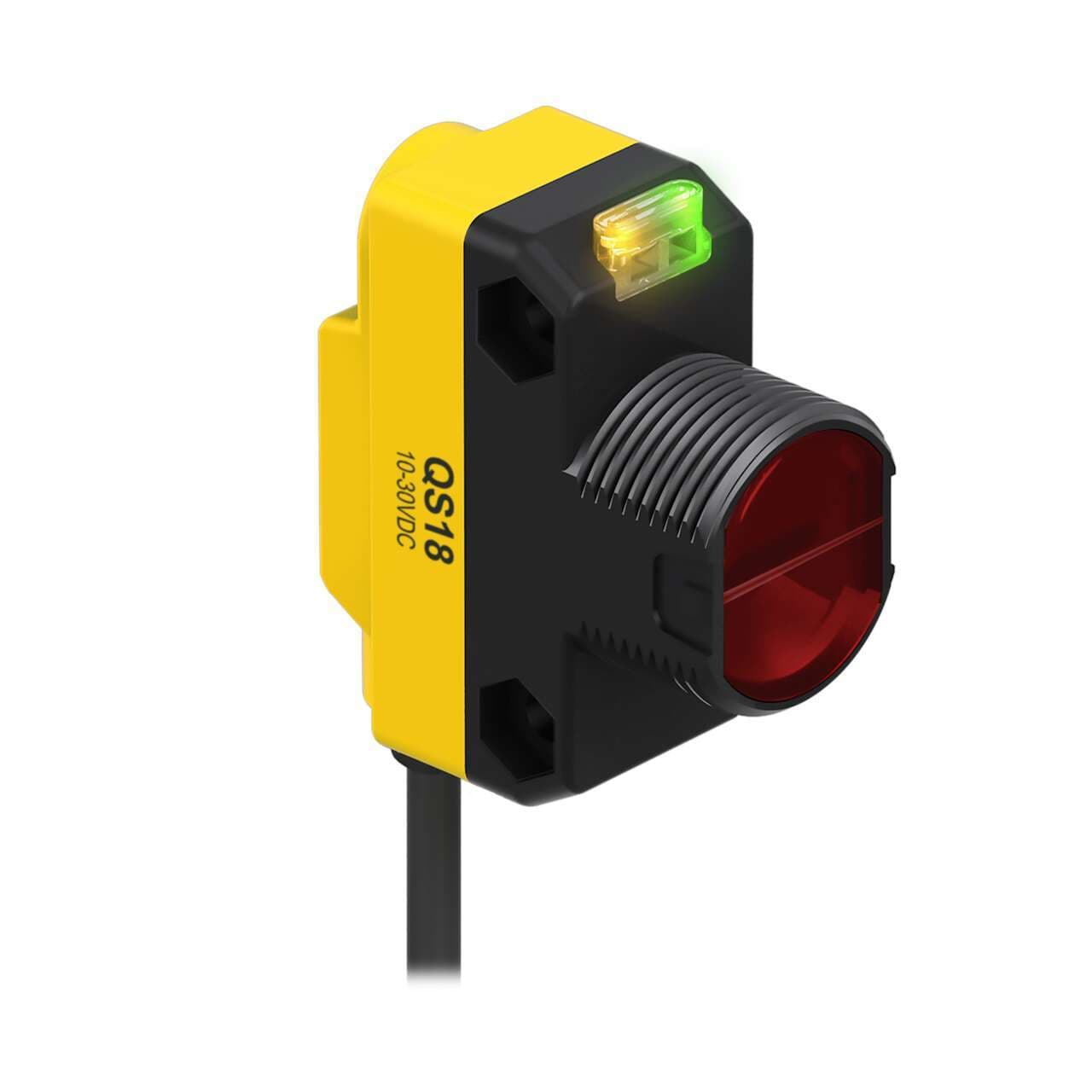

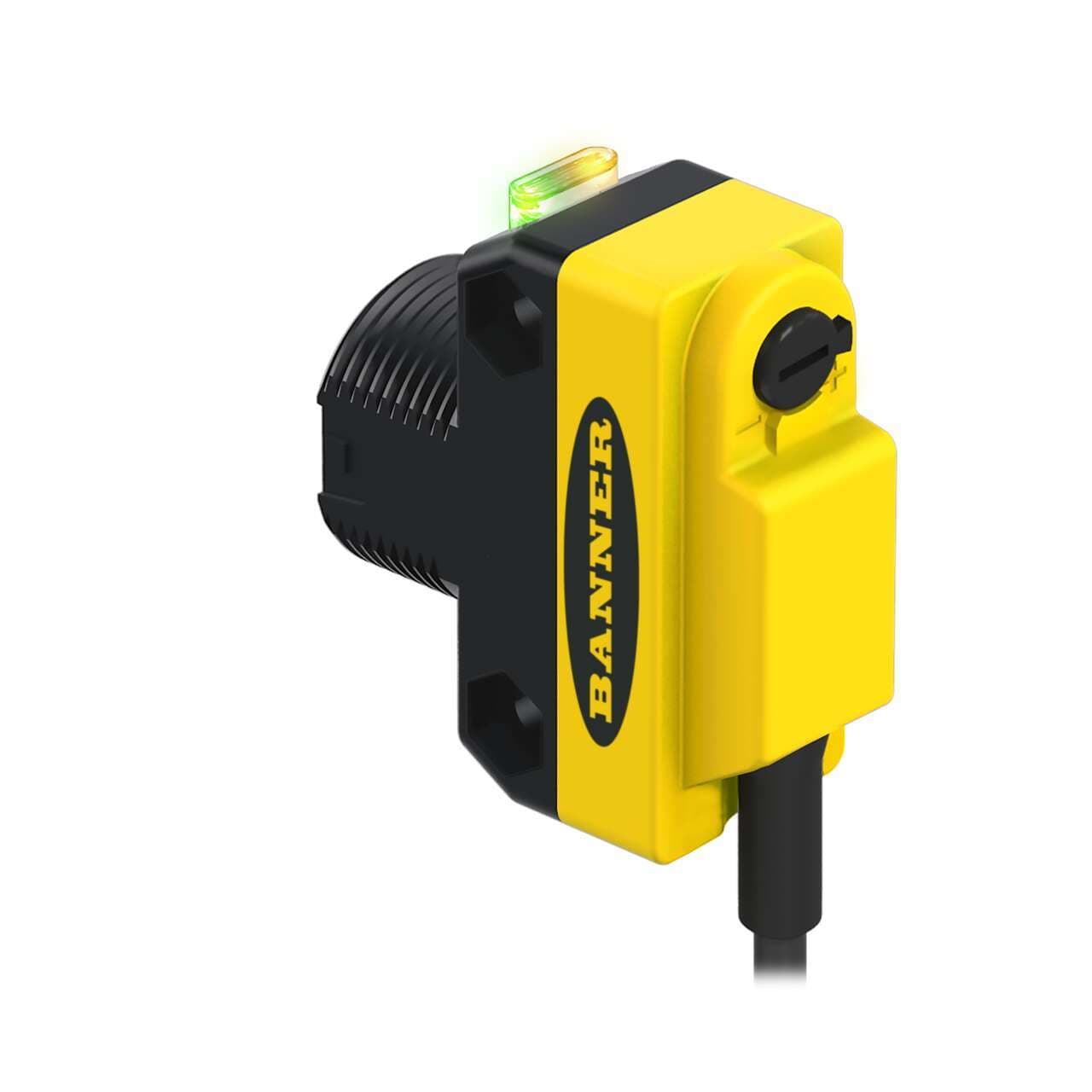

QS18VP6LLPQ5 Banner Proximity Sensors
Part#:QS18VP6LLPQ5
Alt. Part#:73244
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 LASER POLAR RETRO; Range: 0.1-10 m; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm M12 Pigtail QD
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Main function Sensor (Photo-electric)
- Functions Miniature polarized Class 1 Laser photo-electric sensor green LED (power ON) yellow LED (light sensed) potentiometer adjustment
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Sub-range name QS18LLP series
- Sensing distance 10cm...10m
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Ambient air temperature for operation -10...+50 °C
- Product series / family name WORLD-BEAM series
- Light Color Visible red
- Shape Rectangular
- Digital outputs 1 x digital output (PNP transistor)
- Compliant with standard(s) cURus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 650 nm
- Mounting mode Threaded mount
- Primary brand Banner Engineering
- Design retro-reflective mode
- Thread size M18
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 73244
- Input/Output Discrete
- Min Op. Temp. (°C) -10
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Sensing Mode (General) Retroreflective
- Power DC
- Output response time (ms) 0.7
- Operation Light/Dark Operate
- IP Rating IP67
- Housing Style Rectangular w/M18 Mount
- Small Visible Spot Laser
- Power Supply/Supply Voltage 10-30 V dc
- Indicator LEDs
- Sensing Beam Visible Red Laser
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 200
- Opposed Mode Emitter/Receiver N/A
- Laser Classification Class 1
- Max Sensing Distance (mm) 10000
- Sensing Beam Wavelength 650
- Barrel Diameter (mm) 18
- DeviceNet No
- Connection Pigtail QD
- Special Feature: Water Detection No
- Number of Pins 4
- Feature: Audible No
- Sensing Mode (Detailed) Polarized
- Primary Housing Material ABS
- Outputs PNP
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- Feature: Encapsulated No
- Feature: Hazardous Area No
- Repeatability (µs) 130
- Lens Material Acrylic
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Timing (Hold/Delay) No
- Max Op. Temp. (°C) 50
- Special Feature: Remote Teach No
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6LLPQ5 on Powermatic Associates is $194.00. Order now.
About the product
Banner Engineering QS18VP6LLPQ5 is a miniature polarized Class 1 laser photo-electric sensor designed for retro-reflective mode with potentiometer adjustment. It features an M18 threaded mount for secure installation and operates within an ambient air temperature range of -10 to +50 °C. This sensor is equipped with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector, falling under the QS18LLP series. It boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The QS18VP6LLPQ5 operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is housed in a rectangular, thermoplastic body with an acrylic lens. It offers a sensing distance of 10cm to 10m and emits a visible red light at a wavelength of 650 nm. This sensor supports Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor; complementary NO/NC) for versatile application use.
