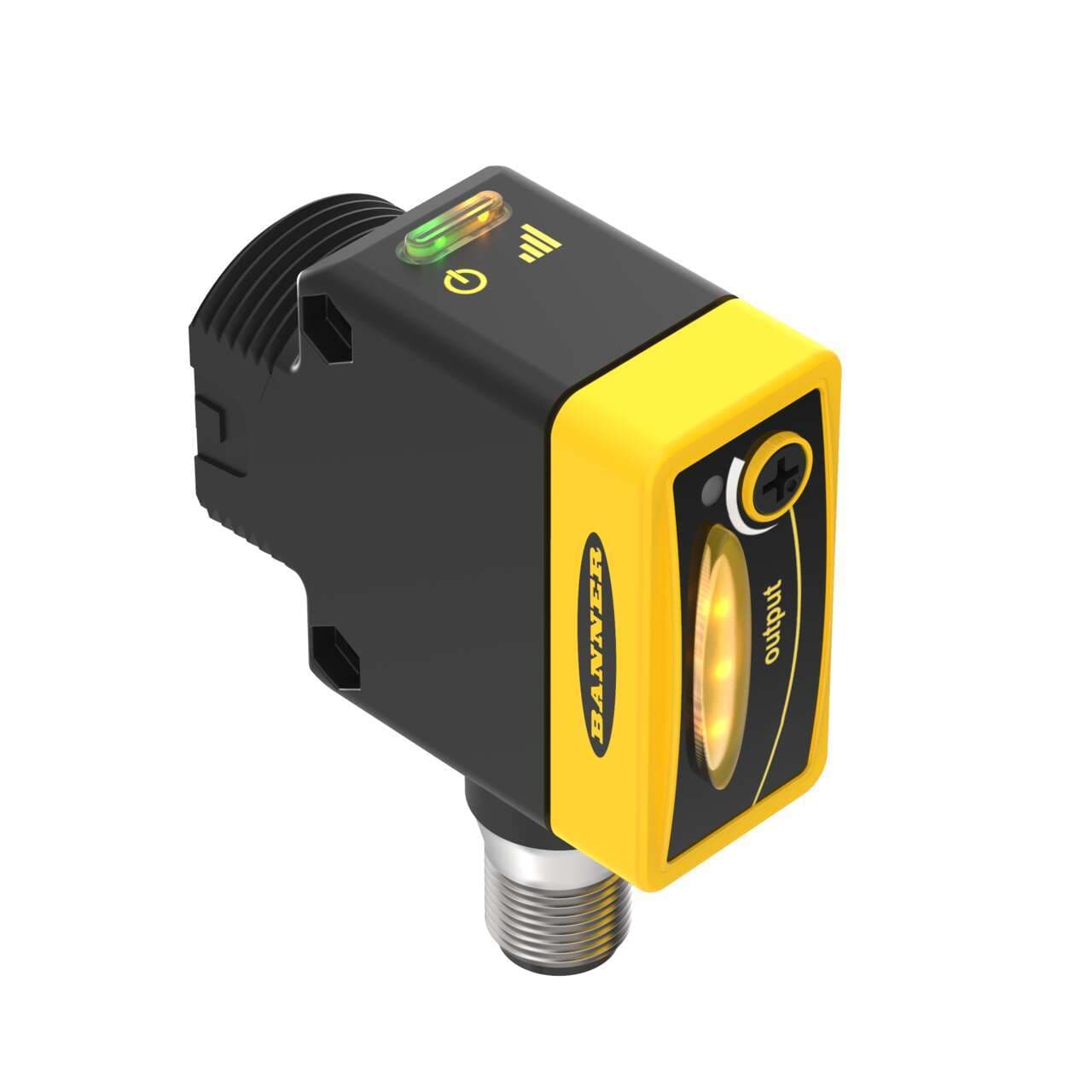

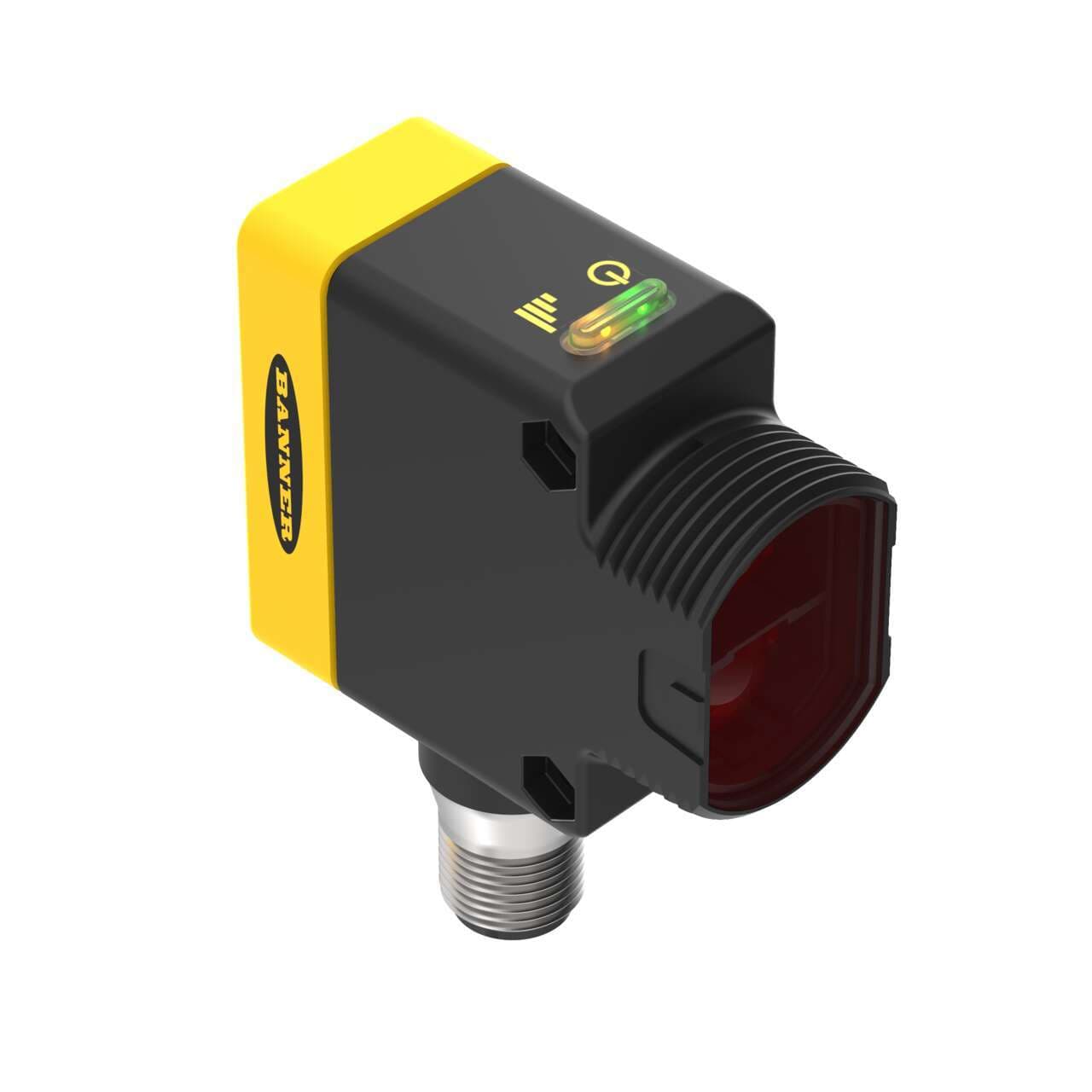

QS30AF600Q Banner Proximity Sensors
Part#:QS30AF600Q
Alt. Part#:11980
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS30 Series: Adjustable-Field; Range: 50 - 600 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
Product Details
- Weight 104.32616 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Primary brand Banner Engineering
- Design background suppression system
- Thread size M30
- Product series / family name WORLD-BEAM series
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Degree of protection IP67 NEMA 6
- Order code / Manufacturer SKU 11980
- Functions Adjustable-field photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment
- Shape Rectangular
- Mounting mode Threaded mount
- Sub-range name QS30AF Series
- Sensing distance 600mm
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Material thermoplastic housing Acrylic lns.
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 660 nm
- Response time 5ms / 0.005 s
- Ambient air temperature for operation -20...+60 °C
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Compliant with standard(s) cURus CE
- Sensing Beam Wavelength 660
- Indicator LEDs
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Visible Red LED
- Input/Output Discrete
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Sensing Mode (General) Proximity
- Quick Disconnect Type M12 (Euro)
- IP Rating IP67
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 600
- Special Feature: Remote Teach No
- Number of Pins 5
- Feature: Audible No
- Adjustments Mechanical Screw
- IO Link No
- Special Feature: Intrinsically Safe No
- Power DC
- Delay at Power-up (ms) 200
- Opposed Mode Emitter/Receiver N/A
- Connection Integral QD
- Min Op. Temp. (°C) -20
- Repeatability (µs) 750
- Feature: Timing (Hold/Delay) Yes
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Outputs Bipolar (NPN & PNP)
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 95% @ 50°C
- Housing Style Rectangular w/M30 Mount
- Output response time (ms) 5
- Lens Material Acrylic
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 60
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Feature: Encapsulated No
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30AF600Q on Powermatic Associates is $225.00. Order now.
About the product
Banner Engineering QS30AF600Q is an adjustable-field photo-electric sensor designed for precise sensing applications. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +60°C. This sensor is equipped with a background suppression system that can be adjusted via a screw, ensuring accurate detection by ignoring background objects beyond the set distance. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy connection. Part of the QS30AF series, it boasts an IP67 NEMA 6 degree of protection, making it suitable for harsh environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring durability. The QS30AF600Q can detect objects within a sensing distance of 50 to 600mm using visible red light at a wavelength of 660 nm. It offers both Light-ON and Dark-ON operating modes for versatile application and includes 1 x digital output (PNP/NPN transistor) with a rapid response time of 5ms / 0.005 s.
