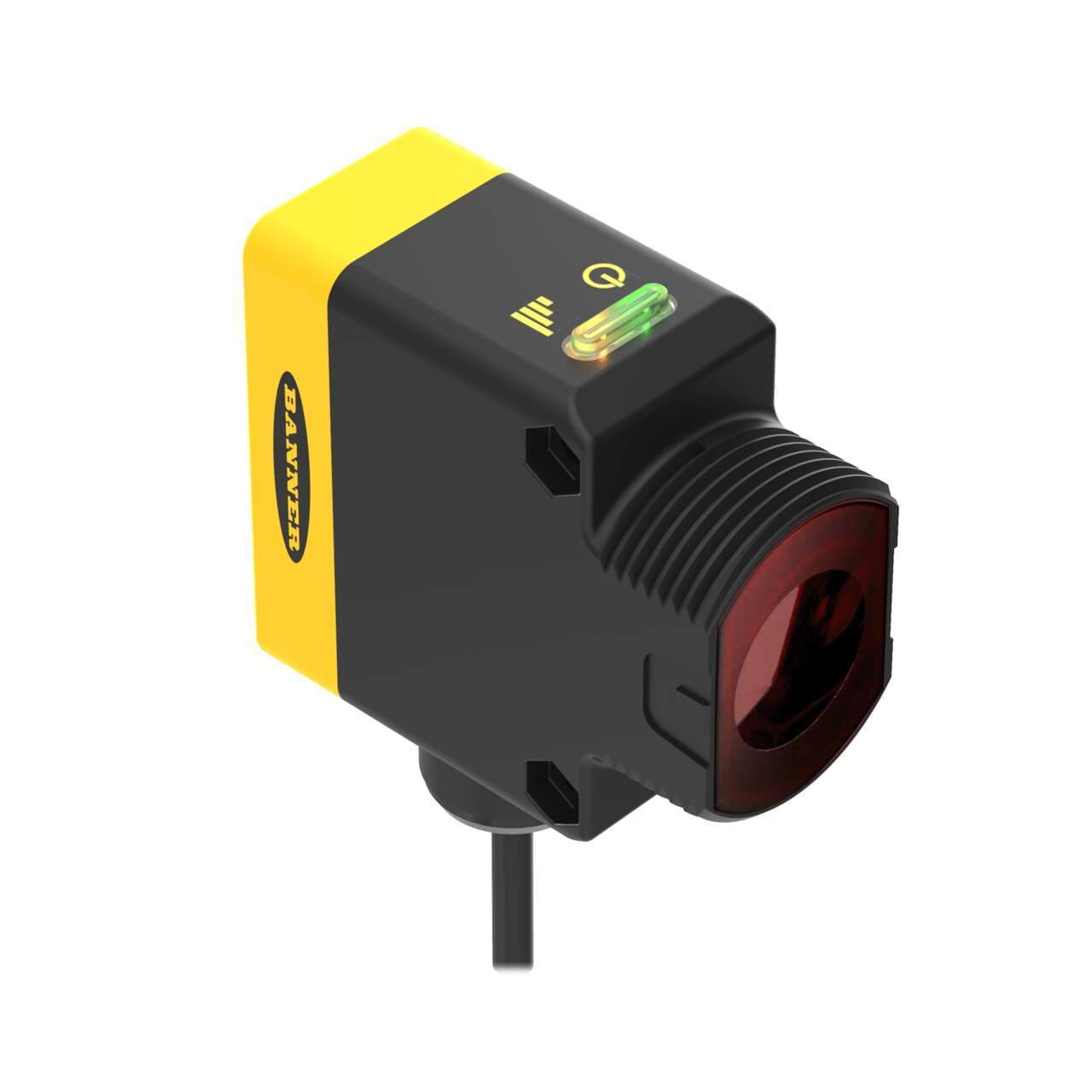

QS30ARH2O W/30 Banner Proximity Sensors
Part#:QS30ARH2O W/30
Alt. Part#:79168
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS30 Series: H2O Receiver; Range: 2 m; Input: 10-30 V dc; Output: LO; Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) Cable
Product Details
- Weight 139.706336 g
- Country Of Origin US
- Primary Housing Material Thermoplastic
- Special Feature: Remote Teach No
- NEMA Rating NEMA PW12
- Opposed Mode Emitter/Receiver Receiver
- DeviceNet No
- Cable Length (m) 9
- Input/Output Discrete
- Max Sensing Distance (mm) 2000
- Special Feature: Intrinsically Safe No
- Indicator LEDs
- Power DC
- Housing Style Rectangular w/M30 Mount
- Operation Light Operate
- Number of Pins 5
- Feature: Encapsulated No
- Sensing Beam Long Infrared (Water Detection)
- Delay at Power-up (ms) 100
- Adjustments N/A
- Feature: Hazardous Area No
- Outputs Bipolar (NPN & PNP)
- Quick Disconnect Type No QD
- Repeatability (µs) 500
- Barrel Diameter (mm) 30
- IO Link No
- Sensing Mode (Detailed) Receiver
- Max Op. Temp. (°C) 60
- Special Feature: Water Detection Yes
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Sensing Mode (General) Opposed
- Power Supply/Supply Voltage 10-30 V dc
- Output response time (ms) 1
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Connection Cable
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30ARH2O W/30 on Powermatic Associates is $305.00. Order now.
About the product
Banner Engineering QS30ARH2O W/30 is a photo-electric sensor designed for water detection applications, featuring a through-beam system in an opposed mode configuration. This sensor is equipped with a pre-wired 30ft / 9m cable that terminates with bare end flying leads, facilitating easy installation. It operates within an ambient air temperature range of -20 to +60 °C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The QS30ARH2O W/30, part of the QS30H2O series, offers a sensing distance of 2m and utilizes infrared light for detection. It supports a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. This model is designed with a rectangular shape and an M30 threaded mount for secure attachment. It provides one digital output (PNP/NPN transistor) and boasts a rapid response time of 1ms. The sensor is protected to IP67 NEMA PW12 standards, making it suitable for challenging environments.
