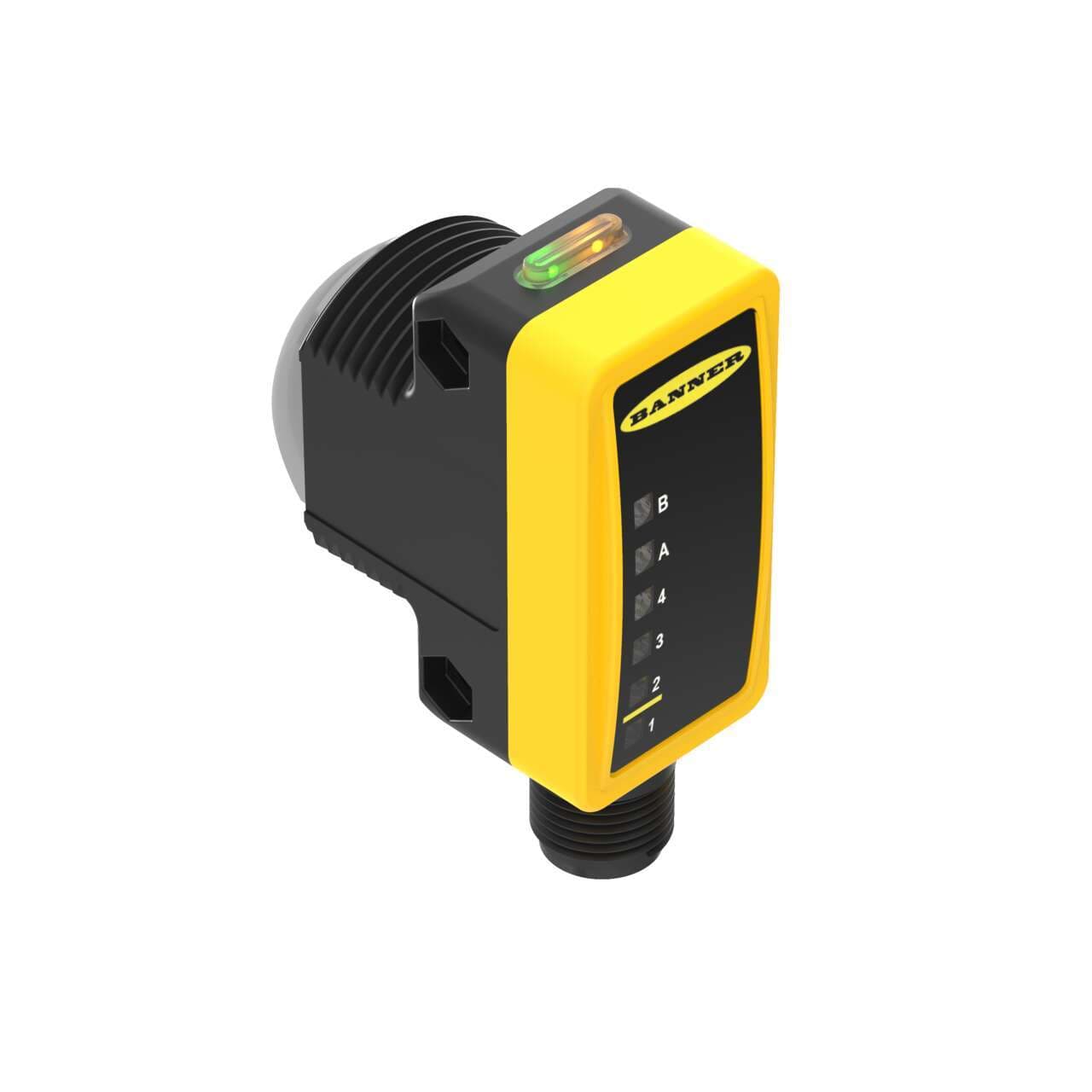

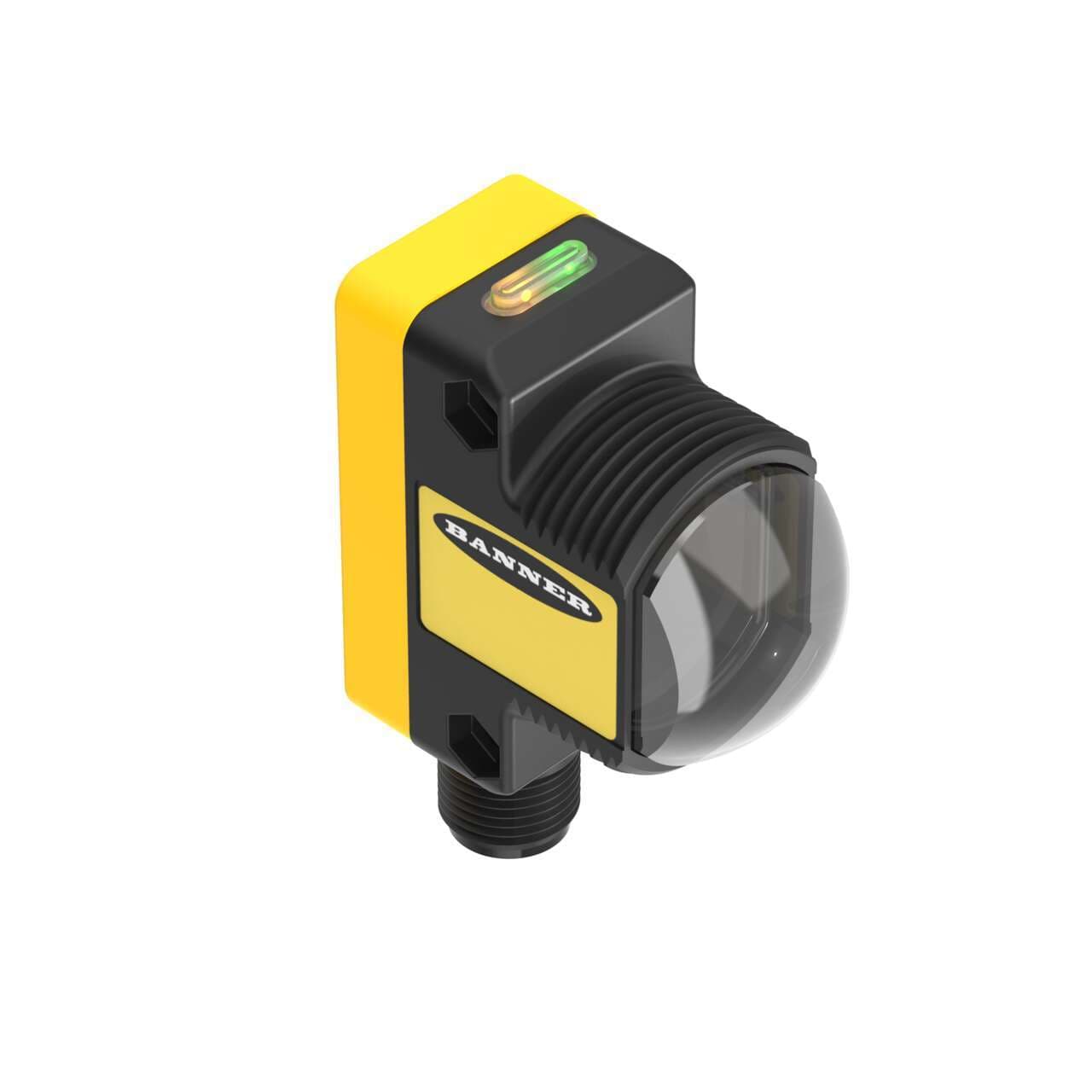

QS30ARXQ Banner Proximity Sensors
Part#:QS30ARXQ
Alt. Part#:71562
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS30 Series: High-Powered Receiver; Range: 213 m; Input: 10-30 V dc; Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD (CAR WASH)
Product Details
- Weight 81.64656 g
- Country Of Origin US
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
- Main function Sensor (Photo-electric)
- Shape Rectangular
- Response time 5ms / 0.005 s
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Design through-beam system / opposed mode
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Compliant with standard(s) cULus CE
- Product series / family name WORLD-BEAM series
- Sensing distance 213m
- Mounting mode Threaded mount
- Material thermoplastic housing Zeonex lns.
- Sub-range name QS30 high-powered receivers series
- Wavelength 875 nm
- Operating mode Light-ON
- Ambient air temperature for operation -20...+70 °C
- Thread size M30
- Light Color Infrared (IR)
- Degree of protection IP69K NEMA 6
- Order code / Manufacturer SKU 71562
- Sensing Beam Infrared LED
- IP Rating IP69
- Feature: Encapsulated Yes
- NEMA Rating NEMA 6
- Feature: Timing (Hold/Delay) No
- Outputs Bipolar (NPN & PNP)
- Connection Integral QD
- Special Feature: Intrinsically Safe No
- Power DC
- Output response time (ms) 5
- Number of Pins 5
- Feature: Washdown Rated Yes
- Sensing Mode (General) Opposed
- Sensing Beam Wavelength 875
- Indicator Bargraph
- DeviceNet No
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 213000
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 30
- IO Link No
- Housing Style Rectangular w/M30 Mount
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Chemical Resistant No
- Input/Output Discrete
- Min Op. Temp. (°C) -20
- Repeatability (µs) 5000
- Opposed Mode Emitter/Receiver Receiver
- Primary Housing Material Thermoplastic
- Quick Disconnect Type M12 (Euro)
- Special Feature: Water Detection No
- Lens Material Zeonex
- Feature: Audible No
- Sensing Mode (Detailed) Receiver
- Operation Light Operate
- Max Op. Relative Humidity [%] 95% @ 50°C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30ARXQ on Powermatic Associates is $174.00. Order now.
About the product
Banner Engineering QS30ARXQ is a photo-electric sensor designed for through-beam system applications, functioning as a receiver within the QS30 high-powered receivers series. This sensor features a M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. It is equipped with a 5-pin Euro-style M12 connector for straightforward connection. The QS30ARXQ boasts a robust thermoplastic housing made from Cyclo Olefin Polymers (COP), ensuring durability. It offers a high degree of protection rated at IP69K NEMA 6, suitable for demanding environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is designed for efficient space utilization. With a sensing distance of up to 213 meters and utilizing infrared light with a wavelength of 875 nm, this sensor ensures accurate detection. It operates in Light-ON mode and includes one digital output (PNP/NPN transistor) with a rapid response time of 5ms or 0.005 seconds.
