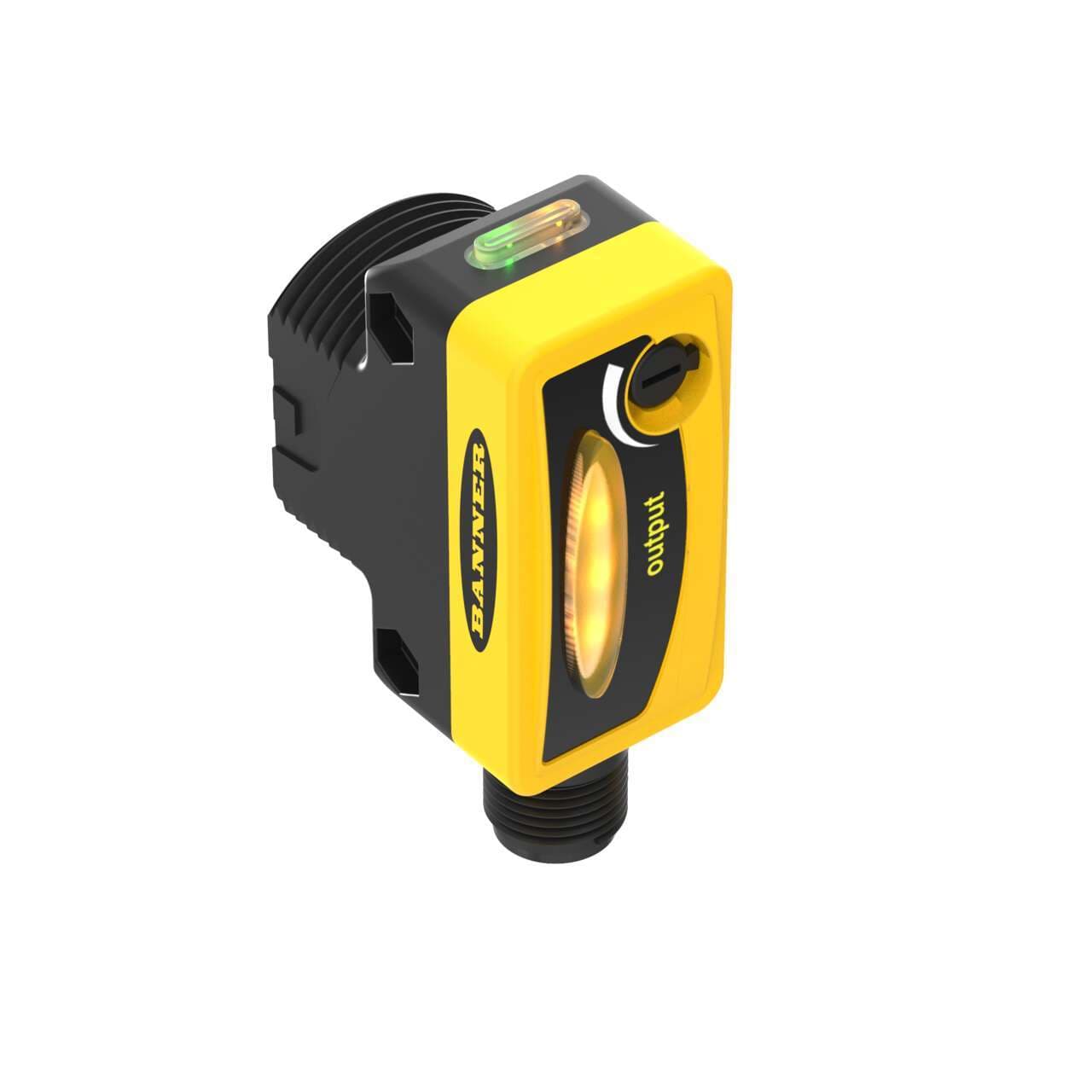

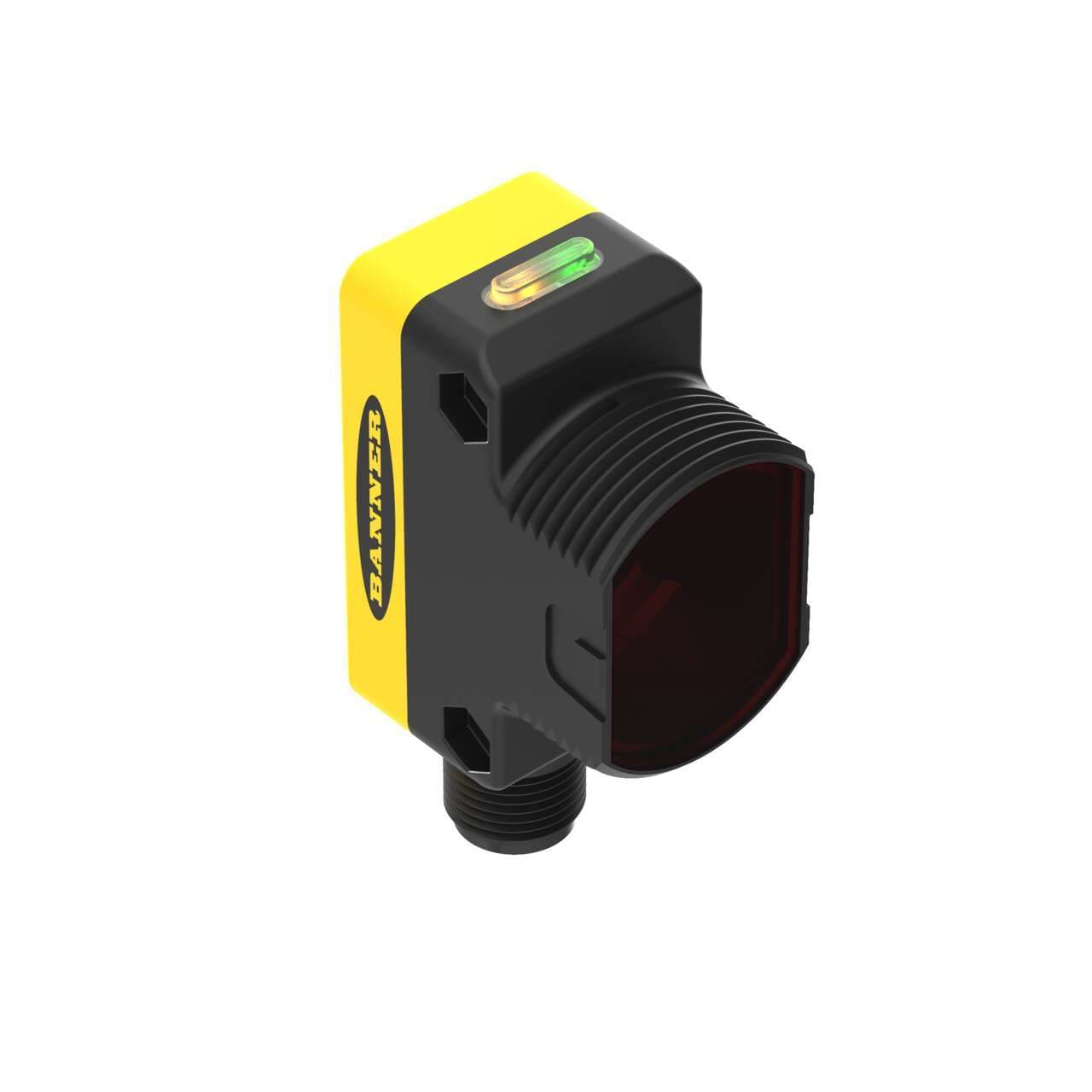

QS30DQ Banner Proximity Sensors
Part#:QS30DQ
Alt. Part#:73095
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS30 Series: Diffuse; Range: 1.0 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
Product Details
- Weight 45.3592 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Thread size M30
- Primary brand Banner Engineering
- Functions Photo-electric sensor green LED (power ON) yellow LED (output state) potentiometer adjustment
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing Acrylic lns.
- Sub-range name QS30 DC voltage series
- Design diffuse mode
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6
- Product series / family name WORLD-BEAM series
- Sensing distance 1m
- Light Color Infrared (IR)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Response time 2ms / 0.002 s
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Ambient air temperature for operation -20...+70 °C
- Order code / Manufacturer SKU 73095
- Compliant with standard(s) CE
- Sensing Beam Infrared LED
- Sensing Mode (General) Proximity
- Power DC
- Max Sensing Distance (mm) 1000
- Outputs Bipolar (NPN & PNP)
- Max Op. Temp. (°C) 70
- Operation Light/Dark Operate
- Output response time (ms) 2
- Special Feature: Water Detection No
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- IP Rating IP67
- Adjustments Potentiometer
- Max Op. Relative Humidity [%] 95% @ 55°C
- Indicator LEDs
- Lens Material Acrylic
- Opposed Mode Emitter/Receiver N/A
- Feature: Encapsulated No
- Feature: Timing (Hold/Delay) No
- DeviceNet No
- Sensing Mode (Detailed) Diffuse
- Min Op. Temp. (°C) -20
- Repeatability (µs) 500
- Feature: Chemical Resistant No
- Housing Style Rectangular w/M30 Mount
- Connection Integral QD
- Number of Pins 5
- Feature: Hazardous Area No
- Input/Output Discrete
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 30
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30DQ on Powermatic Associates is $110.00. Order now.
About the product
Banner Engineering QS30DQ is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes in a rectangular shape with a thermoplastic housing and an acrylic lens, suitable for M30 threaded mount installations. This sensor operates within an ambient air temperature range of -20 to +70°C and is equipped with a 5-pin Euro-style M12 connector for connectivity. Part of the QS30 DC voltage series, it offers a sensing distance of 1m and utilizes infrared light, with the capability to operate in both Light-ON and Dark-ON modes. The QS30DQ provides a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. It supports a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and features a digital output (PNP/NPN transistor) with a rapid response time of 2ms / 0.002 s.
