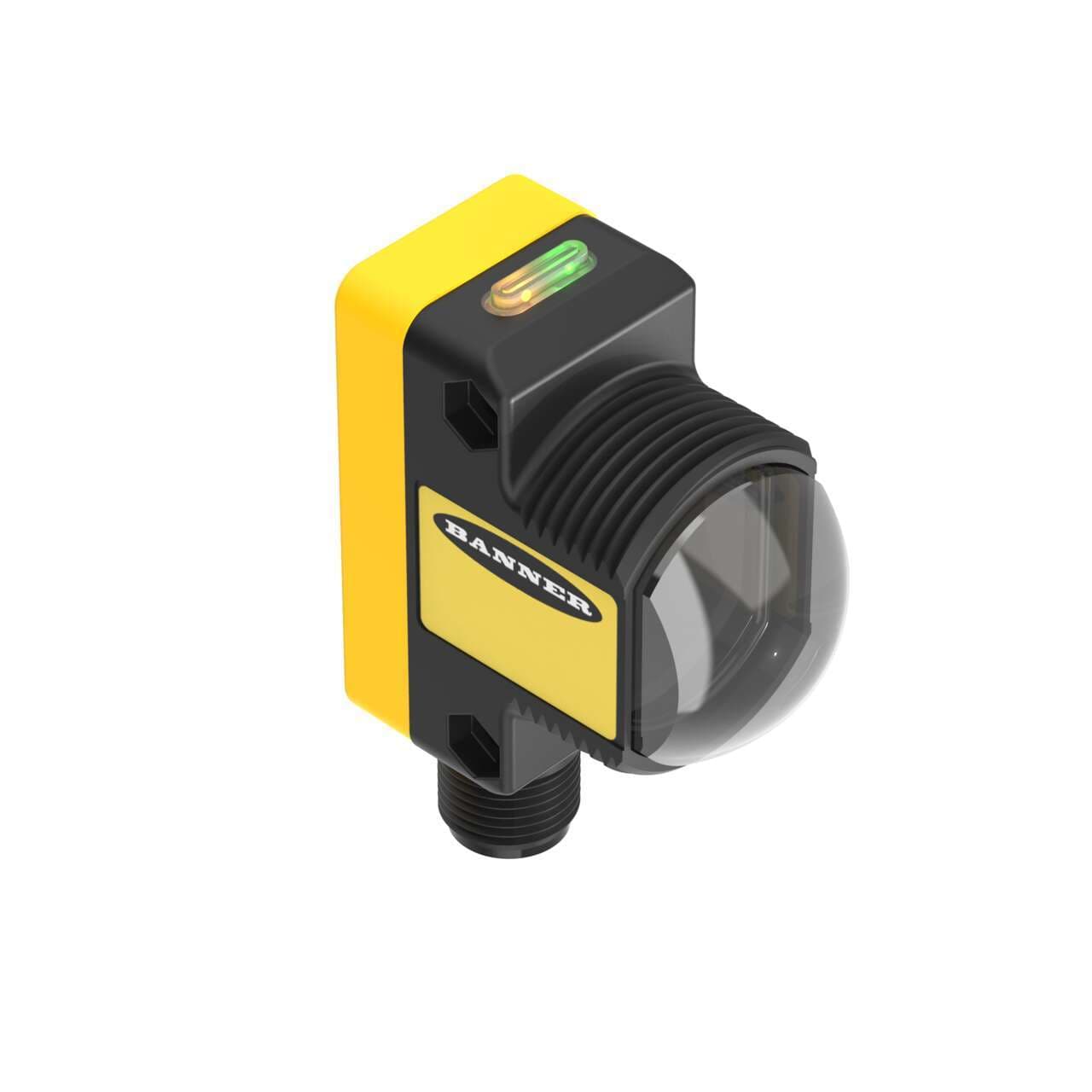

QS30EXQ Banner Proximity Sensors
Part#:QS30EXQ
Alt. Part#:71561
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS30 Series: High-Powered Emitter; Range: 213 m; Input: 10-30 V dc; Output: Not Applicable; 5-pin M12 QD (CAR WASH)
Product Details
- Weight 81.64656 g
- Country Of Origin US
- Light Color Infrared (IR)
- Mounting mode Threaded mount
- Compliant with standard(s) cULus CE
- Sub-range name QS30 high-powered receivers series
- Shape Rectangular
- Response time 30ms / 0.03 s
- Order code / Manufacturer SKU 71561
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Ambient air temperature for operation -20...+60 °C
- Product series / family name WORLD-BEAM series
- Functions Photo-electric emitter green LED (power ON) yellow LED (output state)
- Wavelength 875 nm
- Material thermoplastic housing Zeonex lns.
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M30
- Degree of protection IP69K NEMA 6
- Housing Style Rectangular w/M30 Mount
- Output response time (ms) 30
- Adjustments N/A
- Feature: Audible No
- Connection Integral QD
- Sensing Beam Wavelength 875
- Opposed Mode Emitter/Receiver Emitter
- Min Op. Temp. (°C) -20
- Power DC
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 30
- Quick Disconnect Type M12 (Euro)
- Sensing Mode (General) Opposed
- Lens Material Zeonex
- Feature: Hazardous Area No
- Operation N/A
- Feature: Washdown Rated Yes
- Number of Pins 5
- Max Sensing Distance (mm) 213000
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Infrared LED
- Repeatability (µs) 5000
- Feature: Encapsulated Yes
- Sensing Mode (Detailed) Emitter
- Max Op. Temp. (°C) 60
- IP Rating IP69
- Feature: Timing (Hold/Delay) No
- Outputs N/A
- Special Feature: Water Detection No
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30EXQ on Powermatic Associates is $173.00. Order now.
About the product
Banner Engineering QS30EXQ is a photo-electric sensor designed for through-beam system applications, functioning as an emitter within the QS30 high-powered receivers series. This sensor features a M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +60°C. It is equipped with a 5-pin Euro-style M12 connector for straightforward connection. The QS30EXQ offers a high degree of protection with an IP69K NEMA 6 rating, ensuring durability in demanding environments. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The sensor's rectangular shape is constructed from thermoplastic housing and Cyclo Olefin Polymers (COP) lens, supporting a sensing distance of up to 213 meters. It utilizes infrared light with a wavelength of 875 nm and boasts a rapid response time of 30ms.
