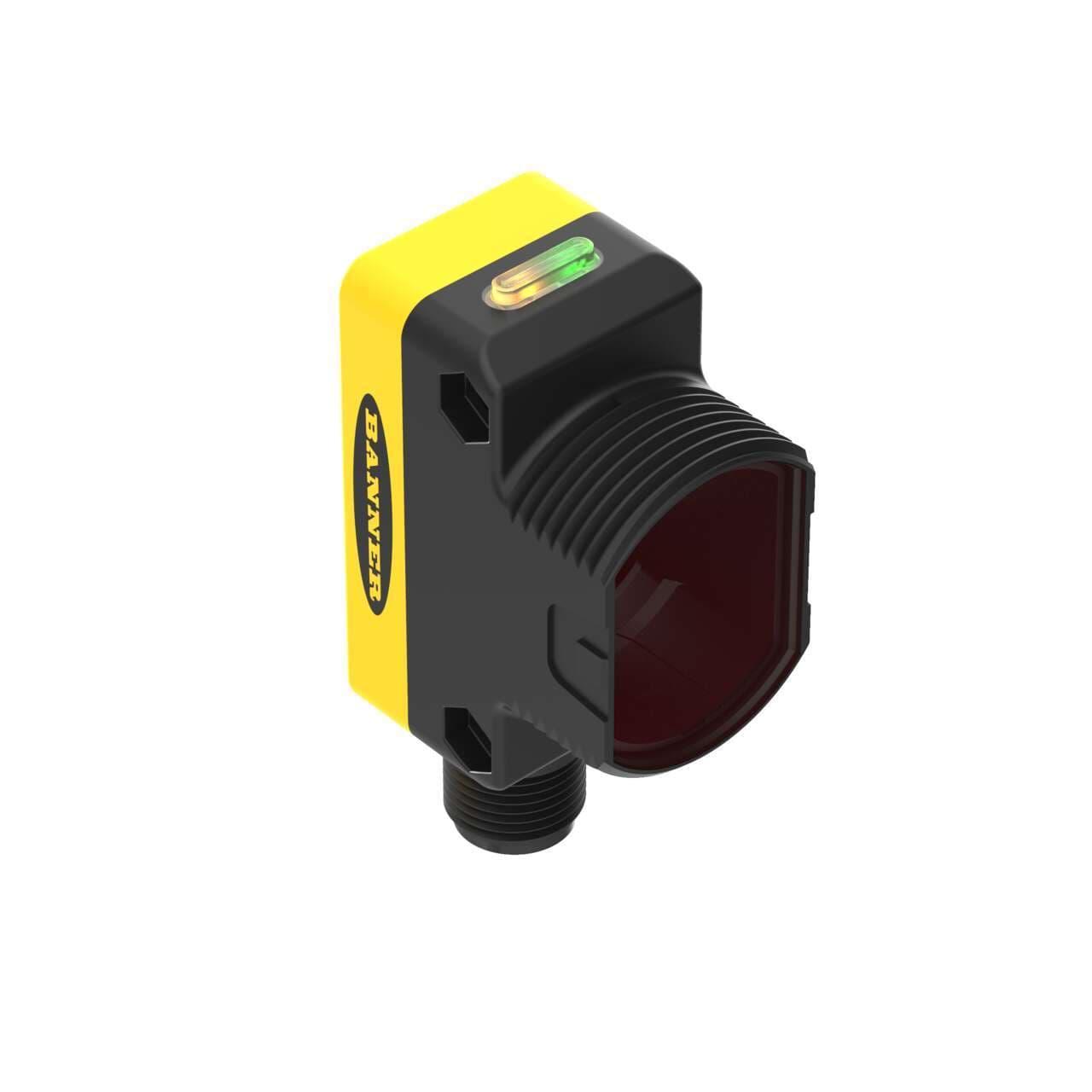

QS30FF400Q Banner Proximity Sensors

Name: QS30FF400Q
Brand: Banner
Price: 119 USD
Availability: BackOrder

Part#:QS30FF400Q

Alt. Part#:73089

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS30 Series: Fixed-Field; Range: 400 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD

Product Details

Weight
54.43104 g
Country Of Origin
US
Max Sensing Distance (mm)
400
Output response time (ms)
2
Lens Material
Acrylic
Feature: Chemical Resistant
No
Input/Output
Discrete
Max Op. Temp. (°C)
70
Number of Pins
5
Feature: Audible
No
Primary Housing Material
Thermoplastic
Special Feature: Intrinsically Safe
No
Max Op. Relative Humidity [%]
95% @ 50°C
IO Link
No
Sensing Mode (Detailed)
Background Suppression (Fixed)
Operation
Light/Dark Operate
IP Rating
IP67
Housing Style
Rectangular w/M30 Mount
Quick Disconnect Type
M12 (Euro)
Repeatability (µs)
500

Feature: Timing (Hold/Delay)

Power

Power Supply/Supply Voltage

10-30 V dc

Delay at Power-up (ms)

100

Opposed Mode Emitter/Receiver

N/A

Sensing Mode (General)

Proximity

Min Op. Temp. (°C)

-20

NEMA Rating

NEMA 6

Connection

Integral QD

Sensing Beam Wavelength

680

Indicator

LEDs

Outputs

Bipolar (NPN & PNP)

Special Feature: Remote Teach

Adjustments

N/A

DeviceNet

Sensing Beam

Visible Red LED

Special Feature: Water Detection

Barrel Diameter (mm)

Feature: Encapsulated

Feature: Hazardous Area

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS30FF400Q on Powermatic Associates is $119.00. Order now.

About the product

Banner Engineering QS30FF400Q is a fixed-field photo-electric sensor designed for precise sensing tasks. It features an M30 threaded mount for secure installation and operates within an ambient air temperature range of -20 to +70°C. This sensor is equipped with a background suppression system and comes pre-equipped with a 5-pin Euro-style M12 connector for easy connection. Part of the QS30 DC voltage series, it offers a degree of protection rated at IP67 NEMA 6, ensuring durability in various environments. The QS30FF400Q operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, and it has a sensing distance of 400mm. The sensor emits visible red light and supports both Light-ON and Dark-ON operating modes. It features 1 x digital output (PNP/NPN transistor) and boasts a quick response time of 2ms / 0.002 s.
