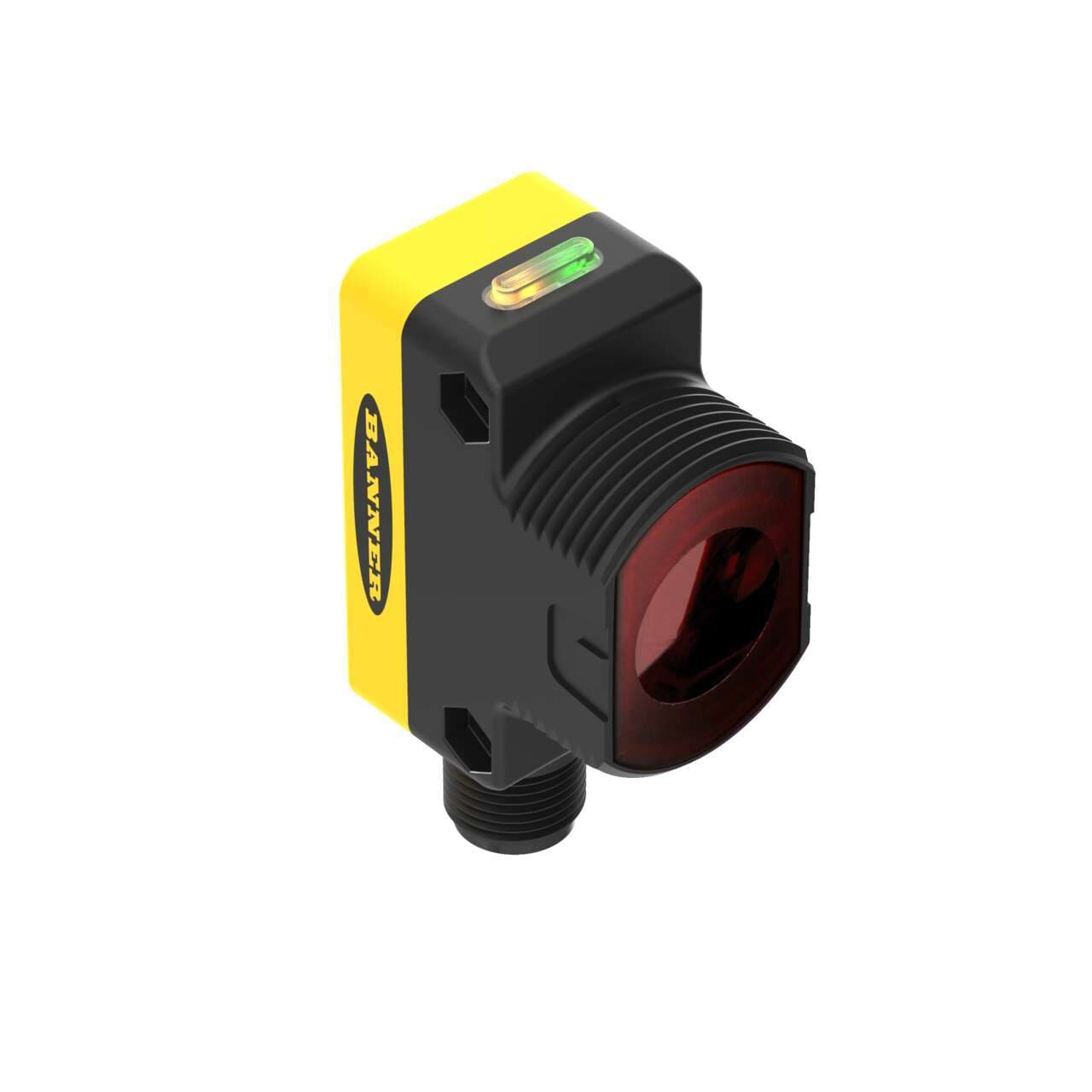

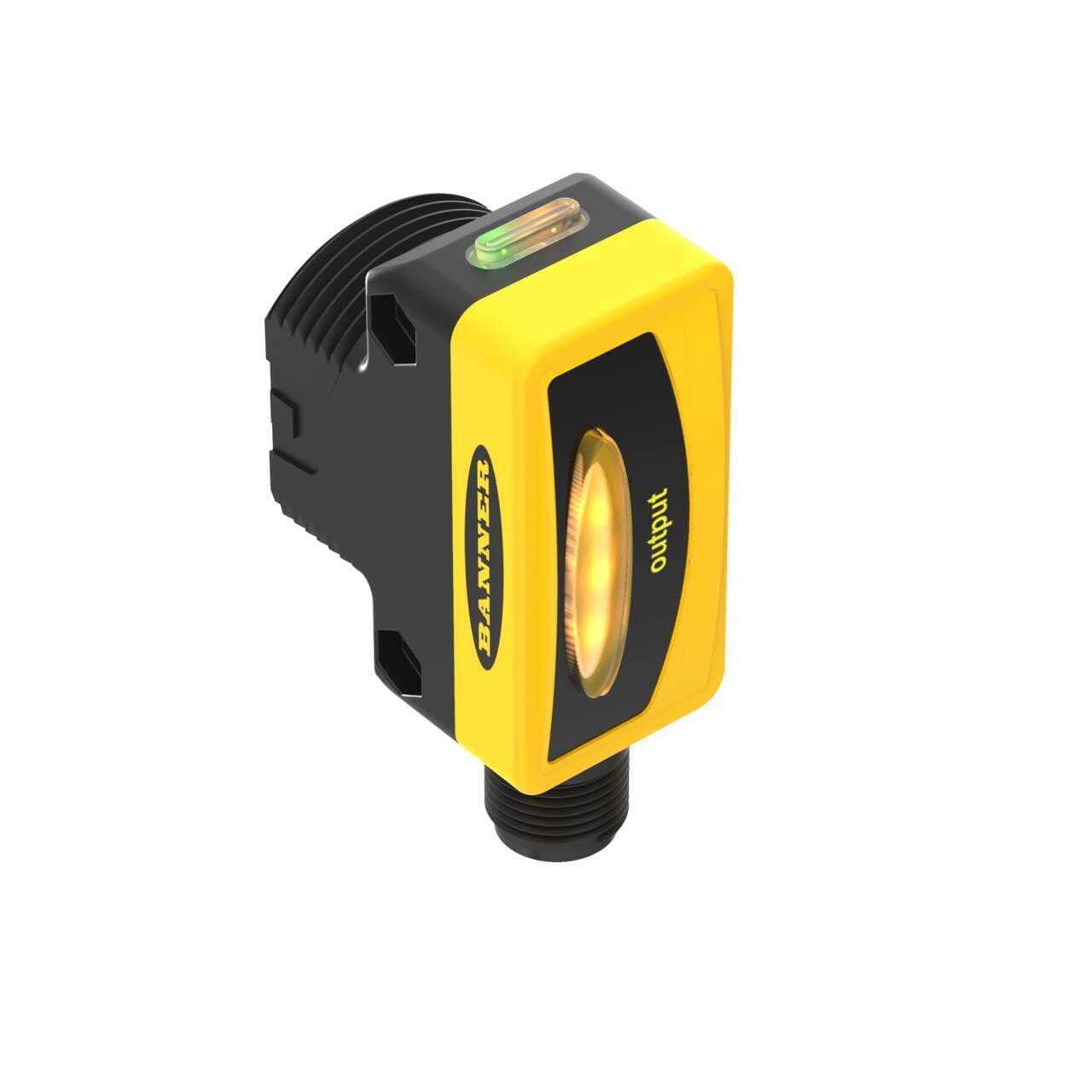

QS30RQ Banner Proximity Sensors

Product Details

• Weight
  54.43104 g
• Country Of Origin
  US
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Shape
  Rectangular
• Digital outputs
  1 x digital output (PNP/NPN transistor)
• Degree of protection
  IP67 NEMA 6
• Product series / family name
  WORLD-BEAM series
• Light Color
  Infrared (IR)
• Primary brand
  Banner Engineering
• Functions
  Photo-electric sensor receiver green LED (power ON) yellow LED (output state)
• Thread size
  M30
• Response time
  5ms / 0.005 s
• Main function
  Sensor (Photo-electric)
• Design
  through-beam system / opposed mode
• Operating mode
  Light-ON Dark-ON
• Ambient air temperature for operation
  -20...+70 °C
• Sub-range name
  QS30 DC voltage series
• Sensing distance
  60m
• Mounting mode
  Threaded mount
• Material
  thermoplastic housing Acrylic lns.
Order code / Manufacturer SKU
73079
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Compliant with standard(s)
cURus CE
Feature: Hazardous Area
No
Max Sensing Distance (mm)
60000
Power Supply/Supply Voltage
10-30 V dc
Special Feature: Water Detection
No
Barrel Diameter (mm)
30
Primary Housing Material
Thermoplastic
Min Op. Temp. (°C)
-20
Special Feature: Remote Teach
No
NEMA Rating
NEMA 6
Sensing Mode (Detailed)
Receiver
Quick Disconnect Type
M12 (Euro)
Repeatability (µs)
N/A
Feature: Timing (Hold/Delay)
No
Sensing Mode (General)
Opposed
Operation
Light/Dark Operate
Number of Pins
5
Indicator
LEDs
Sensing Beam
Infrared LED
Special Feature: Intrinsically Safe
No
Max Op. Relative Humidity [%]
95% @ 50°C
Feature: Audible
No
Housing Style
Rectangular w/M30 Mount
Power
DC
Connection
Integral QD
Delay at Power-up (ms)
100
Opposed Mode Emitter/Receiver
Receiver
DeviceNet
No
Input/Output
Discrete
Max Op. Temp. (°C)
70
Lens Material
Acrylic
Feature: Encapsulated
No
Outputs
Bipolar (NPN & PNP)
Output response time (ms)
5
IP Rating
IP67
Adjustments
N/A
IO Link
No
Feature: Chemical Resistant
No
