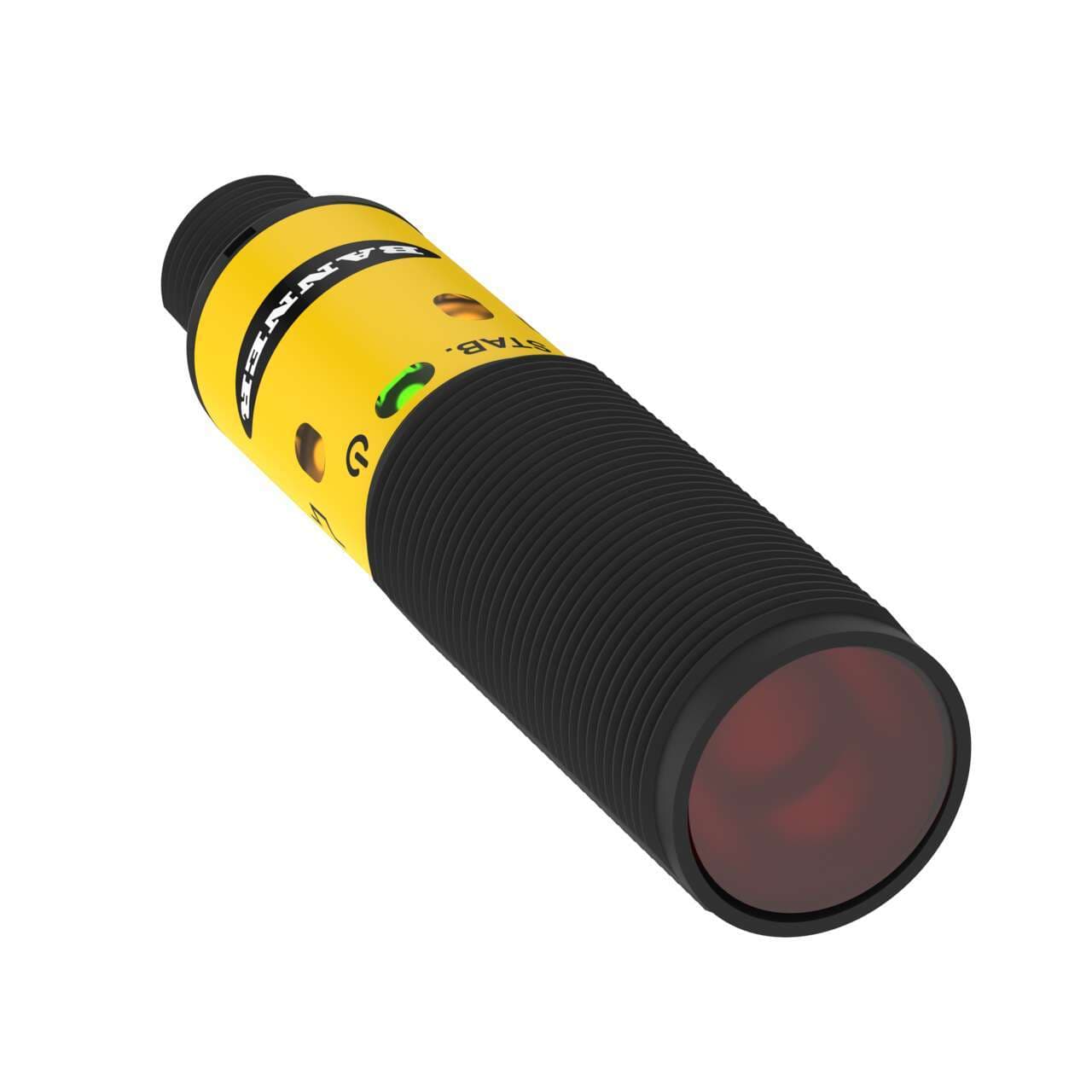

S18-2VNLP-Q8 Banner Optical Sensors
Part#:S18-2VNLP-Q8
Alt. Part#:42142
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
S18-2 Series: Polarized Retroreflective; Range: 6 m; Input: 10-30 V dc; Outputs: Complementary NPN; 4-pin M12 Integral QD
Product Details
- Weight 27.21552 g
- Country Of Origin CN
- Sensing distance 6m
- Operating mode Light-ON Dark-ON
- Ambient air temperature for operation -40...+70 °C
- Sub-range name S18-2 series
- Light Color Visible red
- Response time 1.5ms / 0.0015 s
- Main function Sensor (Photo-electric)
- Product series / family name M18 barrel series
- Digital outputs 1 x digital output (NPN transistor)
- Compliant with standard(s) CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M18
- Degree of protection IP67
- Equivalent to S182VNLPQ8
- Material thermoplastic housing Acrylic lns.
- Order code / Manufacturer SKU 42142
- Design retro-reflective mode
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Wavelength 624 nm
- Shape Cylindrical threaded/barrel
- Primary brand Banner Engineering
- Functions Polarized photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
- Primary Housing Material Thermoplastic
- Special Feature: Remote Teach No
- Lens Material Acrylic
- IO Link No
- Power DC
- Max Op. Temp. (°C) 70
- Repeatability (µs) 100
- Opposed Mode Emitter/Receiver N/A
- Housing Style Barrel
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Encapsulated No
- Max Sensing Distance (mm) 6000
- Operation Light/Dark Operate
- Sensing Beam Wavelength 624
- Indicator LEDs
- Outputs NPN
- Connection Integral QD
- Sensing Beam Visible Red LED
- Min Op. Temp. (°C) -40
- NEMA Rating N/A
- Adjustments N/A
- Feature: Chemical Resistant No
- Input/Output Discrete
- Output response time (ms) 1.5
- IP Rating IP67
- Feature: Ecolab Certified Yes
- Sensing Mode (General) Retroreflective
- Power Supply/Supply Voltage 10-30 V dc
- Number of Pins 4
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Polarized
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- Feature: Audible No
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VNLP-Q8 on Powermatic Associates is $77.00. Order now.
About the product
Banner Engineering S18-2VNLP-Q8 is a polarized photo-electric sensor from the S18-2 series, designed in a retro-reflective mode. It features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector. This sensor operates within a supply voltage range of 10Vdc-30Vdc, with nominal values at 12Vdc and 24Vdc, and can function in ambient air temperatures ranging from -40 to +70°C. It offers a degree of protection rated at IP67, making it suitable for various environmental conditions. The S18-2VNLP-Q8 has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (NPN transistor), and provides a sensing distance of up to 6 meters. It emits visible red light with a wavelength of 624 nm and features a quick response time of 1.5ms / 0.0015 s. Its operating modes include Light-ON and Dark-ON, and it has an M18 thread size.
