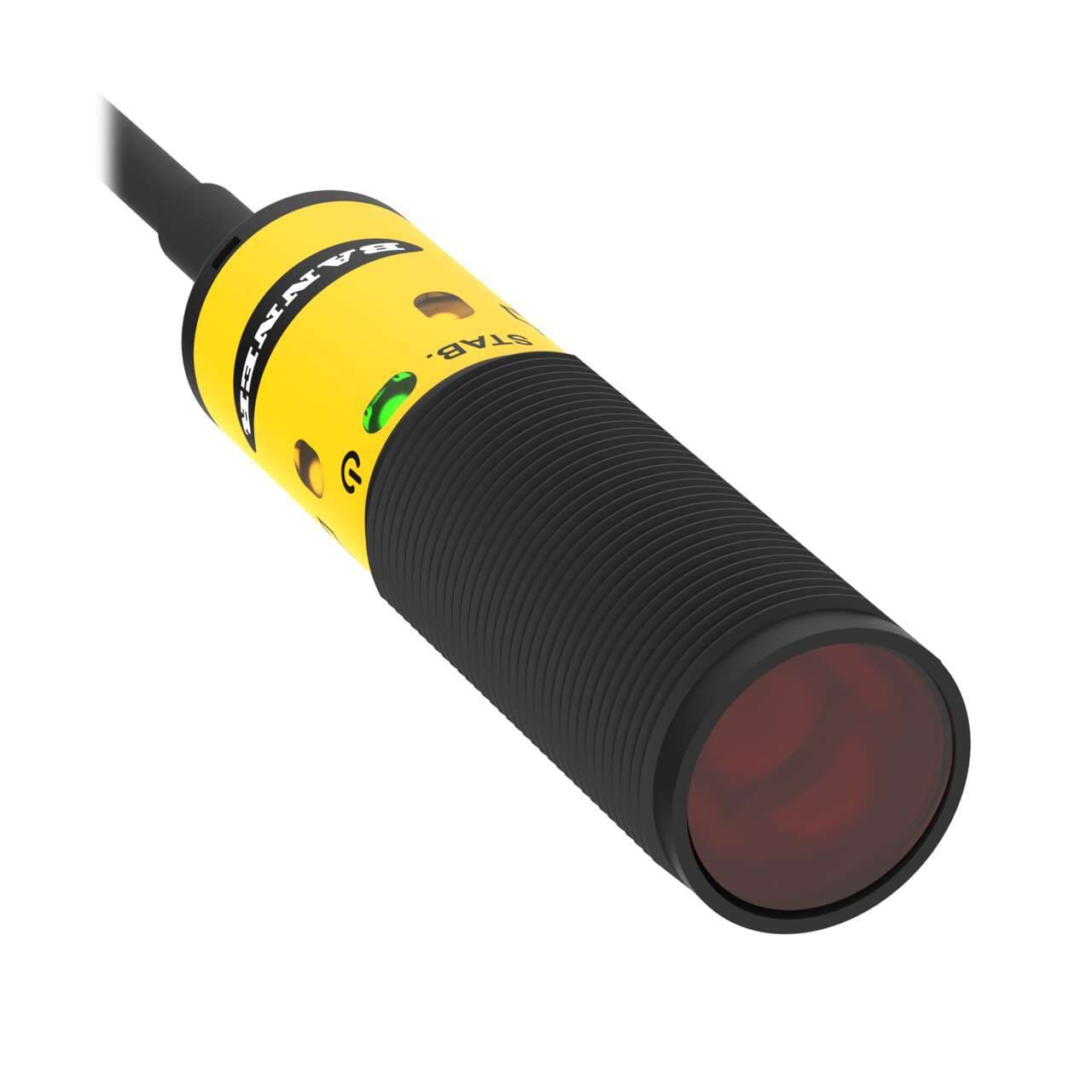

S18-2VPFF100-2M Banner Optical Sensors
Part#:S18-2VPFF100-2M
Alt. Part#:91094
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
S18-2 Series: Fixed Field; Range: 100 mm; Input: 10-30 V dc; Outputs: complementary PNP; 2 m 4-conductor PVC Cable
Product Details
- Weight 56.699 g
- Country Of Origin CN
- IO Link No
- Feature: Audible No
- Feature: Hazardous Area No
- DeviceNet No
- Feature: Encapsulated No
- Feature: Chemical Resistant No
- Opposed Mode Emitter/Receiver N/A
- Feature: Timing (Hold/Delay) No
- Feature: Ecolab Certified Yes
- Indicator LEDs
- Barrel Diameter (mm) 18
- Max Op. Relative Humidity [%] 95% @ 50°C
- Adjustments N/A
- Number of Pins 4
- IP Rating IP67
- Lens Material Acrylic
- NEMA Rating N/A
- Repeatability (µs) 100
- Output response time (ms) 1.5
- Max Op. Temp. (°C) 70
- Operation Light/Dark Operate
- Delay at Power-up (ms) 100
- Sensing Beam Wavelength 624
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Min Op. Temp. (°C) -40
- Quick Disconnect Type No QD
- Connection Cable
- Power Supply/Supply Voltage 10-30 V dc
- Outputs PNP
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Max Sensing Distance (mm) 100
- Primary Housing Material Thermoplastic
- Input/Output Discrete
- Small Visible Spot LED
- Sensing Mode (General) Proximity
- Power DC
- Cable Length (m) 2
- Housing Style Barrel
- Sensing Beam Visible Red LED
- Product series / family name M18 barrel series
- Sensing distance 100mm
- Thread size M18
- Degree of protection IP67
- Compliant with standard(s) CE
- Design background suppression system
- Primary brand Banner Engineering
- Main function Sensor (Photo-electric)
- Operating mode Light-ON Dark-ON
- Response time 1.5ms / 0.0015 s
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Wavelength 624 nm
- Ambient air temperature for operation -40...+70 °C
- Light Color Visible red
- Digital outputs 1 x digital output (PNP transistor)
- Order code / Manufacturer SKU 91094
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Material thermoplastic housing Acrylic lns.
- Sub-range name S18-2 series
- Equivalent to S182VPFF1002M
- Functions Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
- Shape Cylindrical threaded/barrel
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VPFF100-2M on Powermatic Associates is $96.00. Order now.
About the product
Banner Engineering S18-2VPFF100-2M is a fixed-field photo-electric sensor from the S18-2 series, designed with a background suppression system. It features a thermoplastic housing and an acrylic lens. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal values of 12Vdc / 24Vdc. The sensor can function within an ambient air temperature range of -40 to +70°C and has an IP67 degree of protection, making it suitable for various environmental conditions. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The S18-2VPFF100-2M offers one digital output (PNP transistor) and has a sensing distance of 100mm. It utilizes visible red light with a wavelength of 624 nm and has a quick response time of 1.5ms / 0.0015 s. The operating modes available are Light-ON and Dark-ON, with a thread size of M18.
