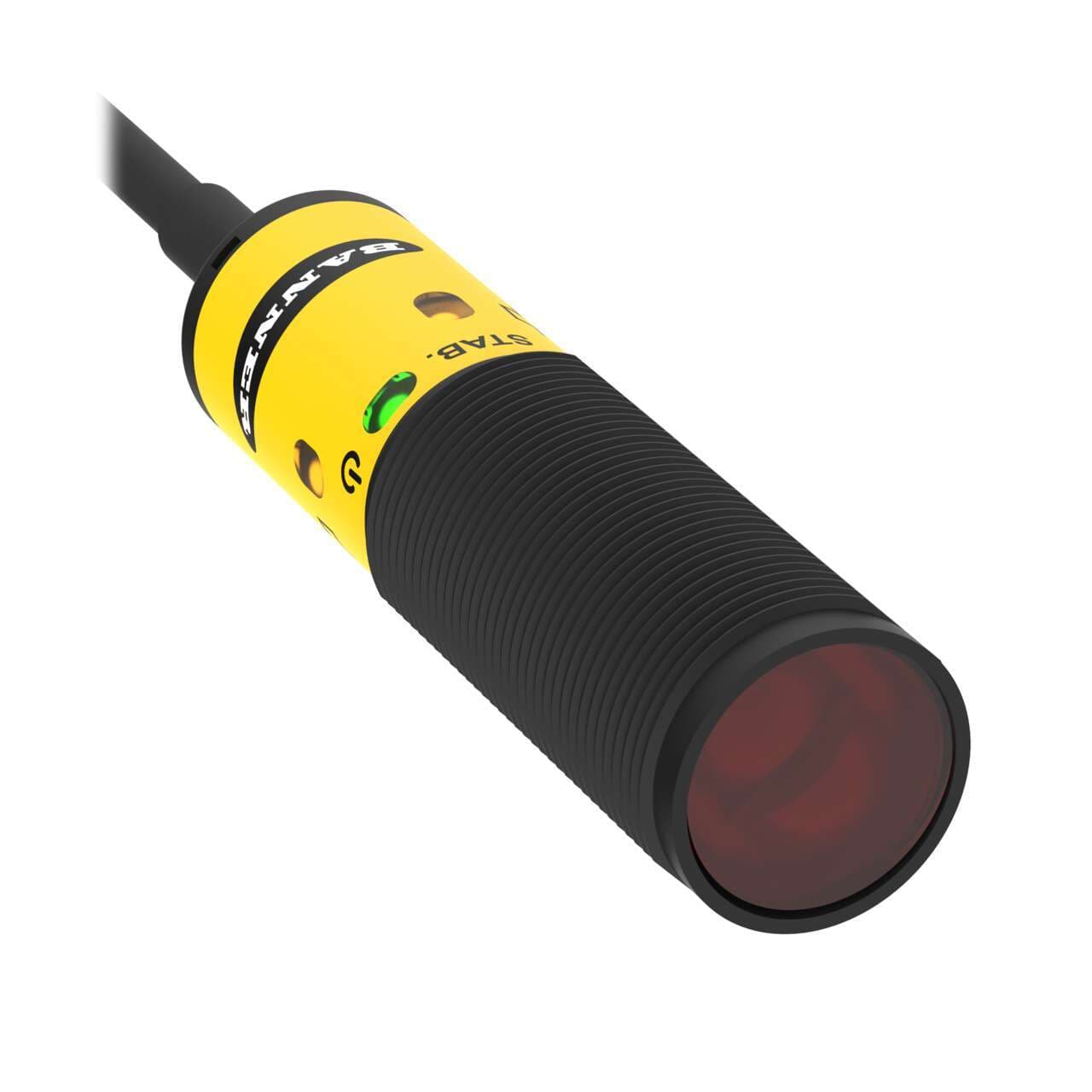

S18-2VPFF50-2M Banner Optical Sensors
Part#:S18-2VPFF50-2M
Alt. Part#:91074
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
S18-2 Series: Fixed Field; Range: 50 mm; Input: 10-30 V dc; Outputs: complementary PNP; 2 m 4-conductor PVC Cable
Product Details
- Weight 58.96696 g
- Country Of Origin CN
- Sub-range name S18-2 series
- Shape Cylindrical threaded/barrel
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -40...+70 °C
- Product series / family name M18 barrel series
- Functions Fixed-field photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
- Design background suppression system
- Degree of protection IP67
- Response time 1.5ms / 0.0015 s
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) CE
- Primary brand Banner Engineering
- Main function Sensor (Photo-electric)
- Sensing distance 50mm
- Digital outputs 1 x digital output (PNP transistor)
- Equivalent to S182VPFF502M
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 624 nm
- Thread size M18
- Material thermoplastic housing Acrylic lns.
- Order code / Manufacturer SKU 91074
- Sensing Beam Visible Red LED
- Max Sensing Distance (mm) 50
- Output response time (ms) 1.5
- IP Rating IP67
- Feature: Encapsulated No
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 2
- Special Feature: Water Detection No
- Lens Material Acrylic
- DeviceNet No
- Housing Style Barrel
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Small Visible Spot LED
- Connection Cable
- Repeatability (µs) 100
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (General) Proximity
- Special Feature: Intrinsically Safe No
- Min Op. Temp. (°C) -40
- Barrel Diameter (mm) 18
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- Sensing Beam Wavelength 624
- Adjustments N/A
- Power DC
- Outputs PNP
- NEMA Rating N/A
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Operation Light/Dark Operate
- Delay at Power-up (ms) 100
- Indicator LEDs
- Max Op. Temp. (°C) 70
- Input/Output Discrete
- Number of Pins 4
- Feature: Ecolab Certified Yes
- IO Link No
- Feature: Chemical Resistant No
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VPFF50-2M on Powermatic Associates is $96.00. Order now.
About the product
Banner Engineering S18-2VPFF50-2M is a fixed-field photo-electric sensor from the S18-2 series, designed with a background suppression system. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. This sensor operates within a supply voltage range of 10Vdc-30Vdc, with nominal values at 12Vdc and 24Vdc, and can function in ambient air temperatures ranging from -40 to +70°C. It offers a degree of protection rated at IP67, making it suitable for various environmental conditions. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (PNP transistor), and provides a sensing distance of 50mm. It utilizes visible red light with a wavelength of 624 nm and has a response time of 1.5ms / 0.0015 s. The operating modes available are Light-ON and Dark-ON, and it features an M18 thread size.
