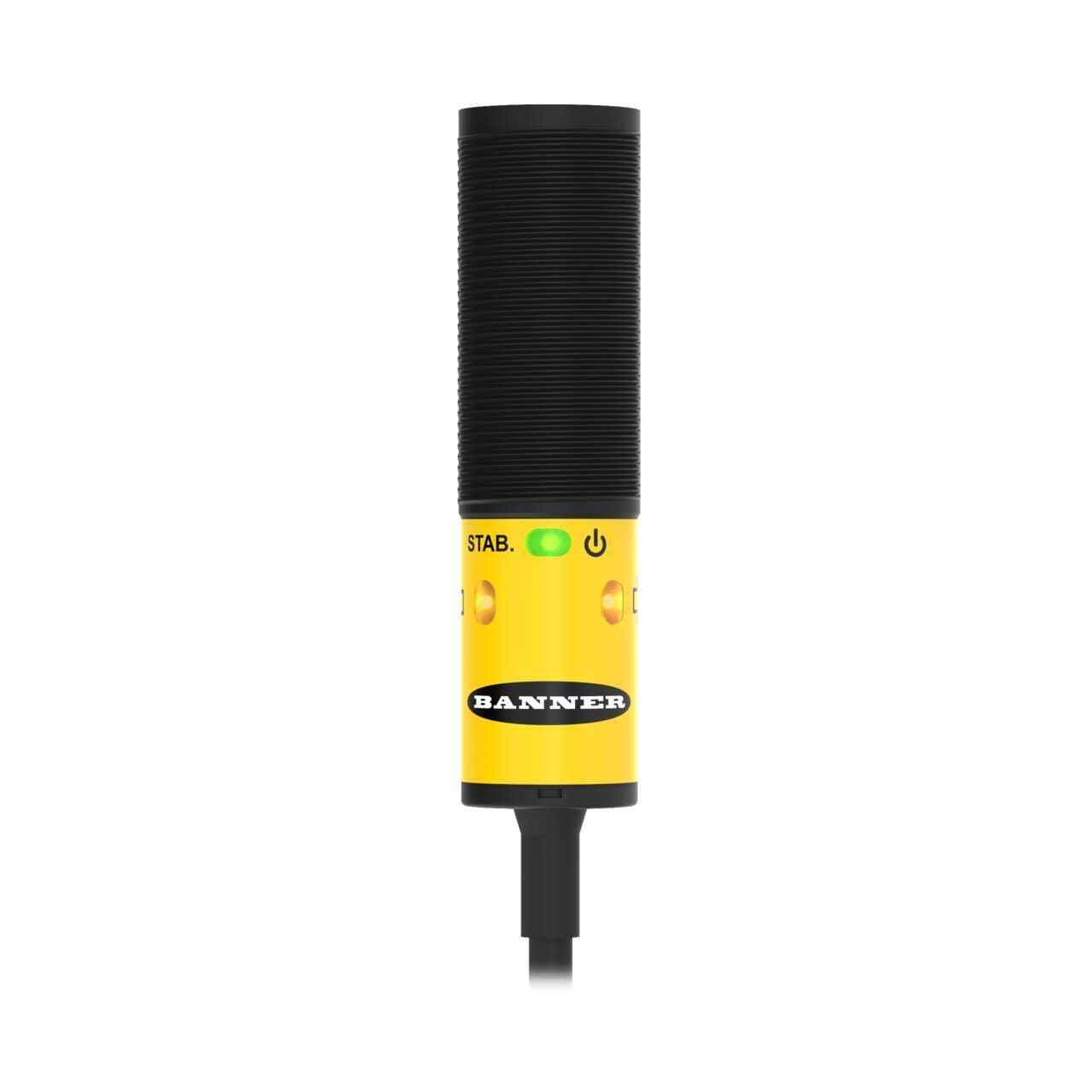

S18-2VPLP-9M Banner Optical Sensors
Part#:S18-2VPLP-9M
Alt. Part#:42146
Manufacturer:Banner
Category:Optical Sensors
Product Lifecycle:Active
Product description
S18-2 Series: Polarized Retroreflective; Range: 6 m; Input: 10-30 V dc; Outputs: complementary PNP; 9 m 4-conductor PVC Cable
Product Details
- Weight 181.4368 g
- Country Of Origin CN
- Main function Sensor (Photo-electric)
- Design retro-reflective mode
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) CE
- Product series / family name M18 barrel series
- Functions Polarized photo-electric sensor green LED (power ON) 2 x yellow LED (output conducting)
- Shape Cylindrical threaded/barrel
- Degree of protection IP67
- Equivalent to S182VPLP9M
- Thread size M18
- Connection type Pre-wired with 9m cable terminated with bare end flying leads
- Response time 1.5ms / 0.0015 s
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 6m
- Light Color Visible red
- Material thermoplastic housing Acrylic lns.
- Order code / Manufacturer SKU 42146
- Sub-range name S18-2 series
- Wavelength 624 nm
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -40...+70 °C
- Cable Length (m) 9
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 624
- Feature: Ecolab Certified Yes
- Sensing Beam Visible Red LED
- Outputs PNP
- Max Op. Relative Humidity [%] 95% @ 50°C
- Number of Pins 4
- Operation Light/Dark Operate
- Primary Housing Material Thermoplastic
- Adjustments N/A
- Opposed Mode Emitter/Receiver N/A
- Max Sensing Distance (mm) 6000
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- DeviceNet No
- Housing Style Barrel
- Quick Disconnect Type No QD
- Max Op. Temp. (°C) 70
- NEMA Rating N/A
- Feature: Audible No
- Power DC
- Min Op. Temp. (°C) -40
- Special Feature: Water Detection No
- Lens Material Acrylic
- Special Feature: Remote Teach No
- Sensing Mode (General) Retroreflective
- Repeatability (µs) 100
- Indicator LEDs
- Input/Output Discrete
- Output response time (ms) 1.5
- Barrel Diameter (mm) 18
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Polarized
- Connection Cable
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Feature: Chemical Resistant No
- IO Link No
- Feature: Encapsulated No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18-2VPLP-9M on Powermatic Associates is $102.00. Order now.
About the product
Banner Engineering S18-2VPLP-9M is a polarized photo-electric sensor from the S18-2 series, designed in a retro-reflective mode. It features a thermoplastic housing with an acrylic lens and is pre-wired with a 9m cable terminated with bare end flying leads. This sensor operates within a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. It can function in ambient air temperatures ranging from -40 to +70°C and is rated with a degree of protection of IP67. The S18-2VPLP-9M has an M18 cylindrical threaded/barrel shape and includes 1 x digital output (PNP transistor). It offers a sensing distance of up to 6m and uses visible red light with a wavelength of 624 nm. The response time of this sensor is 1.5ms / 0.0015 s, and it supports both Light-ON and Dark-ON operating modes.
