S186ELD Banner Retroreflective Sensors

S186ELD on Powermatic Associates
Banner

Part#:S186ELD

Alt. Part#:31407

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

S186ELD Laser: Emitter; Range: depends on receiver; Input: 10-30 V dc; Output: Not Applicable; 2 m (6.5 ft) Cable

Product Details

  • Weight
    146.963808 g
  • Country Of Origin
    CN
  • IO Link
    No
  • DeviceNet
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Ecolab Certified
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Opposed Mode Emitter/Receiver
    Emitter
  • Feature: Washdown Rated
    Yes
  • Feature: Encapsulated
    No
  • Feature: Chemical Resistant
    No
  • Indicator
    LEDs
  • Adjustments
    N/A
  • Barrel Diameter (mm)
    18
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • NEMA Rating
    NEMA 6P
  • IP Rating
    IP67, IP69
  • Number of Pins
    2
  • Special Feature: Water Detection
    No
  • Repeatability (µs)
    375
  • Lens Material
    Polycarbonate
  • Special Feature: Remote Teach
    No
  • Delay at Power-up (ms)
    100
  • Special Feature: Intrinsically Safe
    No
  • Min Op. Temp. (°C)
    -40
  • Max Op. Temp. (°C)
    70
  • Output response time (ms)
    N/A
  • Power Supply/Supply Voltage
    10-30 V dc
  • Outputs
    N/A
  • Max Sensing Distance (mm)
    15000
  • Connection
    Cable
  • Operation
    N/A
  • Quick Disconnect Type
    No QD
  • Housing Style
    Barrel
  • Primary Housing Material
    Thermoplastic
  • Power
    DC
  • Cable Length (m)
    2
  • Sensing Mode (Detailed)
    Laser Emitter
  • Sensing Mode (General)
    Opposed
  • Laser Classification
    Class 1
  • Sensing Beam
    Visible Red Laser
  • Small Visible Spot
    Laser

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S186ELD on Powermatic Associates is $275.00. Order now.

About the product

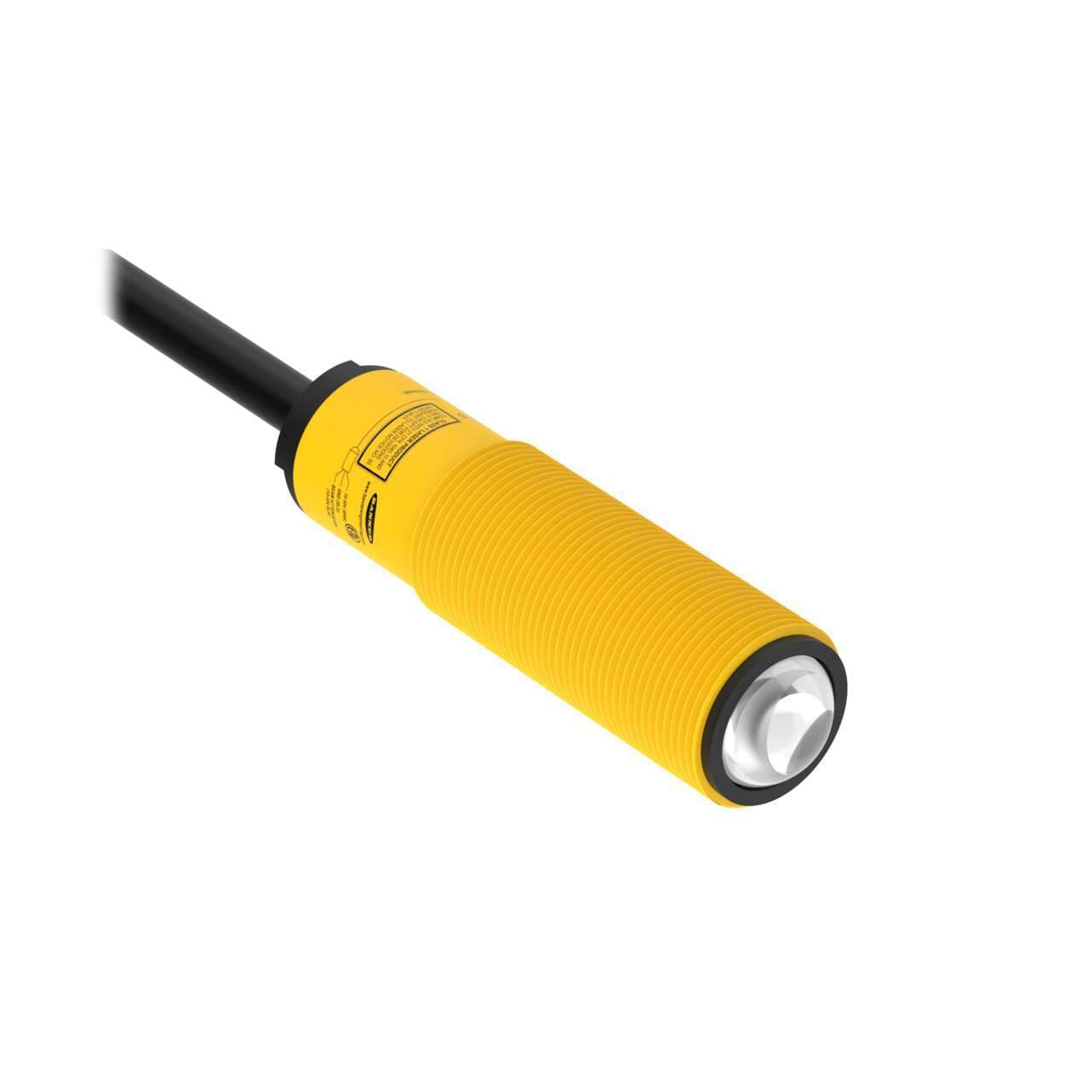

Banner Engineering S186ELD is a Class 1 laser photo-electric sensor designed for through-beam system applications, part of the S186ELD series. It features a thermoplastic housing with a polycarbonate lens and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads. This sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C. The S186ELD offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring its durability in various environmental conditions. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The sensor emits a visible red light with a wavelength of 650 nm and has an M18 thread size for mounting.
