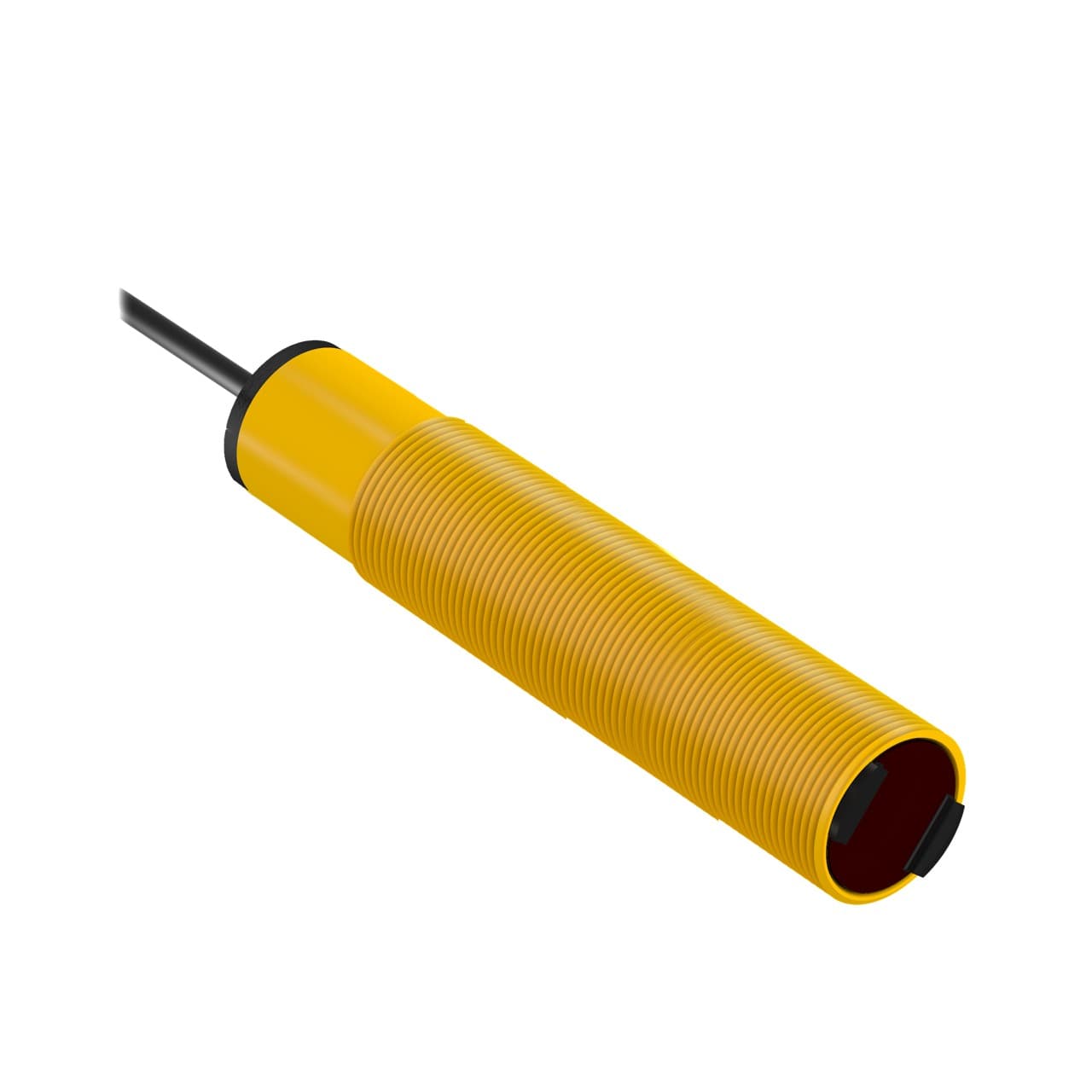

S18AW3FF25 W/30 Banner Electronic Components
Part#:S18AW3FF25 W/30
Manufacturer:Banner
Category:Electronic Components
Product Lifecycle:Active
Product description
Range: 25 mm; Input: 20-250 V ac
Product Details
- Cable Length (m) 9
- Outputs Solid-State AC Switch
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 25
- Quick Disconnect Type No QD
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Feature: Ecolab Certified Yes
- Sensing Beam Infrared LED
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Encapsulated Yes
- Input/Output Solid-State AC Switch
- Operation Light Operate
- Special Feature: Water Detection No
- Adjustments N/A
- Feature: Audible No
- Power AC
- Power Supply/Supply Voltage 20-250 V ac
- Repeatability (µs) 4000
- Barrel Diameter (mm) 18
- Primary Housing Material Thermoplastic
- Output response time (ms) 16
- Number of Pins 3
- Opposed Mode Emitter/Receiver N/A
- Housing Style Barrel
- Min Op. Temp. (°C) -40
- Lens Material Acrylic
- DeviceNet No
- Sensing Mode (General) Proximity
- Special Feature: Intrinsically Safe No
- IP Rating IP67, IP69
- Feature: Washdown Rated Yes
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Connection Cable
- Special Feature: Remote Teach No
- Indicator LEDs
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
