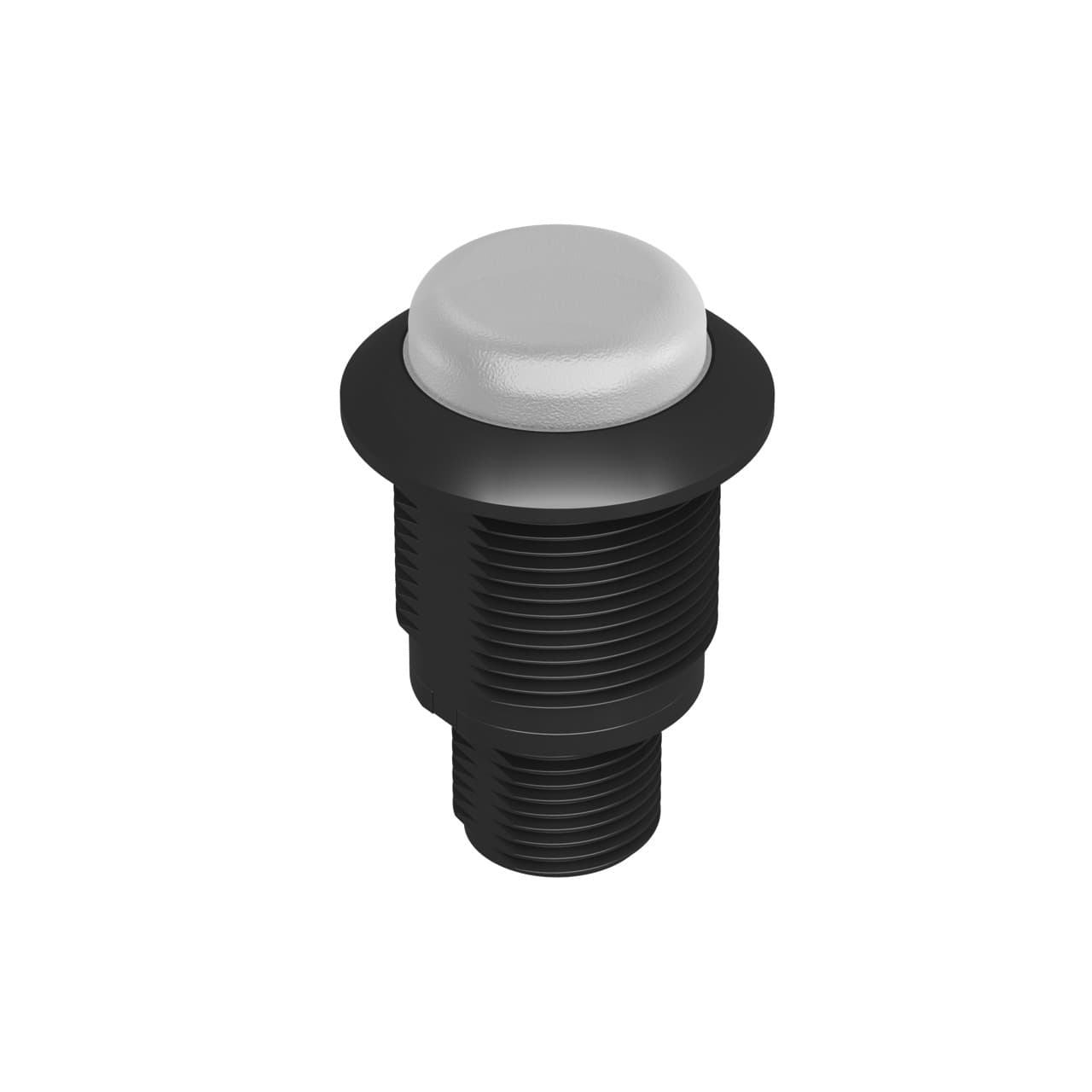

S18DLGGGP Banner Electronic Components

Product Details

• Power
  DC
• Lumens Color 2
  2.3
• Color Option 3
  Green
• Physical Dimensions (LxWxH or DxH mm)
  23.5 x 35.7
• Feature: Audible
  No
• Pro-Editor Compatible (Discrete)
  No
• Primary Housing Material
  Polycarbonate
• Animation Option 1
  Solid On
• Number of Input Pins/Conductors
  4
• Primary Housing Color
  Black
• Multi-Color Device
  Single Color On
• Mounting Thread
  M18 x 1.0
• Lumens Color 1
  2.3
• Color 2 - Wavelength/Color Temp/Coordinates
  525 nm
• Input Type
  PNP
• Indication
  Yes
• Product Size (mm)
  18
• Color 1 - Wavelength/Color Temp/Coordinates
  525 nm
• Supply Voltage
  10-30 V dc
• IO Link
  No
Housing Style
Barrel Mount - Flat Window
Color Option 2
Green
Lumens Color 3
2.3
NEMA Type and UL Type Rating
NEMA and UL 4X, 13
Indication Intensity
High Brightness & Daylight Visible
Power Source
DC
Connection
Cable
Max Current Color (mA)
25
Max Op. Temperature (°C)
50
Modbus RTU
No
Cable Length (m)
0.15
Color Option 1
Green
Color 3 - Wavelength/Color Temp/Coordinates
525 nm
Environmental Rating
IP67; IP69
Feature: Hazardous Area
No
Number of Colors / Segments
3
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Color Technology
Standard LED
Max Input Response Time (ms)
1
Min Op. Temperature (°C)
-40
Feature: Chemical Resistant
No
Feature: Washdown Rated
Yes
Primary Window Material
Polycarbonate Clear
Wireless
No
