S18LGRXPQP Banner Signal Beacons
Part#:S18LGRXPQP
Alt. Part#:21341
Manufacturer:Banner
Category:Signal Beacons
Product Lifecycle:Active
Product description
S18 EZ-LIGHT - 18 mm - IP67; Two Color: Green Red; 10-30 V dc PNP Input; 6 in 4-pin M12 Pigtail QD
Product Details
- Weight 45.4499184 g
- Country Of Origin CN
- Pro-Editor Compatible (Discrete) No
- IO Link No
- Wireless No
- Feature: Quick Disconnect Yes
- Feature: Audible No
- Multi-Color Device Single Color On
- Feature: Chemical Resistant No
- Modbus RTU No
- Feature: Washdown Rated Yes
- Primary Window Material Polycarbonate Diffused
- Primary Housing Color Black
- Min Op. Temperature (°C) -40
- Feature: Hazardous Area No
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Environmental Rating IP67; IP69
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Max Input Response Time (ms) 1
- Max Op. Temperature (°C) 50
- Input Type PNP
- Supply Voltage 10-30 V dc
- Number of Input Pins/Conductors 4
- Max Current Color (mA) 25
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Color Option 2 Red
- Quick Disconnect Type M12 (Euro)
- Lumens Color 1 4.1
- Connection Pigtail QD
- Lumens Color 2 1.1
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Product Size (mm) 18
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Mounting Thread M18 x 1.0
- Animation Option 1 Solid On
- Color Option 1 Green
- Color Technology Standard LED
- Indication Yes
- Primary Housing Material Polycarbonate
- Housing Style Barrel Mount - Flat Window
- Number of Colors / Segments 2
- Power Source DC
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18LGRXPQP on Powermatic Associates is $56.00. Order now.
About the product

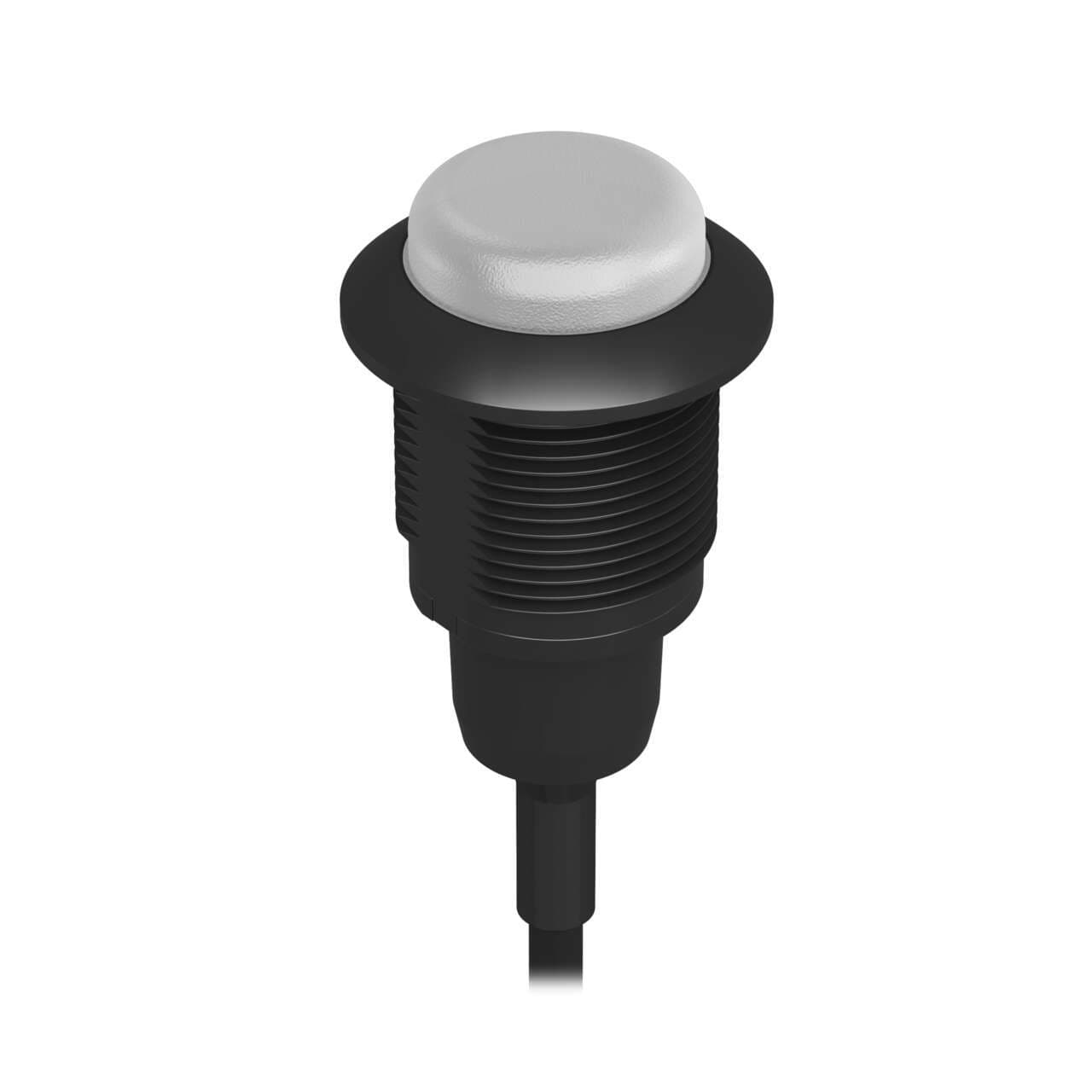

Banner Engineering S18LGRXPQP is a pilot light from the EZ-LIGHT series featuring a 2-color G/R color pattern LED illumination. This LED pilot light indicator is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base. It has an 18mm indicator diameter and is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). It is designed for flush mounting in an 18mm hole with an M18 thread. The ambient air temperature for operation ranges from -40°C to +50°C. It offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The shape is characterized by a round protruding window and a threaded cylindrical barrel. The current consumption is 25mA, and it features 2 x digital inputs (10-30Vdc; PNP) for color control.
