S18LWXXPT Banner Signal Beacons

S18LWXXPT on Powermatic Associates
Banner
  • S18LWXXPT
  • S18LWXXPT

Part#:S18LWXXPT

Alt. Part#:31611

Manufacturer:Banner

Category:Signal Beacons

Product Lifecycle:Active

Product description

S18 EZ Light - 18 mm - IP67; Single Color: White; 10-30 V dc PNP Input; 4-screw Terminal Wiring

Product Details

  • Weight
    63.50288 g
  • Country Of Origin
    CN
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Multi-Color Device
    Single Color On
  • Feature: Audible
    No
  • Wireless
    No
  • Feature: Quick Disconnect
    No
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Primary Housing Color
    Black
  • Min Op. Temperature (°C)
    -40
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    23.5 x 34.6
  • Max Input Response Time (ms)
    1
  • Input Type
    PNP
  • Supply Voltage
    10-30 V dc
  • Number of Input Pins/Conductors
    4
  • Max Current Color (mA)
    25
  • Color 1 - Wavelength/Color Temp/Coordinates
    6000K
  • Animation Option 1
    Solid On
  • Lumens Color 1
    4.0
  • Connection
    Terminal
  • Color Option 1
    White
  • Color Technology
    Standard LED
  • Number of Colors / Segments
    1
  • Mounting Thread
    M18 x 1.0
  • Primary Housing Material
    Polycarbonate
  • Power
    DC
  • Power Source
    DC
  • Housing Style
    Barrel Mount - Flat Window
  • Product Size (mm)
    18
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Indication
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18LWXXPT on Powermatic Associates is $49.00. Order now.

About the product

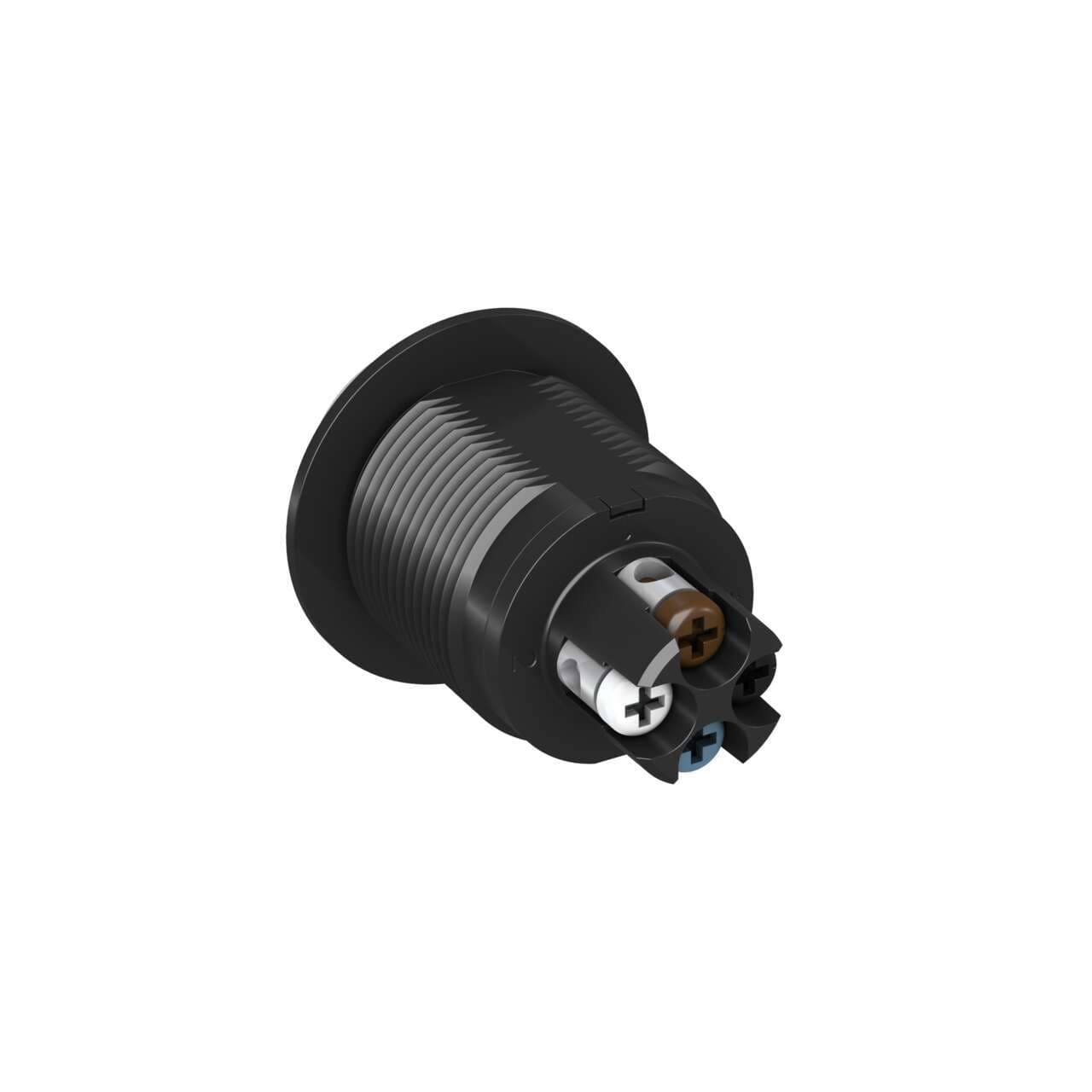

Banner Engineering S18LWXXPT, part of the EZ-LIGHT series, is a pilot light designed with a 1-color White LED illumination. It features an LED pilot light indicator encased in a polycarbonate (PC) diffused window and a polycarbonate (PC) base. This part has an 18mm indicator diameter and utilizes a screw-clamp terminal connection. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nominal). It is designed for flush mounting in an 18mm hole with an M18 thread. The S18LWXXPT can operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The shape is characterized by a round protruding window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 1 x digital input (10-30Vdc; PNP) for color control.

S18LWXXPT Related Documents

160690.pdf

Manufacturer warranty

S18LWXXPT Banner

$49.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$49.00

$49.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

About the manufacturer

Banner

Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
