S18UBA W-30 Banner Sensors & Transducers

Name: S18UBA W-30
Brand: Banner

Part#:S18UBA W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

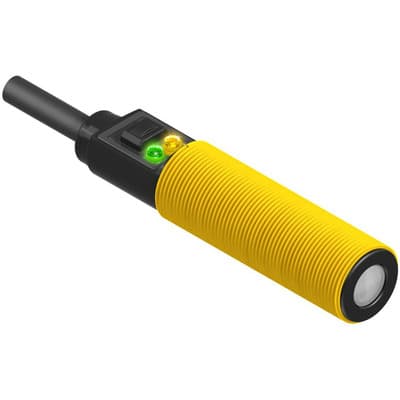

Ultrasonic distance sensor (straight axis) with time-of-flight system - Banner Engineering (U-GAGE series - S18U) - Part #02713 - Sensing range 30...300mm - 300kHz emission frequency - 1 x digital output (PNP/NPN transistor) - Supply voltage 10Vdc-30Vdc (

Product Details

Sub-range name
S18U
Thread size
M18
Emission frequency
300kHz
Product series / family name
U-GAGE series
Supply voltage (DC)
10Vdc-30Vdc (12Vdc / 24Vdc nom.)
Material
thermoplastic housing
Primary brand
Banner Engineering
Sensing distance
30...300mm
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Degree of protection
IP67 NEMA 6P
Functions
Ultrasonic distance sensor (straight axis) green LED (power ON) yellow LED (output state) red LED (teach active) TEACH mode
Shape
Cylindrical threaded/barrel
Protection functions
Short-circuit
Order code / Manufacturer SKU
02713
Main function
Sensor (Distance)
Design
time-of-flight system
Digital outputs
1 x digital output (PNP/NPN transistor)
Ambient air temperature for operation
-20...+60 °C
Compliant with standard(s)
cULus CE
Equivalent to
S18UBAW30

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
