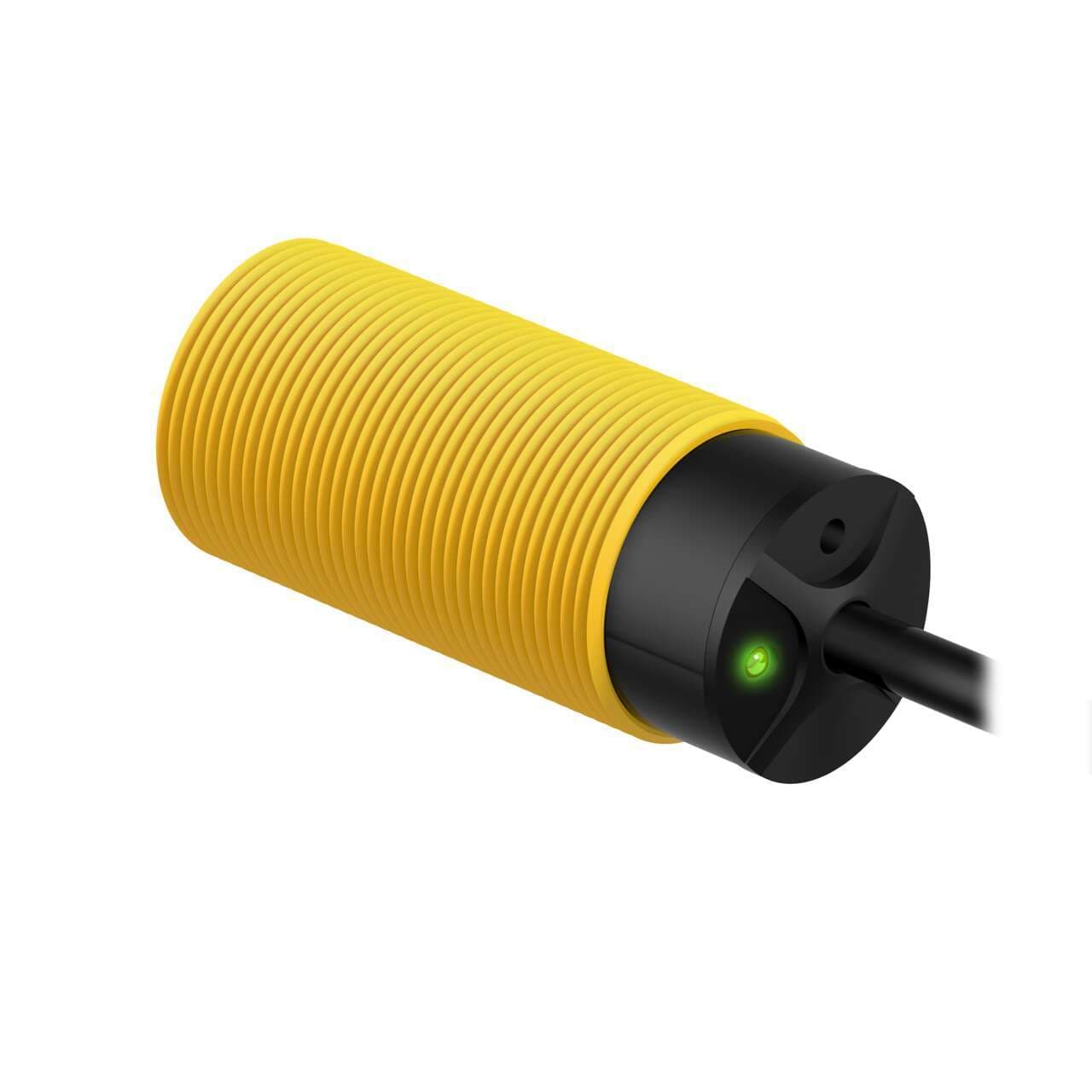

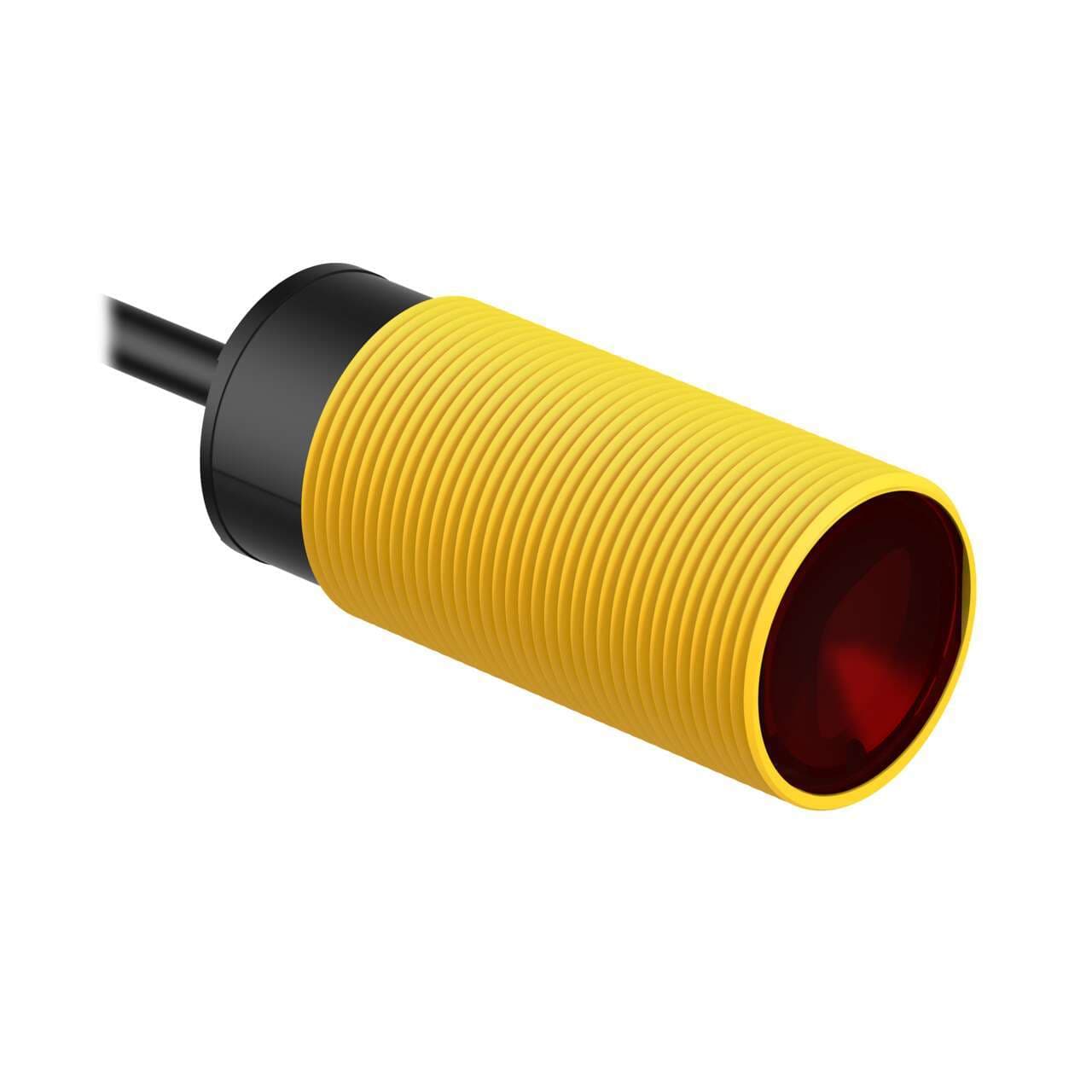

S306E Banner Proximity Sensors

Product Details

• Weight
  174.179328 g
• Country Of Origin
  MX
• Degree of protection
  IP69K NEMA 6P
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Wavelength
  950 nm
• Compliant with standard(s)
  cULus Listed cCSAus CE
• Shape
  Cylindrical threaded/barrel
• Material
  thermoplastic housing
• Order code / Manufacturer SKU
  32341
• Product series / family name
  EZ-BEAM series
• Light Color
  Infrared (IR)
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Sub-range name
  S30 series
• Main function
  Sensor (Photo-electric)
• Design
  through-beam system / opposed mode
• Ambient air temperature for operation
  -40...+70 °C
• Primary brand
  Banner Engineering
• Functions
  Photo-electric emitter green LED (power ON) yellow LED (output state)
• Thread size
  M30
• Cable Length (m)
  2
Max Op. Temp. (°C)
70
NEMA Rating
NEMA 6P
Feature: Encapsulated
Yes
Feature: Health/ Marginal Signal Output
Yes
Housing Style
Barrel
Special Feature: Remote Teach
No
Barrel Diameter (mm)
30
DeviceNet
No
Max Sensing Distance (mm)
60000
Operation
N/A
Delay at Power-up (ms)
100
Feature: Ecolab Certified
Yes
Sensing Beam
Infrared LED
Power Supply/Supply Voltage
10-30 V dc
IP Rating
IP67
Feature: Timing (Hold/Delay)
No
Power
DC
Quick Disconnect Type
No QD
Repeatability (µs)
375
Opposed Mode Emitter/Receiver
Emitter
Outputs
N/A
Output response time (ms)
N/A
Lens Material
Acrylic
Feature: Hazardous Area
No
Sensing Mode (Detailed)
Emitter
Special Feature: Intrinsically Safe
No
Adjustments
N/A
Feature: Audible
No
Primary Housing Material
Thermoplastic
Min Op. Temp. (°C)
-40
Number of Pins
2
Indicator
LEDs
IO Link
No
Sensing Mode (General)
Opposed
Connection
Cable
Special Feature: Water Detection
No
Max Op. Relative Humidity [%]
90% @ 50°C
Feature: Chemical Resistant
No
