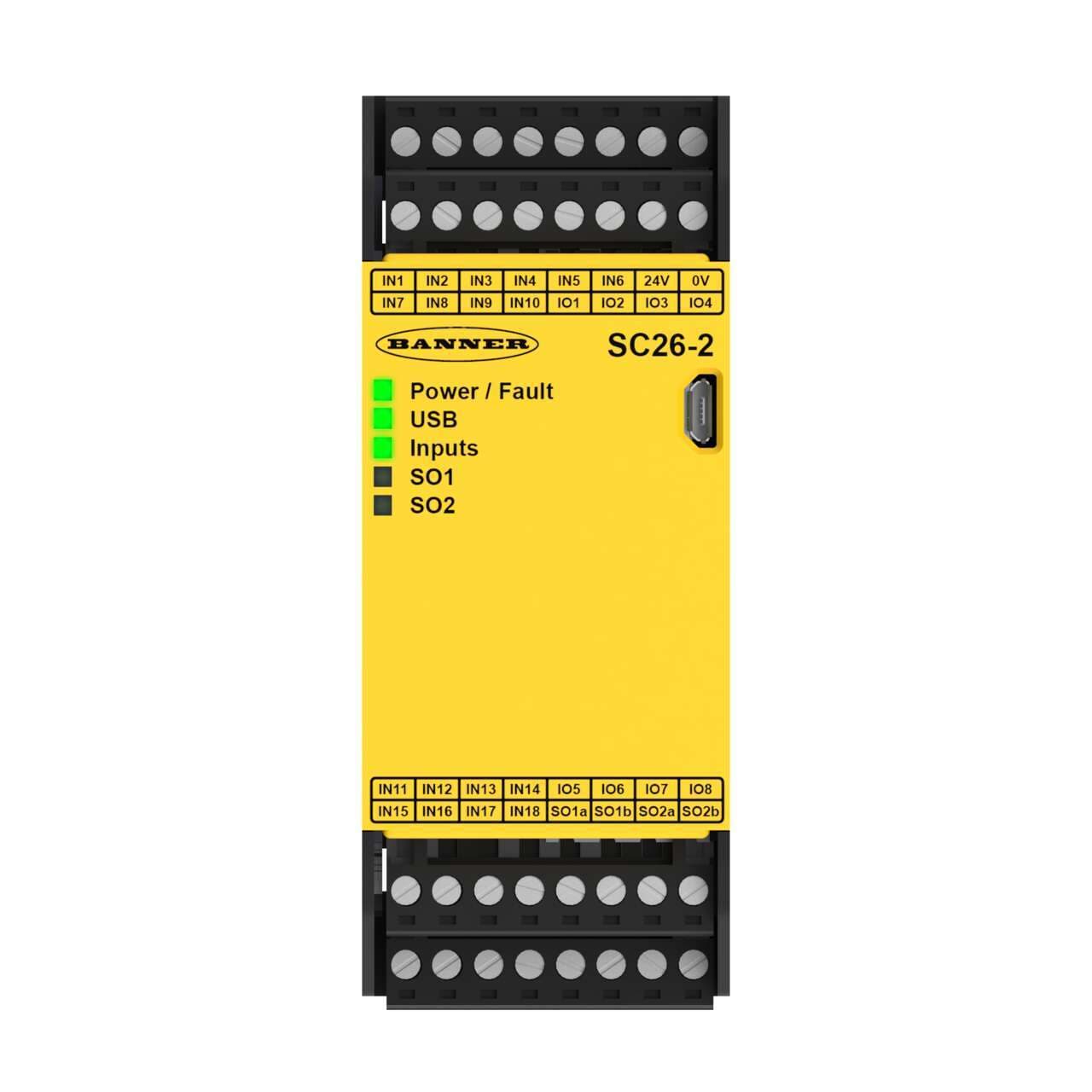

SC26-2 Banner Safety Relays

Product Details

• Weight
  254.01152 g
• Country Of Origin
  US
• Expandable
  No
• Independently Controlled Safe Outputs
  4
• Removable Terminals
  Yes
• Safety Input - Single Channel
  5-50 mA @ 24 V dc
• Common Ethernet Protocol
  No
• Power
  DC
• Relative Humidity
  90% @ 50° C
• Safety Input - Reset
  5-50 mA @ 24 V dc
• PL Rating
  e
• Motor Speed
  No
• Device Type
  Safety Controller
• Safety Input - Dual Channel (Solid-State)
  50 mA @ 15 - 30 V dc
• Power Consumption
  0.1 A (controller only)
• IP Rating
  IP20
• Safety Mat
  Yes
• PROFINET
  No
• Max Operating Temperature ( °C)
  55
• Non Safe Output Configuration
  Up to 11 PNP
Supply Voltage
24 V dc +/- 20%
E-Stops/Rope Pulls
Yes
Light Curtains/Scanner with EDM Input
Yes
Recovery Time
250 (typical), 400 (max)
Input Operation
Simultaneous or Concurrent
Output Configuration
2 OSSD Pairs
Splittable Safe Output
Yes
Input Resistance
150 Ω max. per lead
Gate Switch (NC/NO) Input
Yes
PCCC
No
SISTEMA
PFHd = 1.05 x 10-9
Muting
Yes
Modbus/TCP
No
Safety Module Type
Base Controller
Non Safe Output Rating
80 mA @ 24 V dc (individual) max for IOx; overcurrent protected, 500 mA @ 24 V dc for Sox
Vibration
9-150 Hz at 1g occasional/0.5g continuous
Two-Hand Controls
Yes
EtherNet/IP
No
LCD Display
No
Number of Safe Inputs
26
Response Time (ms)
See Software Configuration Summary
SIL Rating
3
Gate Switch (NC/NC) Input
Yes
In-Series Diagnostics
No
Dimension (H x W x D in mm)
110 x 45 x 129
Safety Input - Dual Channel (Dry Contact)
5-50 mA @ 24 V dc
Safe Output Rating
OSSD 0.50 A max. @ 24 V dc
Safety Category Rating
4
Input Configuration
Configurable
Number of Convertible Inputs
8
Terminal Type
Screw
Light Curtains/Scanner without EDM Input
Yes
THC Rating
IIIC
Gate Switch (OSSD) Input
Yes
