SG-TL70-GR Banner Signal Towers

Name: SG-TL70-GR
Brand: Banner
Price: 111 USD
Availability: BackOrder

Part#:SG-TL70-GR

Alt. Part#:96123

Manufacturer:Banner

Category:Signal Towers

Product Lifecycle:Active

Product description

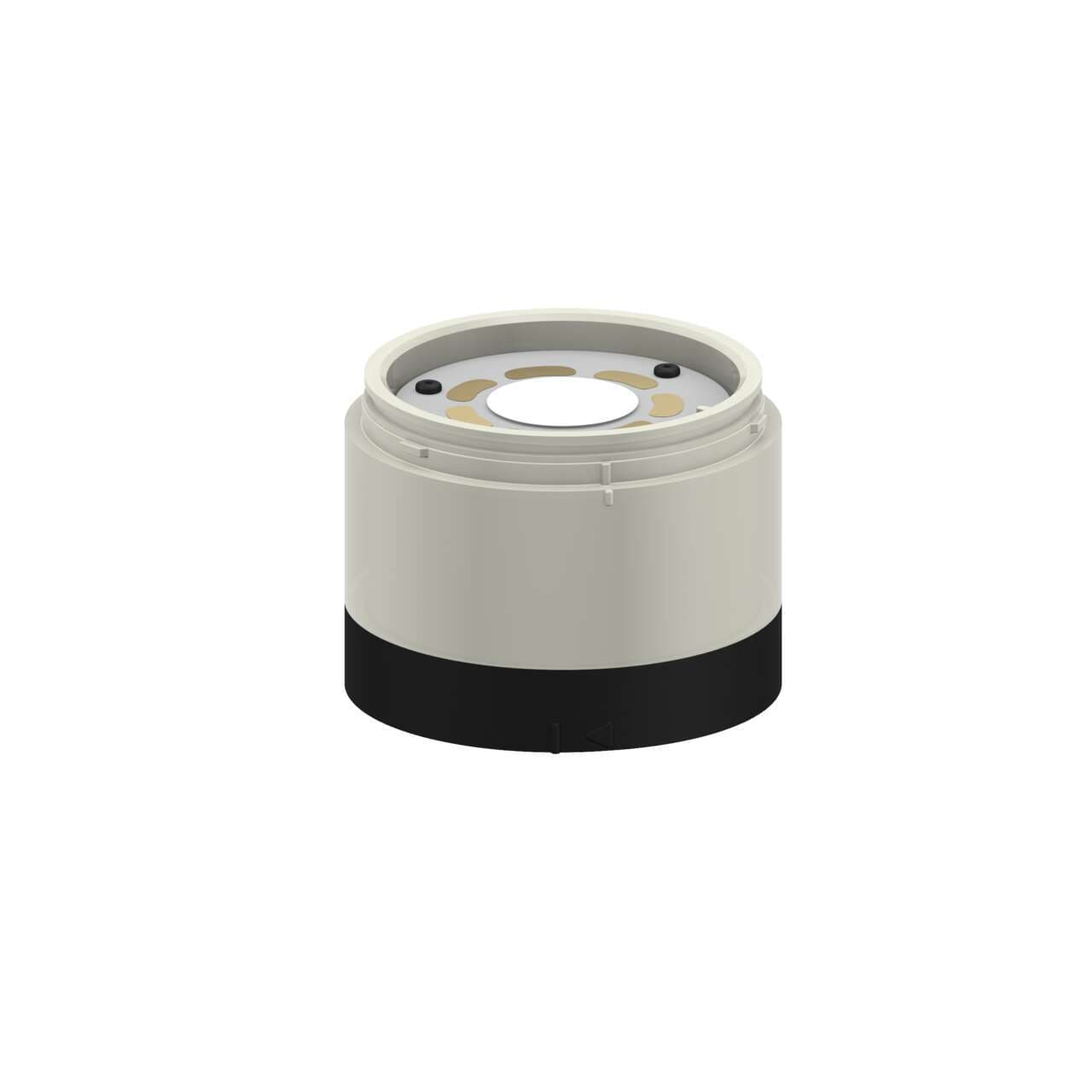

TL70 Light Module; Colors: Green Red; Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Black Housing

Product Details

Weight
90.7184 g
Country Of Origin
MX
Number of Colors / Segments
1
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Feature: Hazardous Area
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Animation Option 2
Dip-Switch Controlled
Max Op. Temperature (°C)
50
Multi-Color Device
Single Color On
Power Source
DC or AC
Power
DC or AC
Max Current Color (mA)
430
Primary Window Material
Polycarbonate Diffused
Indication
Yes
Color Option 2
Red
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Feature: Chemical Resistant
No
Housing Style
Segment - Light
Color Option 1
Green
Physical Dimensions (LxWxH or DxH mm)
70.0 x 50.0

Feature: Audible

Mounting Thread

No Thread

Lumens Color 2

40.0

Min Op. Temperature (°C)

-40

Product Size (mm)

Color 1 - Wavelength/Color Temp/Coordinates

525 nm

Storage Temp (°C)

-40 to 70

Wireless

Primary Housing Material

Polycarbonate

Animation Option 1

Dip-Switch Controlled

Environmental Rating

IP65

IO Link

Color Technology

Standard LED

Lumens Color 1

92.0

Primary Housing Color

Black

Modbus RTU

Feature: Quick Disconnect

Pro-Editor Compatible (Discrete)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SG-TL70-GR on Powermatic Associates is $111.00. Order now.

About the product

Banner Engineering SG-TL70-GR is a light unit within the Modular series, featuring a 2-color G/R color pattern LED illumination designed for tow light module applications. It is constructed with polycarbonate (PC) windows, segments, and base, ensuring durability. This unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a black housing. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The SG-TL70-GR is designed to function within an ambient air temperature range of -40°C to +50 °C and offers a degree of protection rated at IP65. Its current consumption is 430mA, making it suitable for a variety of industrial applications.
