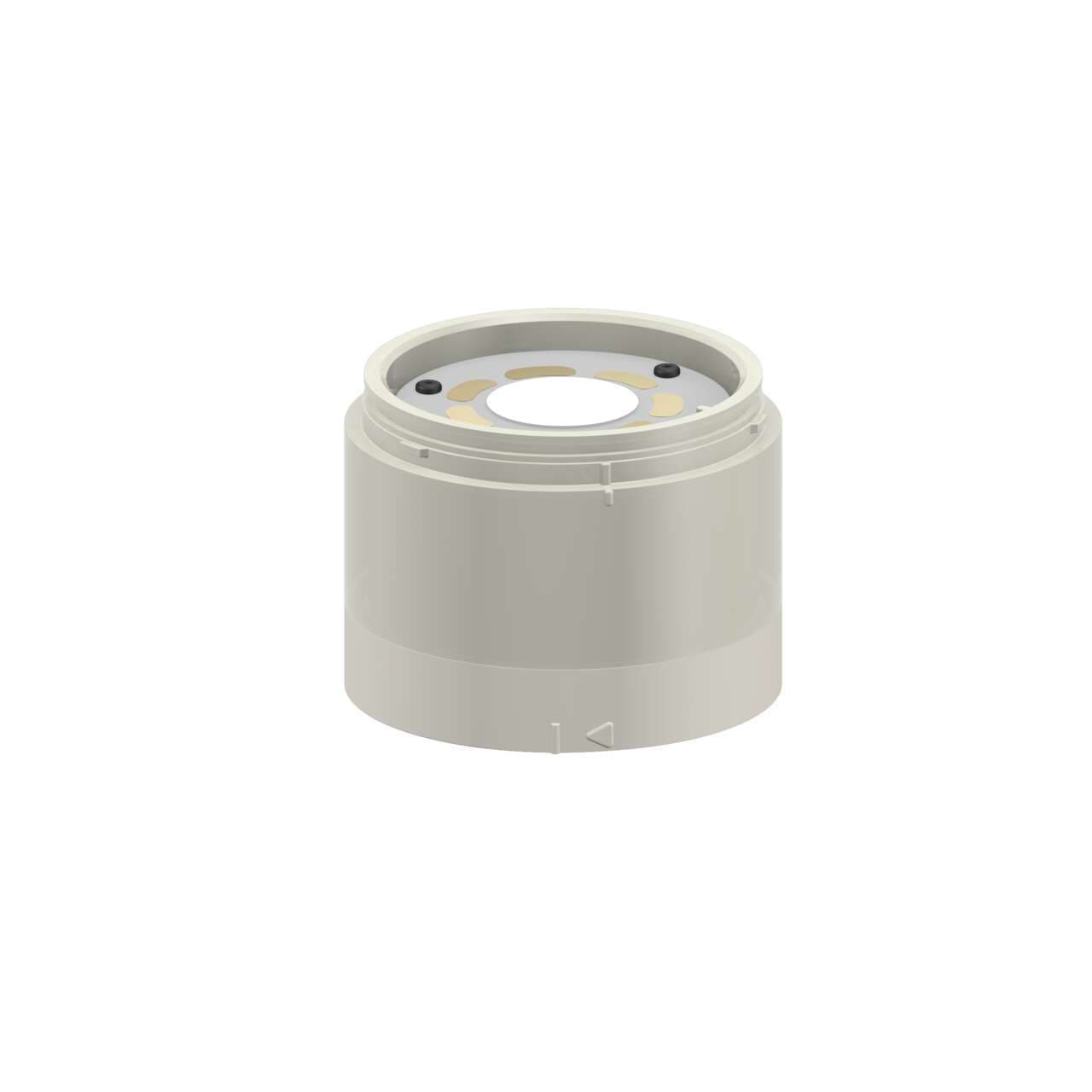

SG-TL70-OC Banner Signal Towers

Name: SG-TL70-OC
Brand: Banner
Price: 82 USD
Availability: BackOrder

Part#:SG-TL70-OC

Alt. Part#:803457

Manufacturer:Banner

Category:Signal Towers

Product Lifecycle:Active

Product description

TL70 Light Module; Color: Orange (red yellow blend); Voltage: 12-30 V dc; Environmental Rating: IP65; Steady On/Flashing; Gray Housing

Product Details

Weight
9.979024 g
Country Of Origin
CN
Feature: Hazardous Area
No
Pro-Editor Compatible (Discrete)
No
Feature: Chemical Resistant
No
Wireless
No
Modbus RTU
No
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Feature: Audible
No
IO Link
No
Feature: Quick Disconnect
No
Min Op. Temperature (°C)
-40
Storage Temp (°C)
-40 to 70
Environmental Rating
IP65
Primary Window Material
Polycarbonate Diffused
Primary Housing Color
Gray
Max Op. Temperature (°C)
50
Lumens Color 1
33.0
Physical Dimensions (LxWxH or DxH mm)
70.0 x 50.0
Max Current Color (mA)
420

Indication

Yes

Color 1 - Wavelength/Color Temp/Coordinates

0.66, 0.33

Number of Colors / Segments

Animation Option 1

Dip-Switch Controlled

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Color Technology

Standard LED

Color Option 1

Orange

Product Size (mm)

Housing Style

Segment - Light

Mounting Thread

No Thread

Power Source

DC or AC

Primary Housing Material

Polycarbonate

Cable Length (m)

Power

DC or AC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SG-TL70-OC on Powermatic Associates is $82.00. Order now.

About the product

Banner Engineering SG-TL70-OC is a light unit from the Modular series, featuring 1-color Orange LED illumination designed for tow light module applications. It is constructed with polycarbonate (PC) windows and segments, along with a polycarbonate (PC) base, ensuring durability. The unit has a cylindrical shape with a diameter of 70mm / 2-3/4" and comes in a gray housing. It operates on a supply voltage range of 12Vdc-30Vdc, with a nominal voltage of 24Vdc. Designed to function in a wide range of ambient air temperatures from -40°C to +50 °C, it offers a degree of protection rated at IP65, making it suitable for various environmental conditions.

SG-TL70-OC Related Documents

182215.pdf

$82.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$82.00

$82.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support
