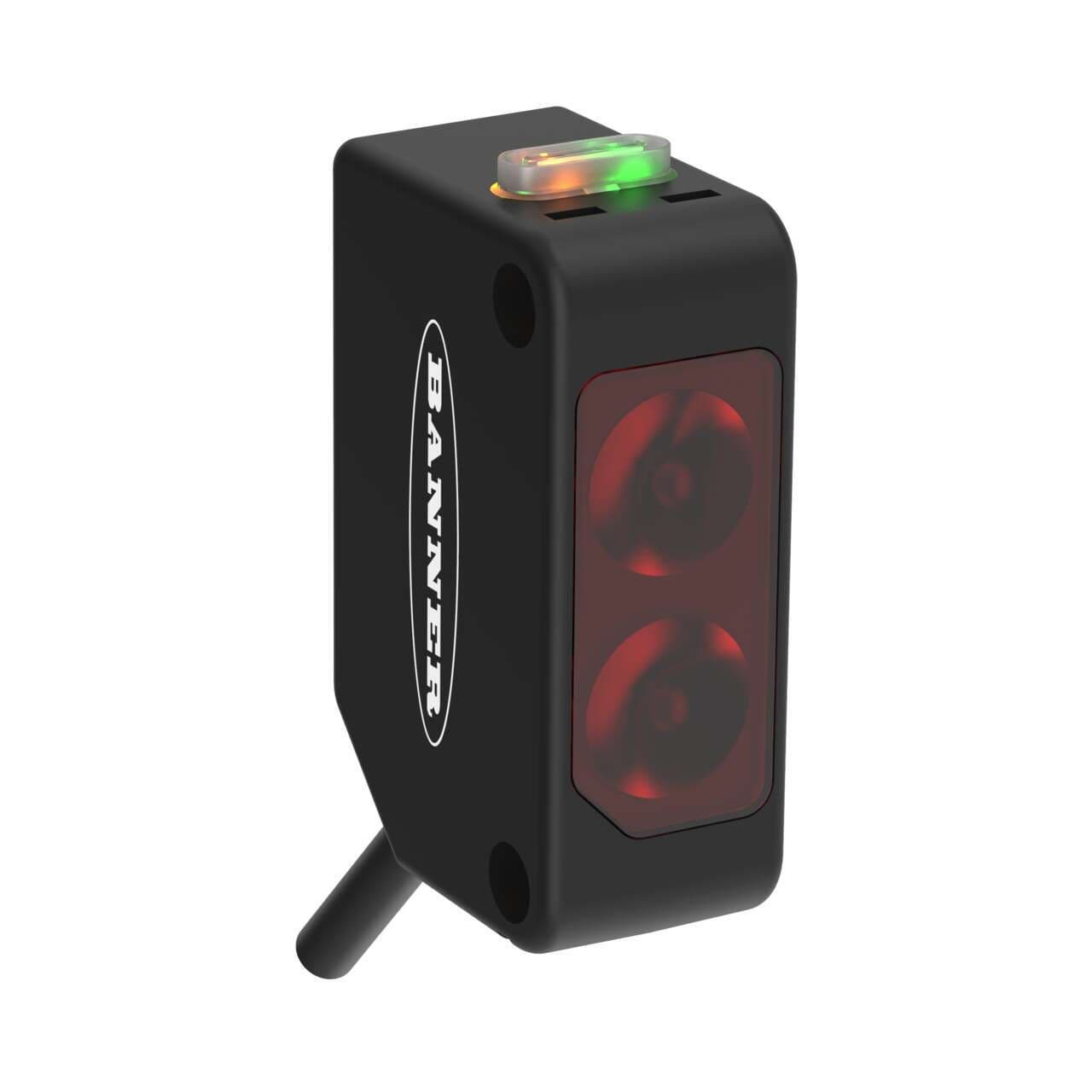

SGSA-Q20PLPQ5 Banner Sensor Accessories
Part#:SGSA-Q20PLPQ5
Alt. Part#:804346
Manufacturer:Banner
Category:Sensor Accessories
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Polarized Retro; Range: 4 m; Input 10-30 V dc; No Gain Pot; Output: Complementary Solid-State PNP; 600 mm (2 ft) M12 Pigtail QD; Specifically used with SGS Safety Grid System
Product Details
- Weight 31.75144 g
- Country Of Origin CN
- Feature: Audible No
- Housing Style Rectangular
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Feature: Encapsulated No
- Max Sensing Distance (mm) 4000
- Operation Dark Operate
- Repeatability (µs) 155
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (General) Retroreflective
- Output response time (ms) 0.8
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) N/A
- Outputs PNP
- Connection Pigtail QD
- IO Link No
- Quick Disconnect Type M12 (Euro)
- Special Feature: Water Detection No
- Adjustments N/A
- Input/Output Discrete
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -20
- Sensing Beam Wavelength 655
- Sensing Mode (Detailed) Polarized
- Indicator LEDs
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Visible Red LED
- Max Op. Temp. (°C) 60
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Power DC
- Special Feature: Remote Teach No
- Number of Pins 4
- Feature: Timing (Hold/Delay) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SGSA-Q20PLPQ5 on Powermatic Associates is $120.00. Order now.
About the product
Banner Engineering SGSA-Q20PLPQ5 is a muting unit belonging to the Q20 series, designed as a retroreflective muting unit. It features a thermoplastic housing and is pre-wired with a 600mm pigtail that terminates with a 4-pin Euro-style M12 connector. This unit operates within a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to function in ambient air temperatures ranging from -20 to +60°C. The SGSA-Q20PLPQ5 offers a degree of protection rated at IP67 NEMA 6, ensuring its durability in various environmental conditions. Its rectangular shape incorporates 1 x digital output (PNP transistor) and has a sensing distance of up to 4m. The unit emits a visible red light and operates in a Dark-ON mode.
