SI-LS100F-Q5A Banner Safety Switches

SI-LS100F-Q5A on Powermatic Associates
Banner
  • SI-LS100F-Q5A
  • SI-LS100F-Q5A

Part#:SI-LS100F-Q5A

Alt. Part#:810874

Manufacturer:Banner

Category:Safety Switches

Product Lifecycle:Active

Product description

SI-LS100F: ISD Connect Compatible; Limit-Style Machine Safety Switch Interlock Body; Two NC; 5-pin M12 QD

Product Details

  • Weight
    12.700576 g
  • Country Of Origin
    DE
  • Mechanical Life (operations in millions)
    1
  • Output Type
    Contacts
  • Device Type
    Mechanical - Sensor
  • Coding Level/Tamper Resistance
    Low
  • Number of Pins
    5
  • PL Rating
    PL e
  • ISD Connect Compatible
    Yes
  • Auxilliary Output
    No
  • In-Series Diagnostics
    No
  • Monitor (Locked) Contacts
    N/A
  • SISTEMA
    B10d = 2 million
  • Feature: Lockable
    No
  • Connection Type
    M12
  • Actuator (Safety) Contacts
    2 NC/1 NO
  • Device Size
    100 x 30 x 31
  • SIL Rating
    SIL CL 3
  • Safety Category
    Cat 4
  • Min Op. Temperature (°C)
    -30
  • Primary Housing Material
    Thermoplastic
  • Max Op. Temperature (°C)
    80
  • IP Rating
    IP65
  • Switch Style
    Contact

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SI-LS100F-Q5A on Powermatic Associates is $110.00. Order now.

About the product

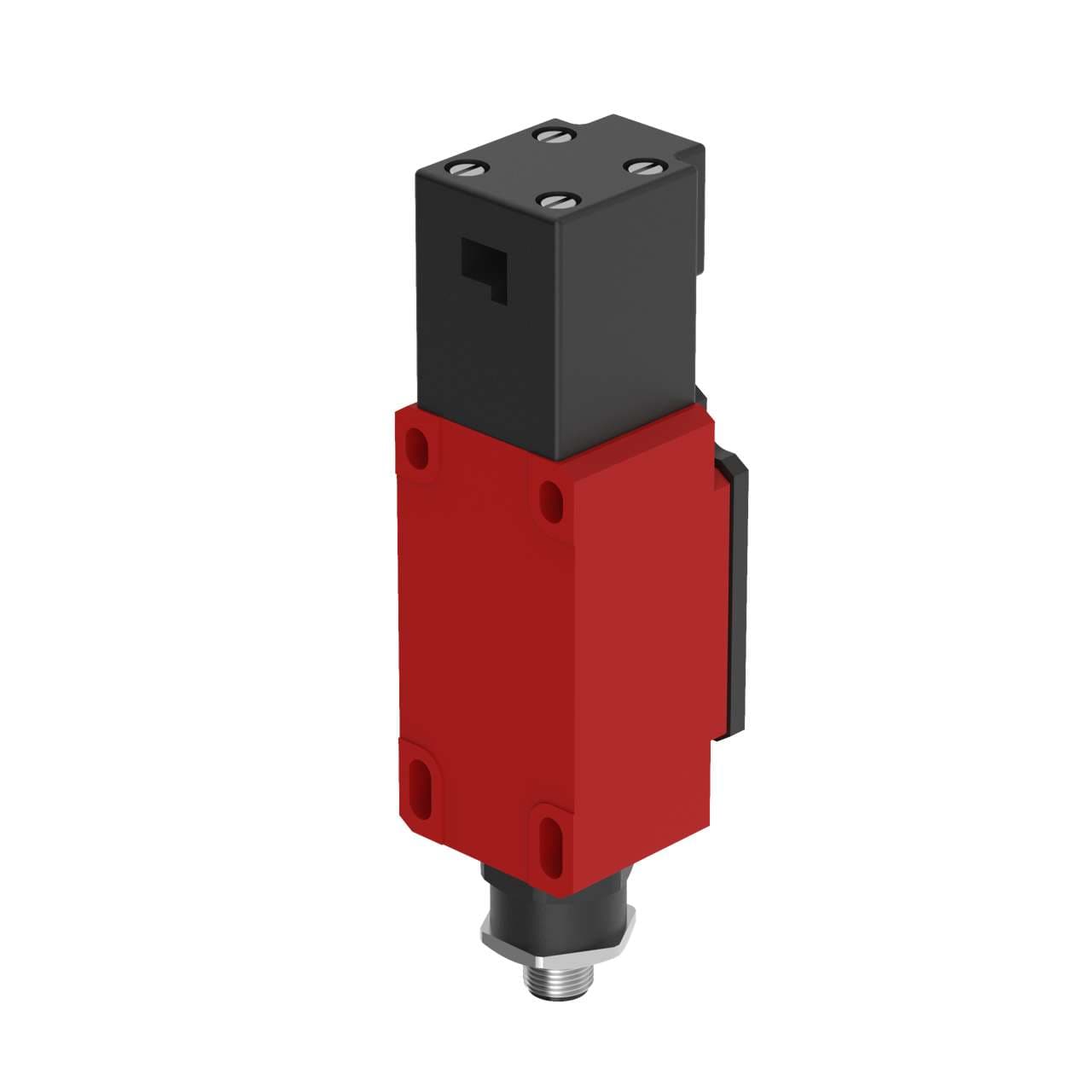

Banner Engineering SI-LS100F-Q5A is a safety limit switch within the SI-LS series, featuring an interlock body flexible in-line actuation design. This part is constructed with a thermoplastic housing and is pre-equipped with a 5-pin M12 connector for connectivity. It includes 2NC + 1NO (safety) contacts, ensuring it meets various machine safety limit switch requirements. The SI-LS100F-Q5A operates within an ambient air temperature range of -30 to +80°C and offers a degree of protection rated at IP65. Its dimensions are 31 mm in width, 100 mm in height, and 30 mm in depth, with 1 NO Pole(s) and 2 NC Pole(s) for circuit configuration.
