Part#:SLC4P14-160P44

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

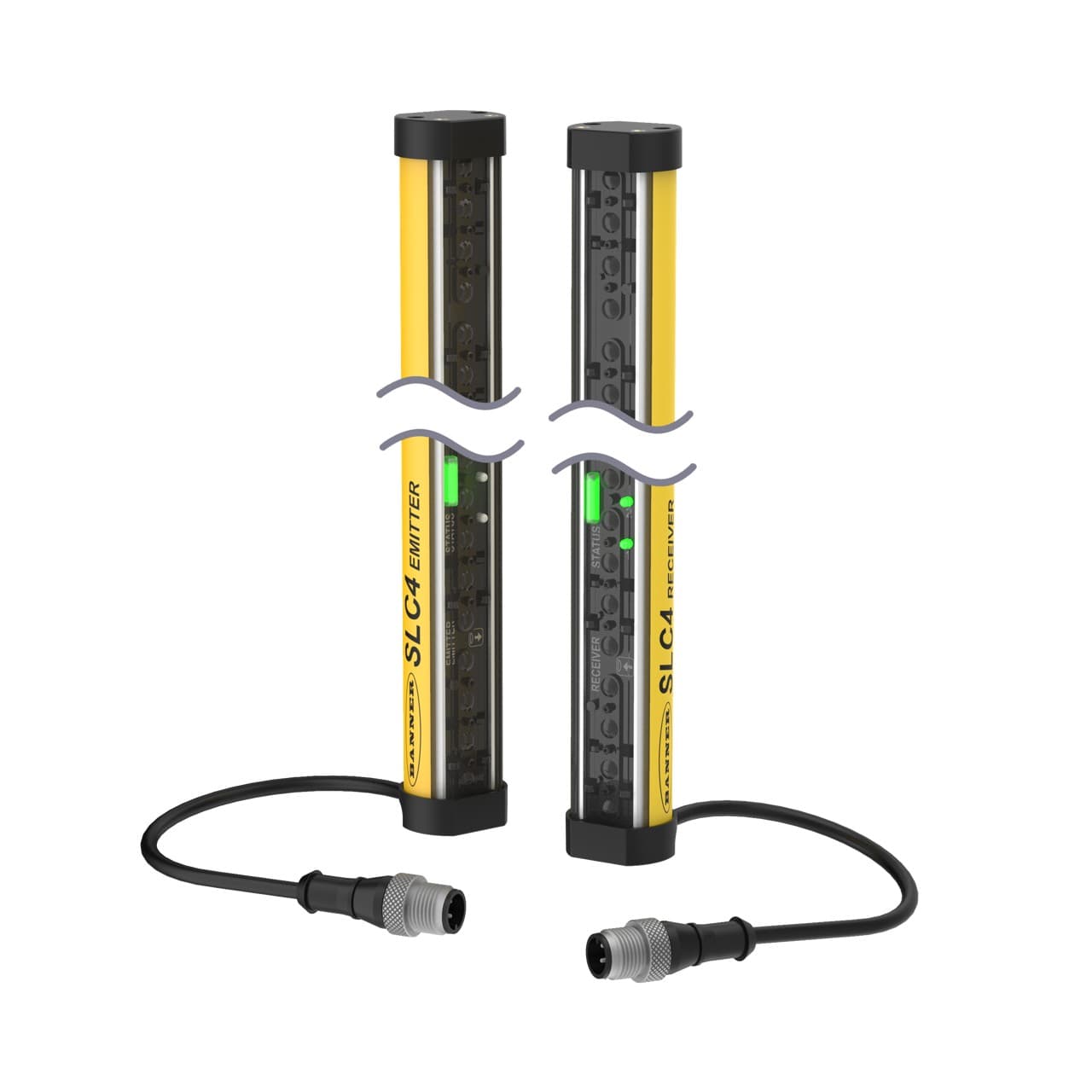

Banner Engineering SLC4P14-160P44 is a safety light curtain designed for finger detection with a resolution of 14mm, featuring both emitter and receiver pairs. It is constructed with a polycarbonate (PC) housing and end caps, and it comes pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector. This part offers a protective height of 160mm and is housed in yellow. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLC4P14-160P44 is IP65 rated, indicating protection against dust ingress and low-pressure water jets from any direction. It has a net width of 27mm, a net height of 174mm, and a net depth of 23mm. The light curtain features a 14mm beam spacing/pitch and provides a sensing distance ranging from 10cm to 2m. It emits infrared (IR) light with a wavelength of 860 nm and includes 2 x digital outputs (24Vdc; 300mA; sourcing; redundant OSSD solid-state outputs) for connectivity.

Product Details

  • Defined Area Height (mm)
    160
  • Operating Distance (m)
    0.1 - 2
  • Operating Temperature
    -20 to +55 deg. C; RH 95%
  • Connector Type
    M12 Pigtail (Black)
  • Scan Code
    None
  • Feature: Integral Muting
    No
  • PL Rating
    Ple
  • Reduced Resolution
    No
  • External Monitoring Device
    No
  • Operating Voltage
    24 V dc +/- 15%
  • System Type
    Emitter/Receiver Pair
  • Trip/Latch Output
    Trip
  • Overall Length (mm)
    173.2
  • Recovery Time
    34 / 203
  • Electrical Safety Class
    III
  • Resolution (mm)
    14
  • OSSD Rating
    24 V dc; 0.3 A max.
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Shock
    10g at 16ms (6000 cycles)
  • SIL Rating
    SIL3; CL3
  • Auxiliary Output
    No
  • Housing Finish
    Clear Polycarbonate/Yellow Polyester
  • Dimensions WxD (mm)
    26.7 x 22.1
  • Fault Output
    No
  • Primary Housing Material
    Polycarbonate
  • IP Rating
    IP65
  • Short Protection
    Yes
  • Feature: ESD Safe
    No
  • Safety Level
    Type 4
  • Number of Pins (Receiver/Emitter)
    4,4
  • Supply Current
    100
  • Fixed Blanking
    No
  • Housing Material
    Aluminum, Polycarbonate
  • Vibration
    10-55 Hz at 0.35 mm
  • Feature: End-to-End Sensing
    Yes
  • Test Input
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
