SLLP23-700P88 Banner Safety Light Curtains

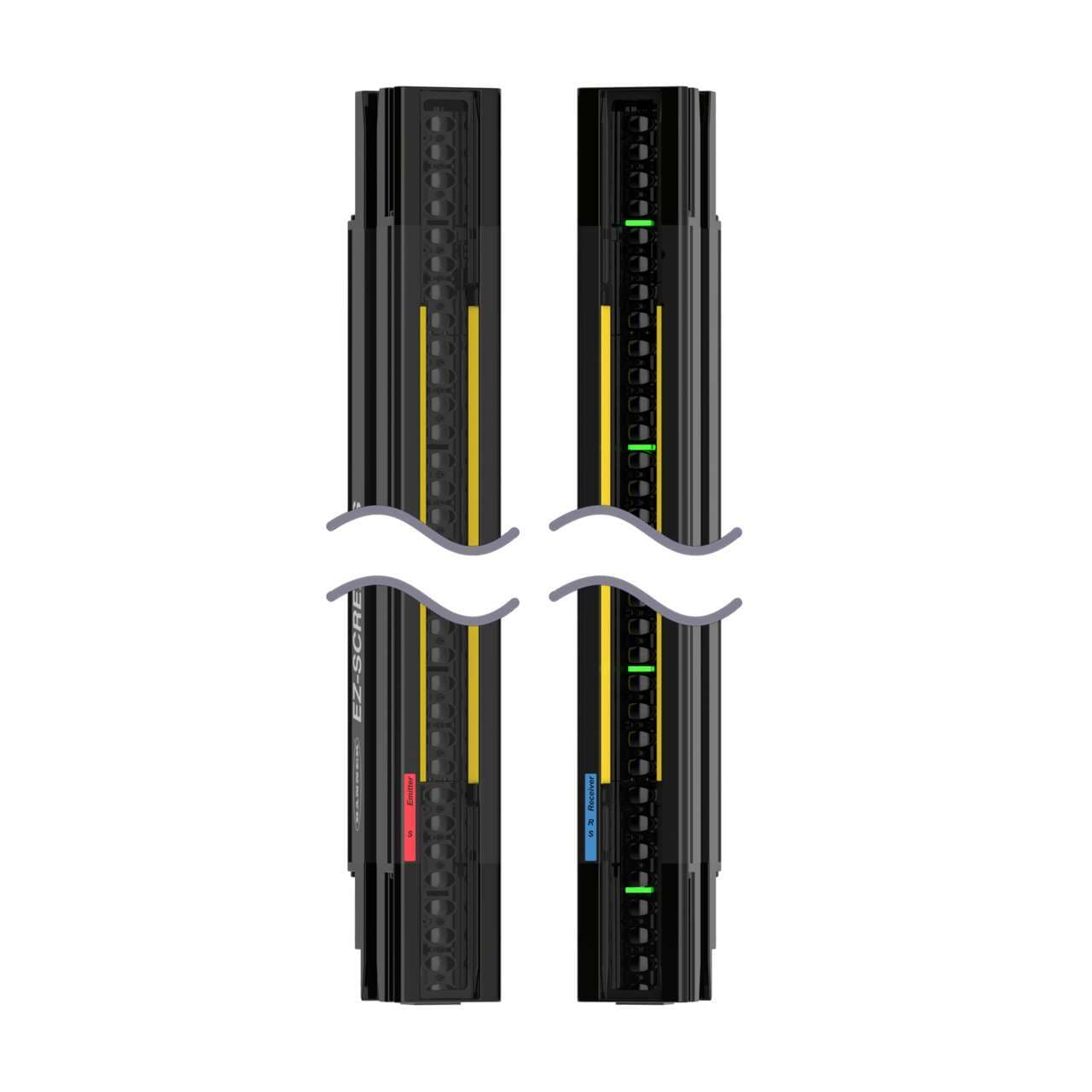

Banner Engineering SLLP23-700P88 is a safety light curtain from the LS series type 4 safety light curtains, designed for hand detection with a resolution of 23mm. This unit features an emitter and receiver pair housed in aluminum with acrylic lenses and zinc end caps. It comes pre-wired with a 300mm pigtail terminated with an 8-pin Euro-style M12 connector. The protective height is 700mm, and the housing is colored yellow. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLLP23-700P88 offers a degree of protection rated at IP65 and IP67, with dimensions of 36mm in width, 704mm in height, and 45mm in depth. The light curtain features a 23mm beam spacing/pitch and a sensing distance ranging from 10cm to 12m. It includes two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), one digital output (24Vdc; 100mA; sourcing/PNP transistor) for CSSI status, and one digital output (24Vdc; sourcing/PNP transistor; 70mA) for emitter FAULT. Additionally, it has one digital input (10Vdc-30Vdc; 30mA) for EDM and one for scan code input, with a response time of 13.3ms.
