SLM180B6QPMA Banner Retroreflective Sensors

SLM180B6QPMA on Powermatic Associates
Banner

Part#:SLM180B6QPMA

Alt. Part#:79223

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

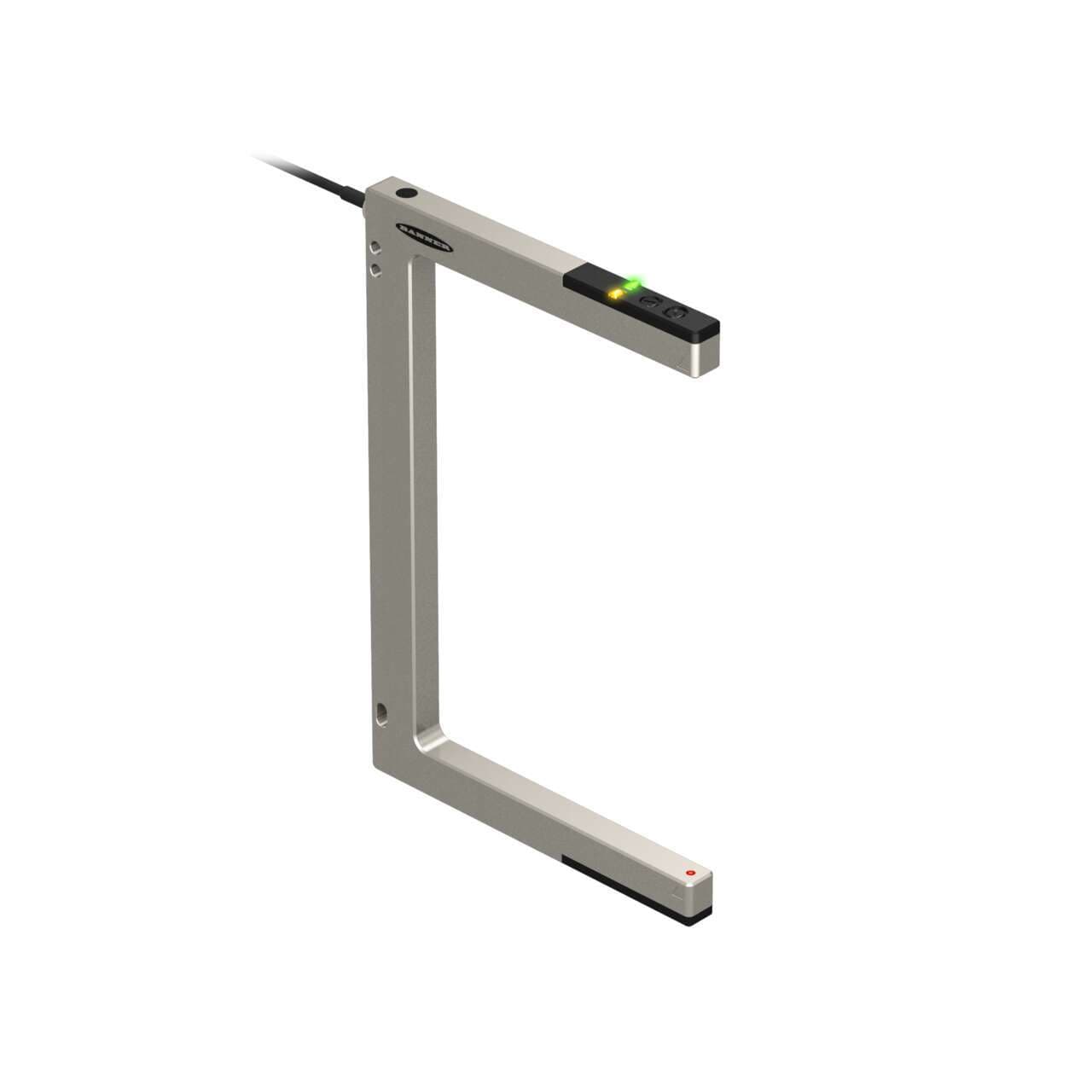

SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor; Slot Width: 180 mm; Input 10-30 V dc; Output: Bipolar: 1 NPN 1 PNP; 150 mm (6 in) M12 PUR Pigtail QD

Product Details

  • Weight
    635.0288 g
  • Country Of Origin
    CN
  • Operation
    Light/Dark Operate
  • Minimum Object Detection (mm)
    .9
  • Max Sensing Range (mm)
    180
  • Minimum Object Detection [mm]
    0.9
  • NEMA Rating
    NEMA 6
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • IP Rating
    IP67
  • Max Op. Temperature (°C)
    60
  • Min Op. Temperature (°C)
    -20
  • Indicator
    LEDs
  • Delay at Power-up (ms)
    100
  • Special Feature: Remote Teach
    No
  • Lens Material
    Acrylic
  • Adjustments
    Potentiometer
  • Repeatability (µs)
    95
  • Power Supply/Supply Voltage
    10-30 V dc
  • Output response time (ms)
    0.5
  • Number of Pins
    4
  • Slot Overall Depth (mm)
    140
  • Outputs
    Bipolar (NPN & PNP)
  • Quick Disconnect Type
    M12 (Euro)
  • Slot Depth/Array Length (mm)
    120.7
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Power
    DC
  • Connection
    Pigtail PUR QD
  • Cable Length (m)
    0.2
  • Housing Style
    Slot
  • Primary brand
    Banner Engineering
  • Shape
    Slot
  • Connection type
    Pre-wired with 6" / 150mm PUR pigtail terminated with 4-pin Euro-style M12 connector
  • Order code / Manufacturer SKU
    79223
  • Main function
    Sensor (Photo-electric)
  • Response time
    0.5ms / 0.0005 s
  • Ambient air temperature for operation
    -20...+60 °C
  • Net Depth (mm)
    12 mm
  • Sub-range name
    SLM series
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Degree of protection
    IP67 NEMA 6
  • Compliant with standard(s)
    cULus Listed CE
  • Functions
    Photo-electric rugged metal slot / optical fork sensor green LED (power ON) yellow LED (output state) potentiometer adjustment
  • Operating mode
    Light-ON Dark-ON
  • Net Height (mm)
    140 mm
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Material
    Nickel-plate die-cast Zinc housing Acrylic lns. PUR pigtail
  • Net Width (mm)
    (passageway) 180 mm212 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLM180B6QPMA on Powermatic Associates is $261.00. Order now.

About the product

Banner Engineering SLM180B6QPMA is a photo-electric rugged metal slot/optical fork sensor within the SLM series, featuring potentiometer adjustment for precise control. It is constructed from nickel-plated die-cast zinc housing with an acrylic lens and a polyurethane (PUR) cable sheath for durability. This sensor is pre-wired with a 6" / 150mm PUR cable that terminates with a 4-pin Euro-style M12 connector, ensuring easy and secure connection. It operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and can function within an ambient air temperature range of -20 to +60°C. The SLM180B6QPMA offers a high degree of protection with an IP67 NEMA 6 rating, making it suitable for challenging environments. Its slot (U-shaped) design has a passageway width of 180mm and a height of 140mm, with a net depth of 12mm. This sensor features 1 x digital output (PNP/NPN transistor), a sensing distance of 180mm, and a rapid response time of 0.5ms / 0.0005 s. It supports both Light-ON and Dark-ON operating modes for versatile application.
