SLM50B6Q Banner Retroreflective Sensors

SLM50B6Q on Powermatic Associates
Banner

Part#:SLM50B6Q

Alt. Part#:11720

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

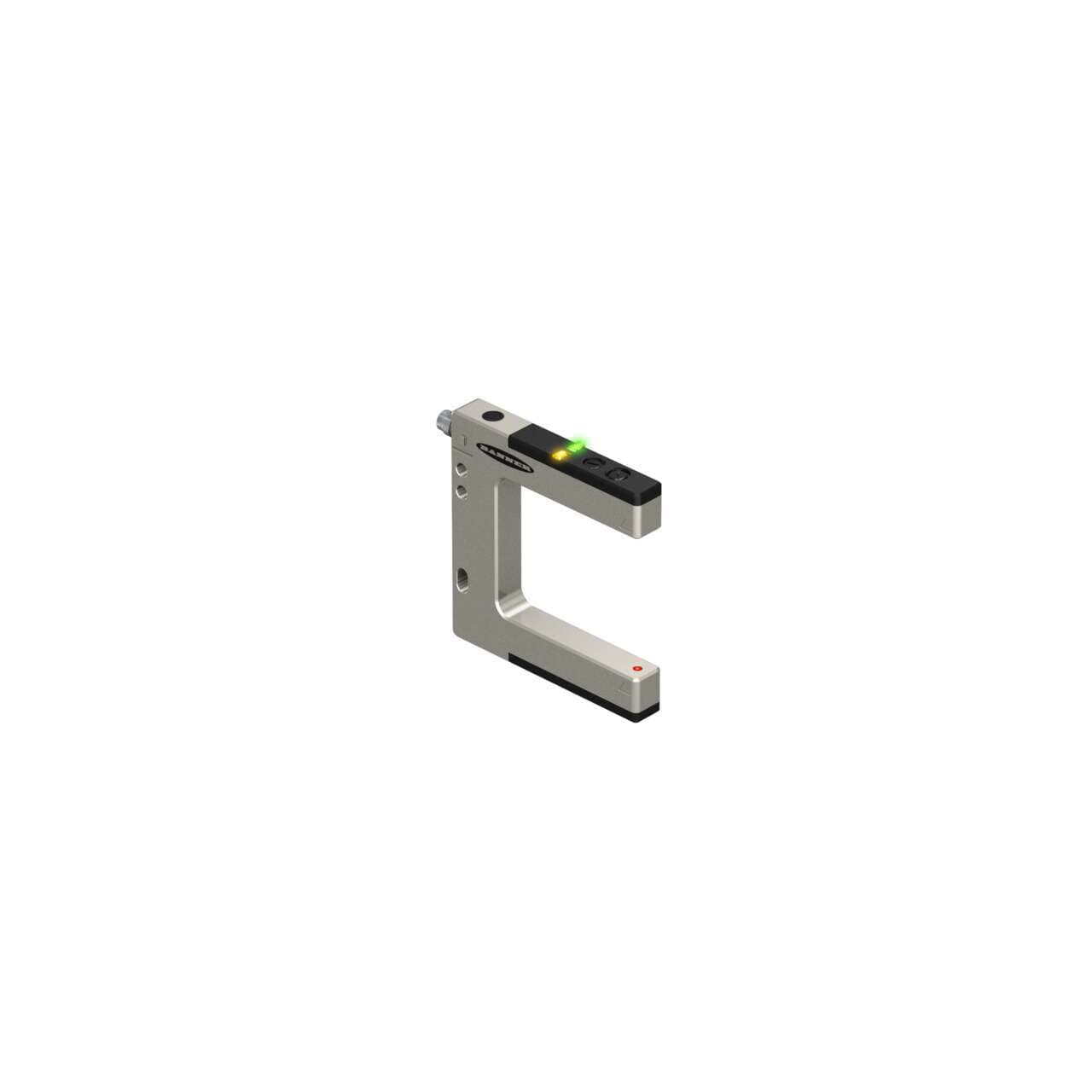

SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor; Slot Width: 50 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M8 Integral QD

Product Details

  • Weight
    225.888816 g
  • Country Of Origin
    CN
  • NEMA Rating
    NEMA 6
  • Indicator
    LEDs
  • Max Op. Temperature (°C)
    60
  • IP Rating
    IP67
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Minimum Object Detection [mm]
    0.6
  • Lens Material
    Acrylic
  • Operation
    Light/Dark Operate
  • Min Op. Temperature (°C)
    -20
  • Delay at Power-up (ms)
    100
  • Adjustments
    Potentiometer
  • Power Supply/Supply Voltage
    10-30 V dc
  • Output response time (ms)
    0.5
  • Repeatability (µs)
    95
  • Special Feature: Remote Teach
    No
  • Slot Overall Depth (mm)
    80
  • Number of Pins
    3
  • Outputs
    Bipolar (NPN & PNP)
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Minimum Object Detection (mm)
    .6
  • Quick Disconnect Type
    M8 (Pico)
  • Slot Depth/Array Length (mm)
    60.8
  • Connection
    Integral QD
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Housing Style
    Slot
  • Power
    DC
  • Max Sensing Range (mm)
    50
  • Main function
    Sensor (Photo-electric)
  • Shape
    Slot
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Net Height (mm)
    80 mm
  • Sub-range name
    SLM series
  • Operating mode
    Light-ON Dark-ON
  • Compliant with standard(s)
    cULus Listed CE
  • Net Width (mm)
    (passageway) 50 mm82 mm
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Connection type
    Pre-equipped with 3-pin Pico-style M8 connector
  • Order code / Manufacturer SKU
    11720
  • Net Depth (mm)
    12 mm
  • Primary brand
    Banner Engineering
  • Functions
    Photo-electric rugged metal slot / optical fork sensor green LED (power ON) yellow LED (output state) potentiometer adjustment
  • Degree of protection
    IP67 NEMA 6
  • Ambient air temperature for operation
    -20...+60 °C
  • Response time
    0.5ms / 0.0005 s
  • Material
    Nickel-plate die-cast Zinc housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLM50B6Q on Powermatic Associates is $184.00. Order now.

About the product

Banner Engineering SLM50B6Q is a photo-electric rugged metal slot/optical fork sensor within the SLM series, featuring a potentiometer adjustment design. This sensor is constructed from nickel-plated die-cast zinc housing with an acrylic lens. It comes pre-equipped with a 3-pin Pico-style M8 connector for connectivity. The SLM50B6Q operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and can function within an ambient air temperature range of -20 to +60°C. It offers a degree of protection rated at IP67 NEMA 6, making it suitable for various industrial environments. The sensor's shape is slot (U-shaped) with a passageway width of 50 mm and an overall width of 82 mm, a height of 80 mm, and a depth of 12 mm. It features 1 x digital output (PNP/NPN transistor), a sensing distance of 50mm, and a rapid response time of 0.5ms / 0.0005 s. The operating modes available are Light-ON and Dark-ON.
