SLM80B6 W/30 Banner Retroreflective Sensors

SLM80B6 W/30 on Powermatic Associates
Banner

Part#:SLM80B6 W/30

Alt. Part#:75019

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

SLM Series: Rugged Nickel-Plated Metal Fixed-Distance Slot Sensor; Slot Width:80 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 9 m (30 ft) Cable

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    CN
  • Cable Length (m)
    9
  • Indicator
    LEDs
  • Lens Material
    Acrylic
  • Sensing Mode (Detailed)
    Emitter/Receiver Pair
  • Max Op. Relative Humidity (%)
    95% @ 55°C
  • Power
    DC
  • Minimum Object Detection (mm)
    .75
  • Primary Housing Material
    Zinc Die-Cast with Nickel-Plating
  • Repeatability (µs)
    95
  • Max Op. Temperature (°C)
    60
  • NEMA Rating
    NEMA 6
  • Connection
    Cable
  • Special Feature: Remote Teach
    No
  • Minimum Object Detection [mm]
    0.75
  • Slot Depth/Array Length (mm)
    60.8
  • Power Supply/Supply Voltage
    10-30 V dc
  • Quick Disconnect Type
    No QD
  • Number of Pins
    4
  • Housing Style
    Slot
  • Slot Overall Depth (mm)
    80
  • Max Sensing Range (mm)
    80
  • Output response time (ms)
    0.5
  • IP Rating
    IP67
  • Outputs
    Bipolar (NPN & PNP)
  • Min Op. Temperature (°C)
    -20
  • Delay at Power-up (ms)
    100
  • Operation
    Light/Dark Operate
  • Adjustments
    Potentiometer

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SLM80B6 W/30 on Powermatic Associates is $231.00. Order now.

About the product

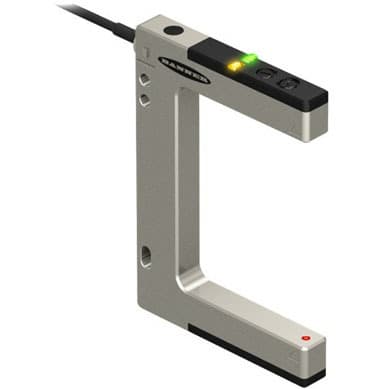

Banner Engineering SLM80B6 W/30 is a photo-electric rugged metal slot/optical fork sensor from the SLM series, featuring potentiometer adjustment for precise control. It is constructed with a nickel-plated die-cast Zinc housing and an Acrylic lens, ensuring durability. This sensor is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads for easy installation. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. Designed to function within an ambient air temperature range of -20 to +60°C, it offers a high degree of protection with an IP67 NEMA 6 rating. The sensor's slot shape has a passageway width of 80mm and a height of 80mm, with a net depth of 12mm. It features 1 x digital output (PNP/NPN transistor), can sense objects up to 80mm away, and responds in 0.5ms / 0.0005 s. Its operating modes include Light-ON and Dark-ON, providing flexibility for various applications.
