SMA30SELB W/30 Banner Proximity Sensors

Name: SMA30SELB W/30
Brand: Banner
Price: 398 USD
Availability: BackOrder

Part#:SMA30SELB W/30

Alt. Part#:32836

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

SM30 Series: Emitter - Frequency B Stainless Stl; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 9 m (30 ft) Cable

Product Details

Weight
859.55684 g
Country Of Origin
US
Connection
Cable
Delay at Power-up (ms)
N/A
Max Op. Relative Humidity [%]
90% @ 50°C
Outputs
N/A
Sensing Beam
Infrared LED
Sensing Mode (Detailed)
Emitter
Cable Length (m)
9
Max Op. Temp. (°C)
70
Special Feature: Water Detection
No
Special Feature: Remote Teach
No
Adjustments
N/A
DeviceNet
No
Power
AC/DC Universal
Power Supply/Supply Voltage
10-30 V dc or 12-240 V ac
Housing Style
Barrel
Quick Disconnect Type
No QD
Primary Housing Material
Stainless Steel
Min Op. Temp. (°C)
-40

Barrel Diameter (mm)

Feature: Hazardous Area

Sensing Mode (General)

Opposed

Output response time (ms)

N/A

Repeatability (µs)

N/A

Feature: Encapsulated

Max Sensing Distance (mm)

150000

Operation

N/A

IP Rating

IP67

Feature: Chemical Resistant

Yes

Number of Pins

Special Feature: Intrinsically Safe

Feature: Timing (Hold/Delay)

NEMA Rating

NEMA 6P

Opposed Mode Emitter/Receiver

Emitter

Indicator

LEDs

Feature: Audible

Lens Material

Acrylic

IO Link

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SMA30SELB W/30 on Powermatic Associates is $398.00. Order now.

About the product

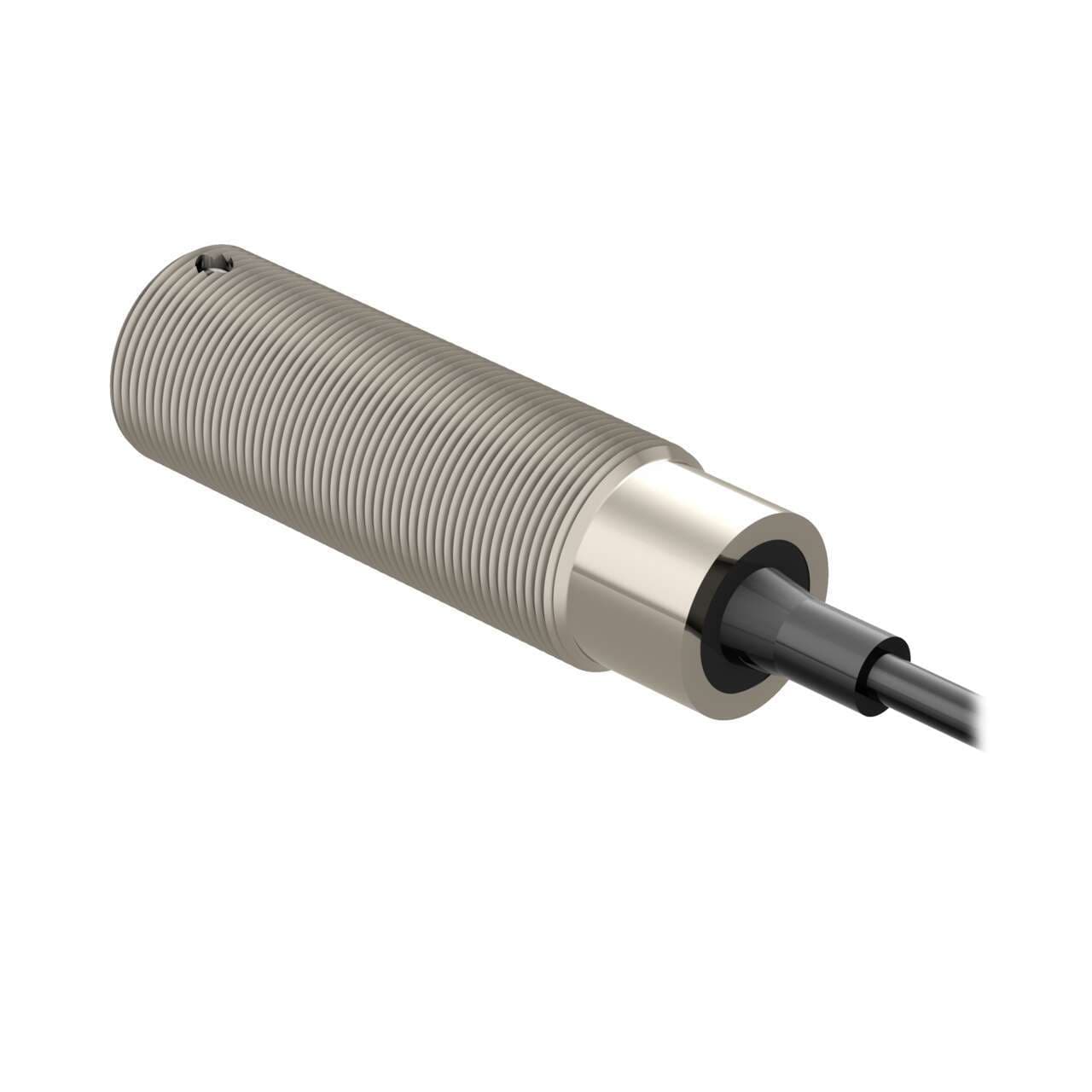

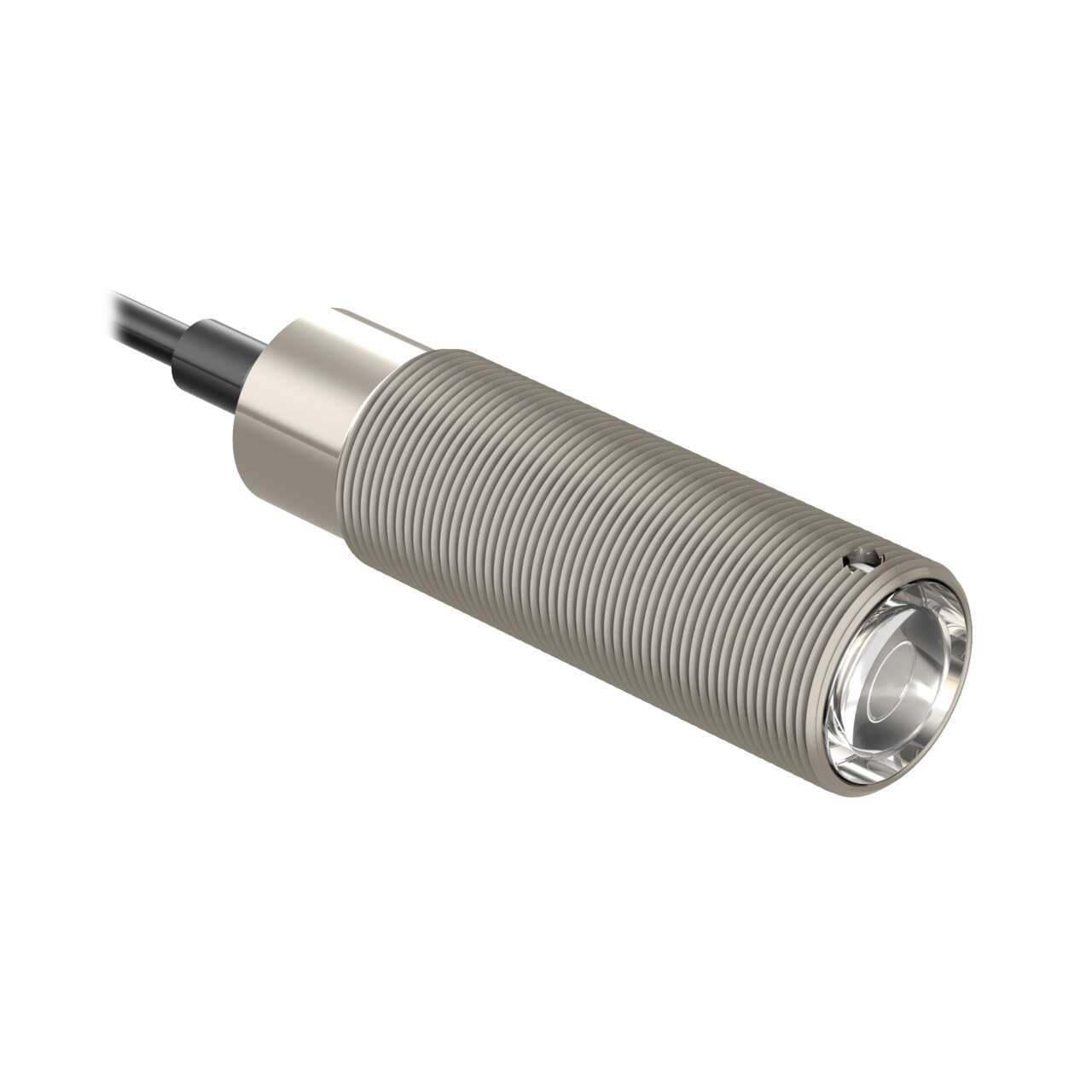

Banner Engineering SMA30SELB W/30 is a photo-electric sensor designed for through-beam system applications, specifically as an emitter within the SM30 series. This part features a stainless steel housing in an M30 cylindrical threaded/barrel shape, ensuring durability and compatibility with various industrial environments. It is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads, facilitating straightforward installation. The sensor operates within a supply voltage range of 12Vac-240Vac (with 200Vac / 220Vac nominal) and 10Vdc-30Vdc (with 12Vdc / 24Vdc nominal), accommodating a wide range of power supply configurations. It is designed to function in ambient air temperatures ranging from -40 to +70 degrees Celsius and offers a high degree of protection with an IP67 NEMA 6P rating. The SMA30SELB W/30 boasts a sensing distance of up to 150m and utilizes infrared (IR) light with a wavelength of 880 nm for detection, ensuring a quick response time of 10ms / 0.01 s.

SMA30SELB W/30 Related Documents

03541.pdf

$398.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$398.00

$398.00 each
