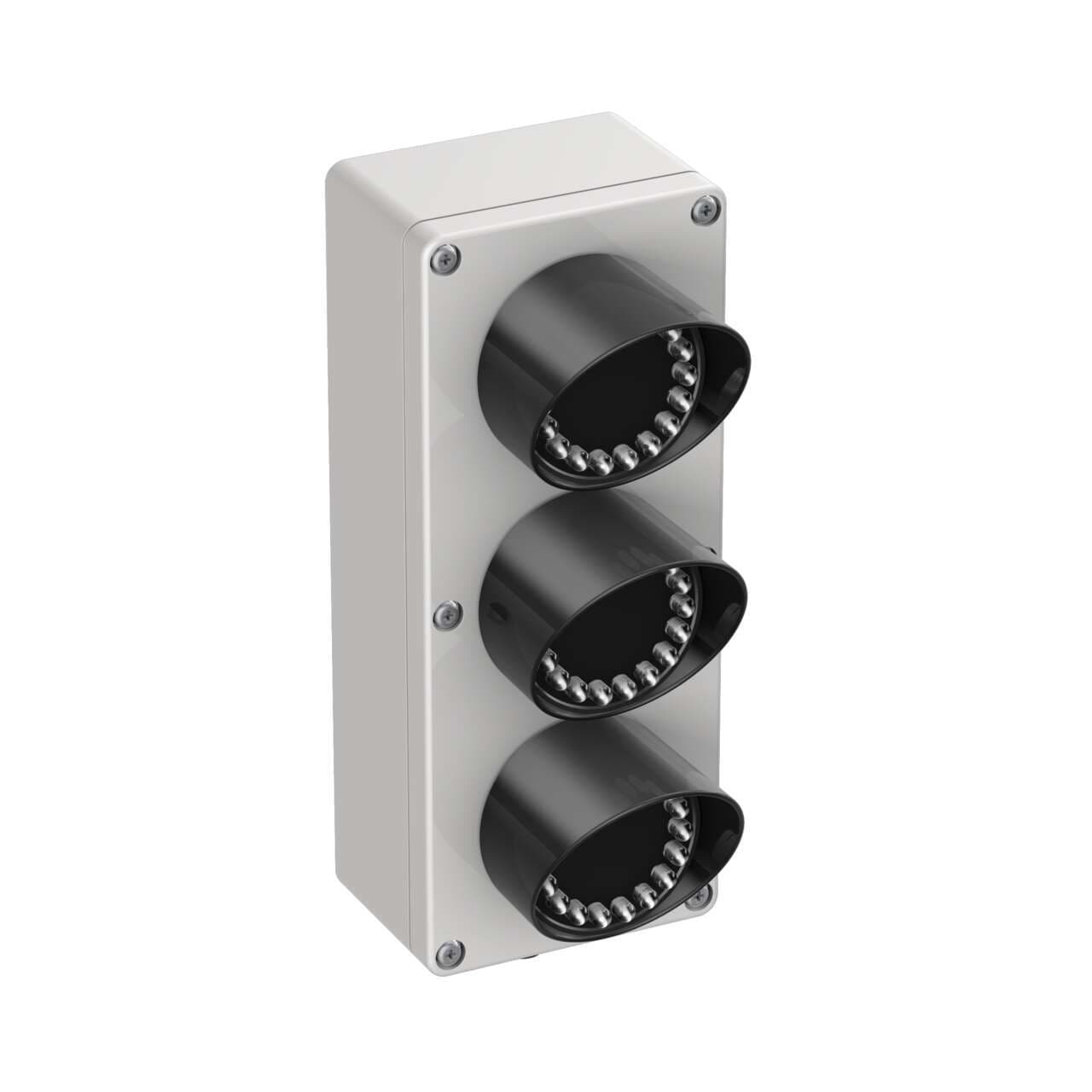

SP350BGRPQ Banner Signal Beacons

SP350BGRPQ on Powermatic Associates
Banner
  • SP350BGRPQ
  • SP350BGRPQ

Part#:SP350BGRPQ

Alt. Part#:800272

Manufacturer:Banner

Category:Signal Beacons

Product Lifecycle:Active

Product description

EZ-LIGHT Traffic Series: 3-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Blue Green Red; 4-pin M12 Integral QD

Product Details

  • Weight
    635.0288 g
  • Country Of Origin
    US
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1
    Solid On
  • Color Option 3
    Red
  • Environmental Rating
    IP65
  • Application: Traffic Light
    Yes
  • Primary Housing Material
    Polycarbonate
  • Product Size (mm)
    Other
  • Color 2 - Wavelength/Color Temp/Coordinates
    528 nm
  • Power
    DC
  • Lumens Color 1
    12.0
  • Physical Dimensions (LxWxH or DxH mm)
    210.0 x 80.0 x 105.2
  • Indication Intensity
    High Brightness & Daylight Visible
  • Mounting Thread
    No Thread
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 3
    20.0
  • Feature: Quick Disconnect
    Yes
  • Power Source
    DC
  • Color 1 - Wavelength/Color Temp/Coordinates
    475 nm
  • Max Input Response Time (ms)
    10
  • Feature: Chemical Resistant
    No
  • Indication
    Yes
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    120
  • Color 3 - Wavelength/Color Temp/Coordinates
    625 nm
  • Housing Style
    Flat Mount - Signal Light
  • Modbus RTU
    No
  • Number of Colors / Segments
    3
  • Color Option 2
    Green
  • Number of Input Pins/Conductors
    4
  • Feature: Hazardous Area
    No
  • Wireless
    No
  • Cable Length (m)
    0.15
  • Connection
    Integral QD
  • Supply Voltage
    15-30 V dc
  • Multi-Color Device
    Simultaneous Colors On
  • Min Op. Temperature (°C)
    -40
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Input Type
    PNP
  • Max Op. Temperature (°C)
    50
  • Color Option 1
    Blue
  • IO Link
    No
  • Lumens Color 2
    57.0

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SP350BGRPQ on Powermatic Associates is $410.00. Order now.

About the product

EZ-LIGHT Traffic Series: 3-Indicator Daylight Visible, Voltage: 15-30V dc; Housing: Polycarbonate; IP65, Input: PNP; Colors: Blue Green Red, Euro 4-pin integral connector
