SSA-EB1ML1P-22 Banner Emergency Stop Push Buttons

SSA-EB1ML1P-22 on Powermatic Associates
Banner
  • SSA-EB1ML1P-22
  • SSA-EB1ML1P-22

Part#:SSA-EB1ML1P-22

Alt. Part#:42218

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

SSA-EB1 Panel-mount Emergency Stop Push Button; Lockable Illuminated 44 mm Actuator; Contacts: 2NC/2NO; Screw Terminals; 30 mm mounting hole

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    JP
  • Primary Housing Material
    Polycarbonate
  • Device Type
    Push Button
  • Connection Type
    Screw Terminal
  • Actuated Color
    Red or OFF
  • Min Operating Temperature ( °C)
    -25
  • Button Shroud
    No
  • Mounting Thread/Style
    Panel
  • Button Diameter (mm)
    44
  • Illumination Type
    Button
  • Actuation
    Twist-to-Release
  • Dimensions (HxWxD mm )
    105 x 37 x 44
  • IP Rating
    IP65
  • Contact Quantity
    2 NC, 2 NO
  • Armed Color (Solid)
    OFF or Red
  • Feature: Illuminated
    Yes
  • Contact Rating
    2 A @ 24 V dc
  • Feature: Lockable
    Yes
  • Max Operating Temperature ( °C)
    55
  • Housing Style
    Base
  • Actuator/Button Material
    Thermoplastic
  • Feature: Quick Disconnect
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1ML1P-22 on Powermatic Associates is $151.00. Order now.

About the product

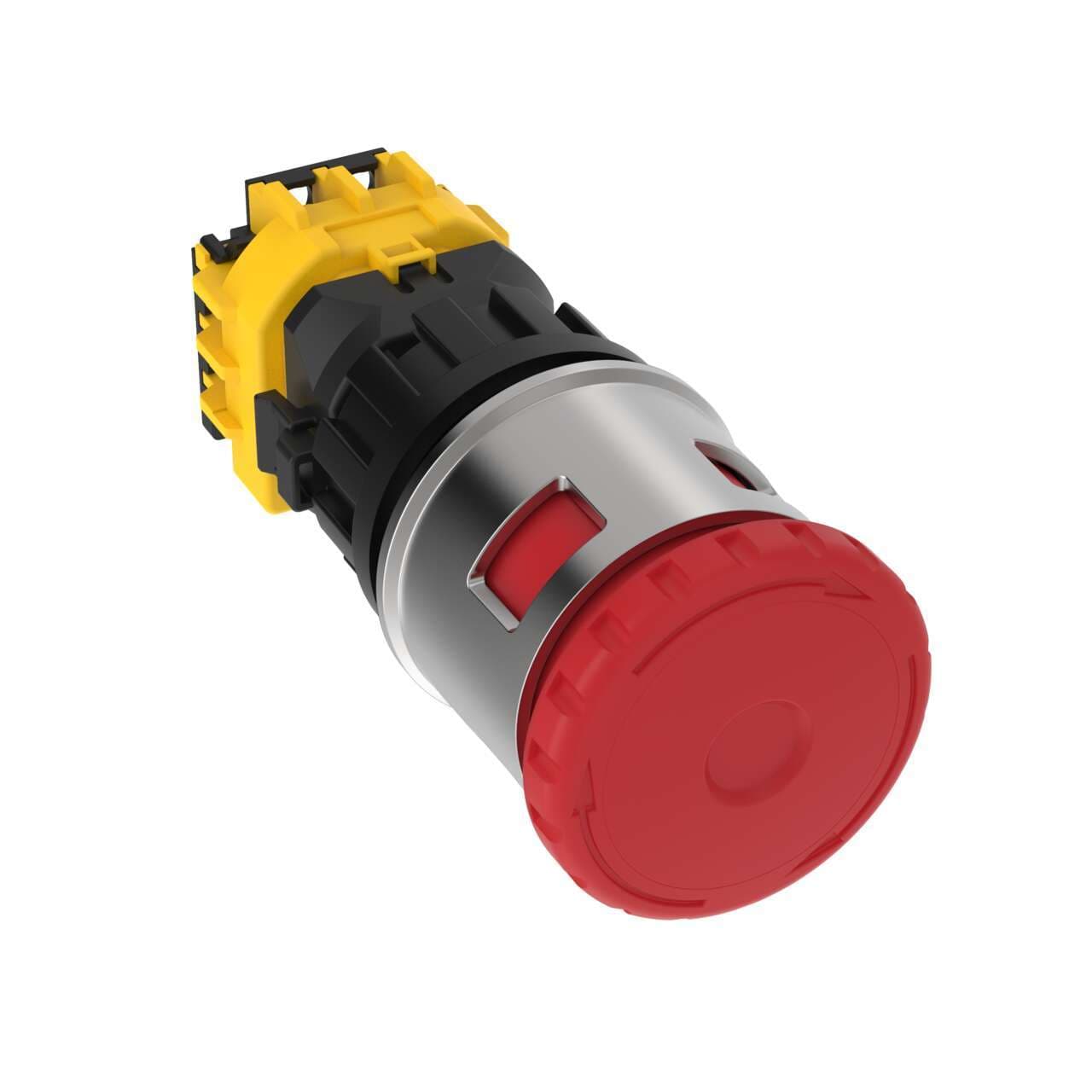

Banner Engineering SSA-EB1ML1P-22 is a stand-alone illuminated emergency STOP (E-Stop) pushbutton designed with a padlockable feature for enhanced security. It features a polycarbonate (PC) base and a red actuator with a 44mm mushroom head for easy identification and operation. The connection is facilitated through a screw-clamp terminal connection. This push-button operates with a supply voltage of 24Vdc and is designed for flush mounting in a 30mm hole. It is suitable for operation in ambient air temperatures ranging from -25°C to +55°C. The SSA-EB1ML1P-22 offers a degree of protection rated at IP65, ensuring durability against dust and water ingress. Its operating mode is push-to-stop stay-put (maintained / latched) with a twist-to-release mechanism. The device includes 2 Normally Open (NO) and 2 Normally Closed (NC) contacts to accommodate various wiring configurations.

SSA-EB1ML1P-22 Related Documents

194992.pdf
