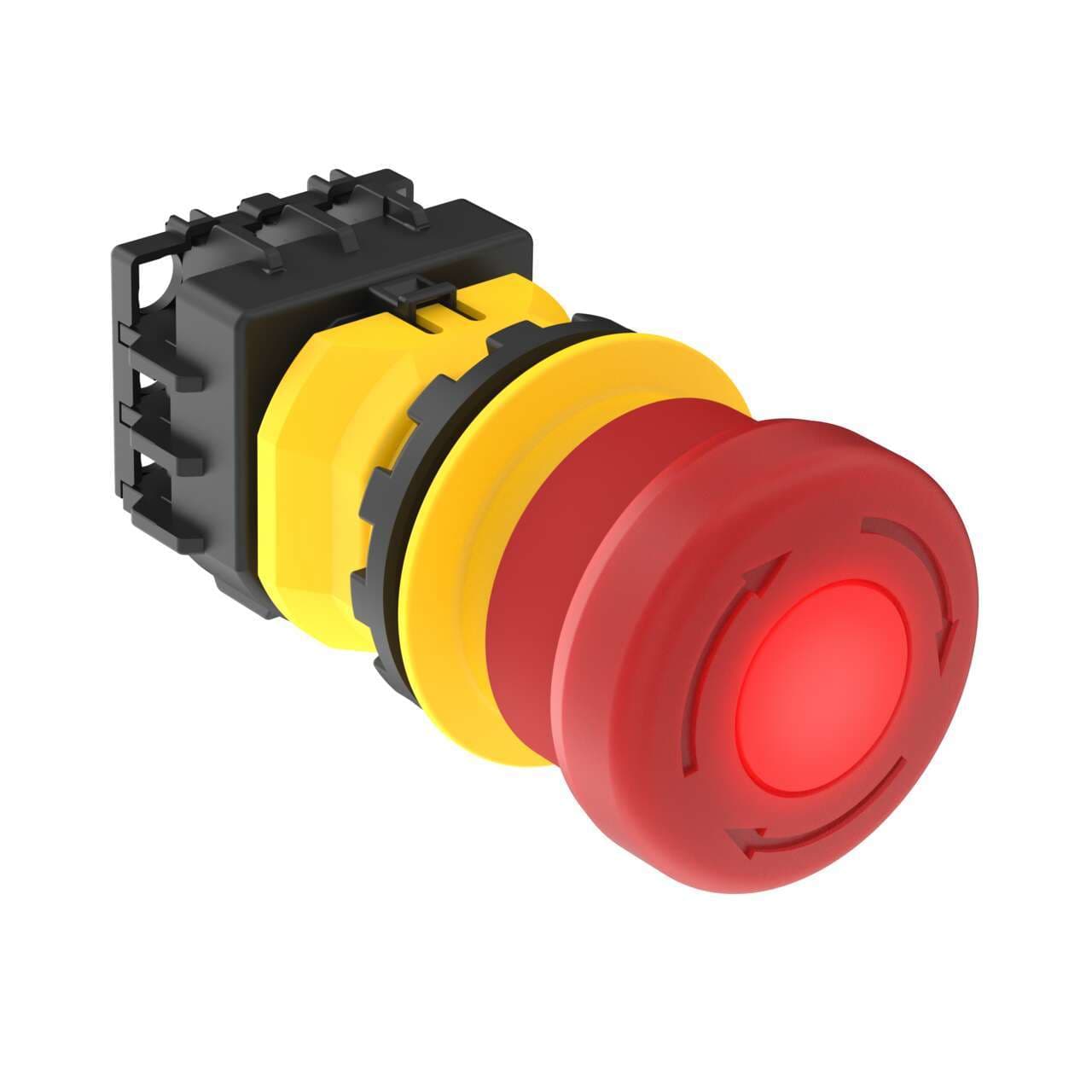

SSA-EB1PL1-02 Banner Emergency Stop Push Buttons

SSA-EB1PL1-02 on Powermatic Associates
Banner
  • SSA-EB1PL1-02
  • SSA-EB1PL1-02

Part#:SSA-EB1PL1-02

Alt. Part#:42206

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

SSA-EB1 Panel-mount Emergency Stop Push Button; Illuminated 40 mm Actuator; Contacts: 2NC; Screw Terminals; 30 mm mounting hole

Product Details

  • Weight
    69.9438864 g
  • Country Of Origin
    JP
  • Connection Type
    Screw Terminal
  • Contact Rating
    2 A @ 30 V dc
  • Primary Housing Material
    Polycarbonate
  • Actuator/Button Material
    Thermoplastic
  • Button Shroud
    No
  • Dimensions (HxWxD mm )
    81 x 37 x 40
  • Housing Style
    Base
  • Feature: Lockable
    No
  • Max Operating Temperature ( °C)
    55
  • Device Type
    Push Button
  • Actuated Color
    Red or OFF
  • Mounting Thread/Style
    Panel
  • Actuation
    Twist/Pull-to-Release
  • Illumination Type
    Button
  • Min Operating Temperature ( °C)
    -25
  • Armed Color (Solid)
    OFF or Red
  • Contact Quantity
    2 NC
  • Button Diameter (mm)
    40
  • Feature: Illuminated
    Yes
  • IP Rating
    IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PL1-02 on Powermatic Associates is $73.00. Order now.

About the product

Banner Engineering SSA-EB1PL1-02 is a stand-alone illuminated emergency STOP (E-Stop) push-button designed with a polycarbonate (PC) base and a 40mm mushroom head for easy activation. It features LED illumination for clear visibility and operates with a push-to-stop, stay-put (maintained / latched) mechanism, requiring a twist-to-release action. The connection is facilitated through a screw-clamp terminal connection, ensuring secure wiring. This E-Stop push-button is equipped with 2NC contacts for safety measures, operates on a 24Vdc supply voltage, and can be flush mounted in a 30mm hole. It is designed to function within an ambient air temperature range of -25°C to +55°C and offers a degree of protection rated at IP65, making it suitable for various industrial environments. The actuator color is red, emphasizing its function as an emergency stop control.
