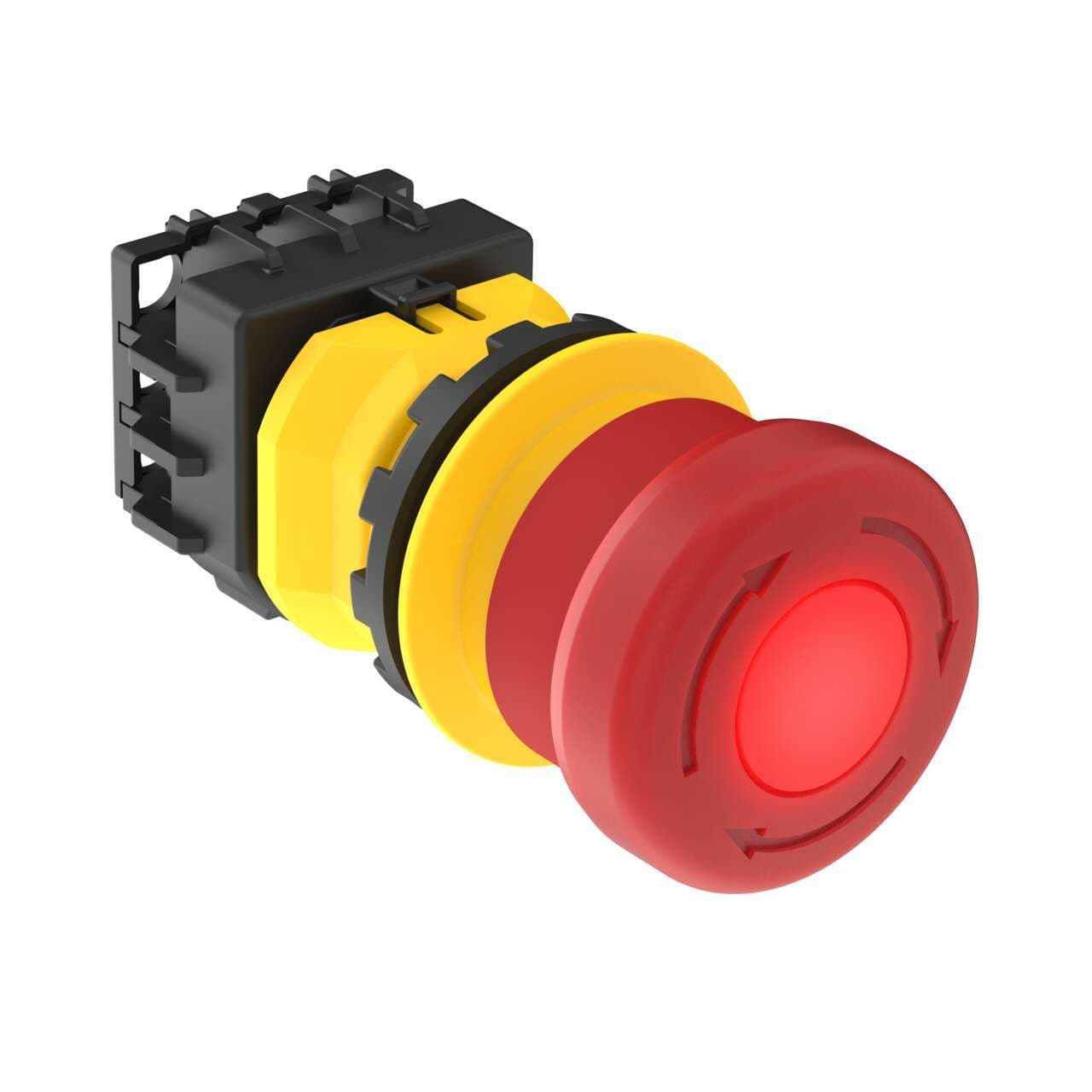

SSA-EB1PL1-13 Banner Emergency Stop Push Buttons

SSA-EB1PL1-13 on Powermatic Associates
Banner
  • SSA-EB1PL1-13
  • SSA-EB1PL1-13

Part#:SSA-EB1PL1-13

Alt. Part#:42208

Manufacturer:Banner

Category:Emergency Stop Push Buttons

Product Lifecycle:Active

Product description

SSA-EB1 Panel-mount Emergency Stop Push Button; Illuminated 40 mm Actuator; Contacts: 3NC/1NO; Screw Terminals; 30 mm mounting hole

Product Details

  • Weight
    45.3592 g
  • Country Of Origin
    JP
  • Armed Color (Solid)
    OFF or Red
  • Device Type
    Push Button
  • Button Diameter (mm)
    40
  • Illumination Type
    Button
  • Mounting Thread/Style
    Panel
  • IP Rating
    IP65
  • Feature: Illuminated
    Yes
  • Contact Quantity
    3 NC, 1 NO
  • Housing Style
    Base
  • Min Operating Temperature ( °C)
    -25
  • Connection Type
    Screw Terminal
  • Feature: Lockable
    No
  • Actuator/Button Material
    Thermoplastic
  • Primary Housing Material
    Polycarbonate
  • Contact Rating
    2 A @ 24 V dc
  • Actuated Color
    Red or OFF
  • Dimensions (HxWxD mm )
    81 x 37 x 40
  • Actuation
    Twist/Pull-to-Release
  • Button Shroud
    No
  • Max Operating Temperature ( °C)
    55

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of SSA-EB1PL1-13 on Powermatic Associates is $89.00. Order now.

About the product

Banner Engineering SSA-EB1PL1-13 is a stand-alone illuminated emergency STOP (E-Stop) pushbutton designed with a polycarbonate (PC) base and a 40mm mushroom head for clear visibility and easy operation. It features LED illumination for enhanced visibility in various lighting conditions. The connection is facilitated through a screw-clamp terminal connection, ensuring a secure and reliable installation. This pushbutton operates with a red actuator for immediate recognition in emergency situations. It is equipped with 1NO+3NC contacts to accommodate a variety of circuit configurations. The SSA-EB1PL1-13 requires a 24Vdc supply voltage and is designed for flush mounting in a 30mm hole, making it versatile for different panel designs. It operates efficiently within an ambient air temperature range of -25°C to +55°C. With an IP65 degree of protection, it is well-suited for use in environments where dust and water resistance are necessary. The operating mode is a push-to-stop stay-put (maintained/latched) mechanism with a twist-to-release function, providing a clear and intuitive method for emergency shutdowns. This model includes 1 Normally Open (NO) auxiliary contact and 3 Normally Closed (NC) auxiliary contacts for comprehensive control and safety measures.

SSA-EB1PL1-13 Related Documents

194992.pdf
