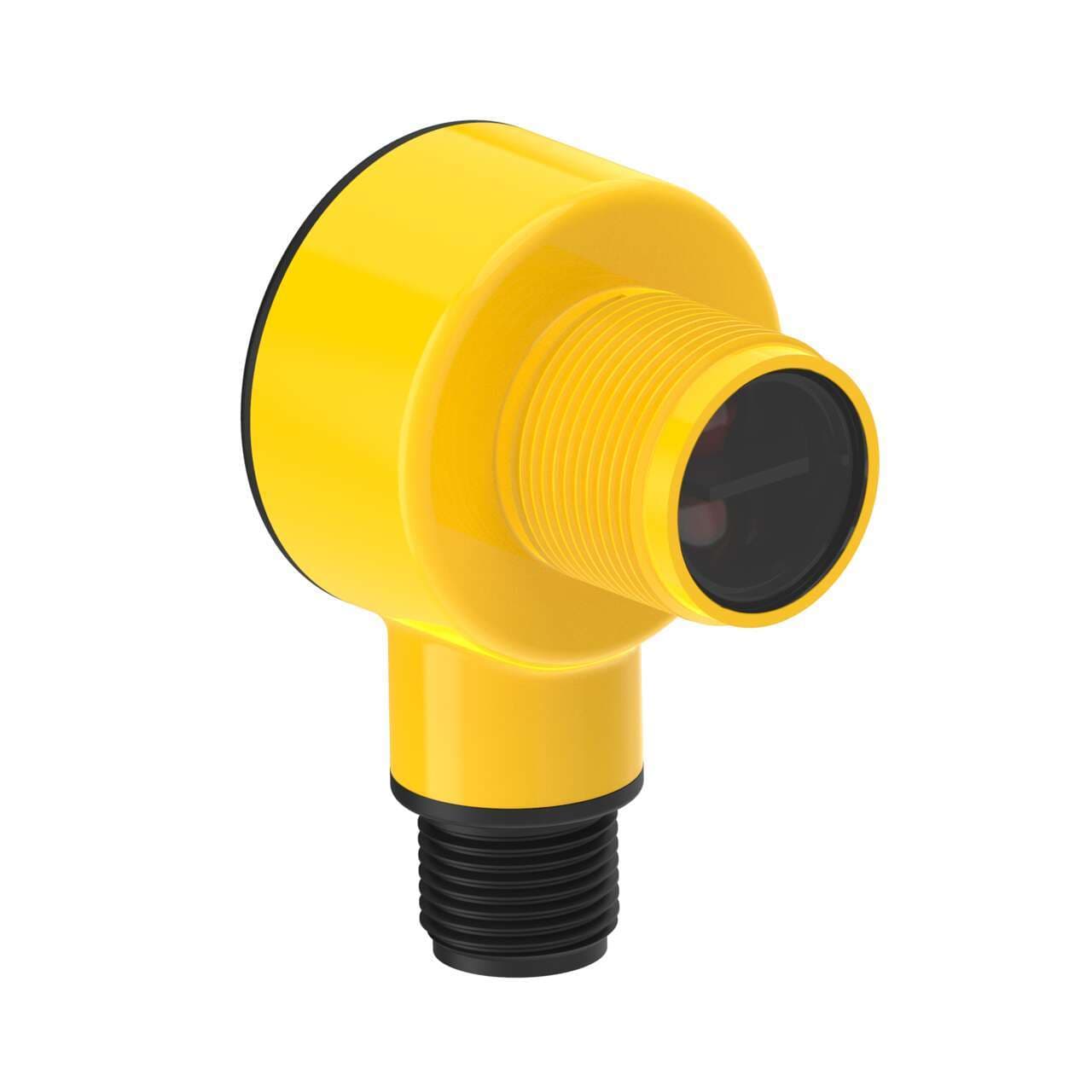

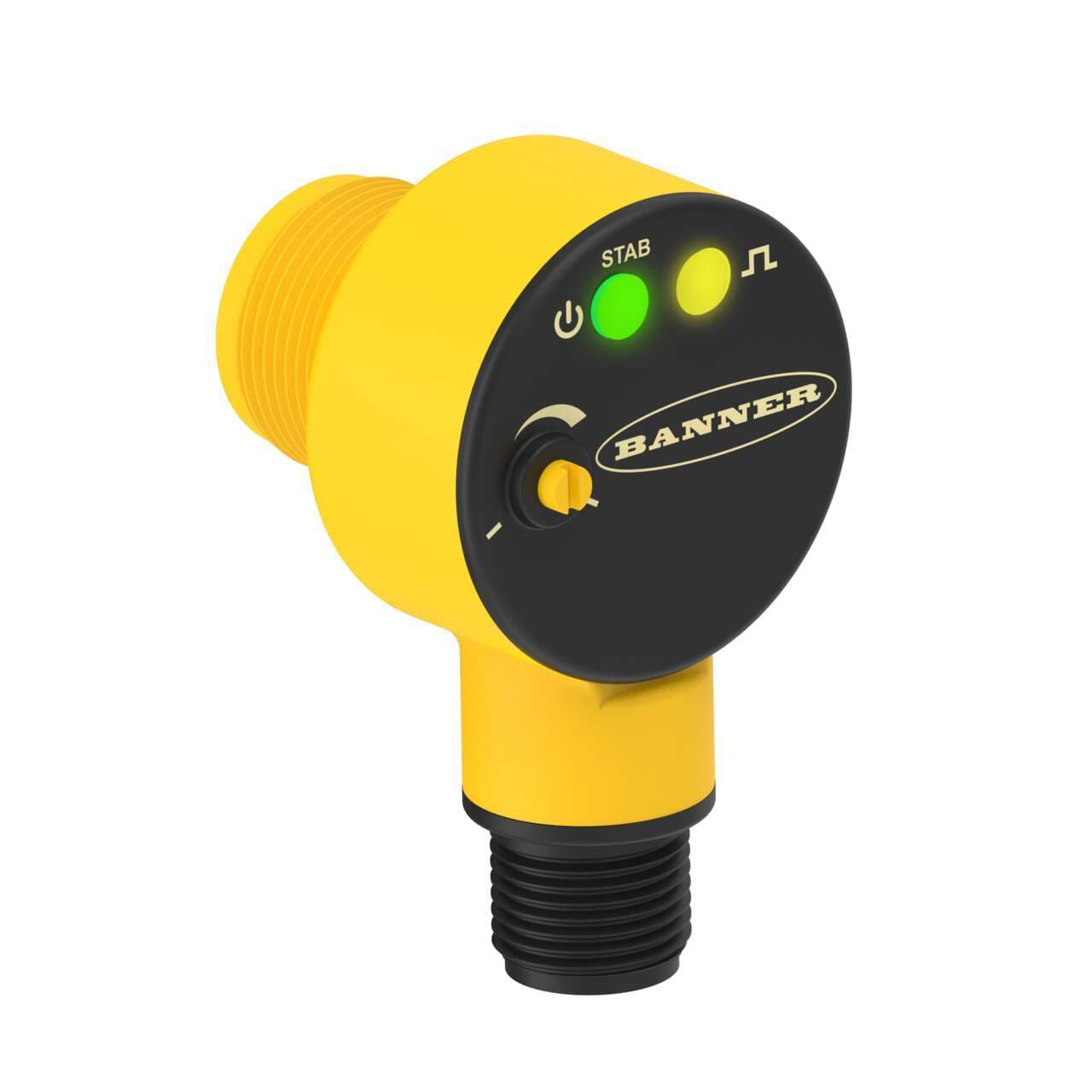

T18-2VNDL-Q8 Banner Proximity Sensors

Name: T18-2VNDL-Q8
Brand: Banner
Price: 83 USD
Availability: BackOrder

Part#:T18-2VNDL-Q8

Alt. Part#:802637

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

T18-2 Series: Diffuse Reflective with Pot; Range: 750 mm; Input: 10-30 V dc; Outputs: Complementary NPN; 4-pin M12 Integral QD

Product Details

Weight
27.21552 g
Country Of Origin
MX
Lens Material
Acrylic
IO Link
No
Max Sensing Distance (mm)
750
Output response time (ms)
1.5
Feature: Washdown Rated
Yes
Feature: Hazardous Area
No
Primary Housing Material
Thermoplastic
Sensing Beam Wavelength
624
Feature: Ecolab Certified
Yes
Feature: Audible
No
Sensing Mode (General)
Proximity
Min Op. Temp. (°C)
-40
Delay at Power-up (ms)
500
Adjustments
Potentiometer
Operation
Light/Dark Operate
IP Rating
IP67, IP68, IP69
Barrel Diameter (mm)
18
DeviceNet
No

Sensing Mode (Detailed)

Diffuse

Special Feature: Remote Teach

Power Supply/Supply Voltage

10-30 V dc

Feature: Timing (Hold/Delay)

Feature: Encapsulated

Yes

Housing Style

Barrel

Max Op. Temp. (°C)

NEMA Rating

NEMA 6P

Input/Output

Discrete

Repeatability (µs)

100

Indicator

Indicator LEDs

Power

Connection

Integral QD

Special Feature: Water Detection

Sensing Beam

Visible Red LED

Quick Disconnect Type

M12 (Euro)

Number of Pins

Max Op. Relative Humidity [%]

95% @ 50°C

Outputs

NPN

Special Feature: Intrinsically Safe

Opposed Mode Emitter/Receiver

N/A

Feature: Chemical Resistant

Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VNDL-Q8 on Powermatic Associates is $83.00. Order now.

About the product

Banner Engineering T18-2VNDL-Q8 is a photo-electric sensor from the T18-2 series, designed with a diffuse mode pot range potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor can function within an ambient air temperature range of -40 to +70°C and offers a high degree of protection rated at IP67, IP68, IP69K, and NEMA 6P. Its M18 cylindrical threaded/barrel shape is designed for easy installation. The T18-2VNDL-Q8 provides 1 x digital output (NPN transistor; complementary), has a sensing distance of up to 750mm, and uses visible red light with a wavelength of 624 nm. The response time of the sensor is 1.5ms / 0.0015 s, and it has an M18 thread size.
