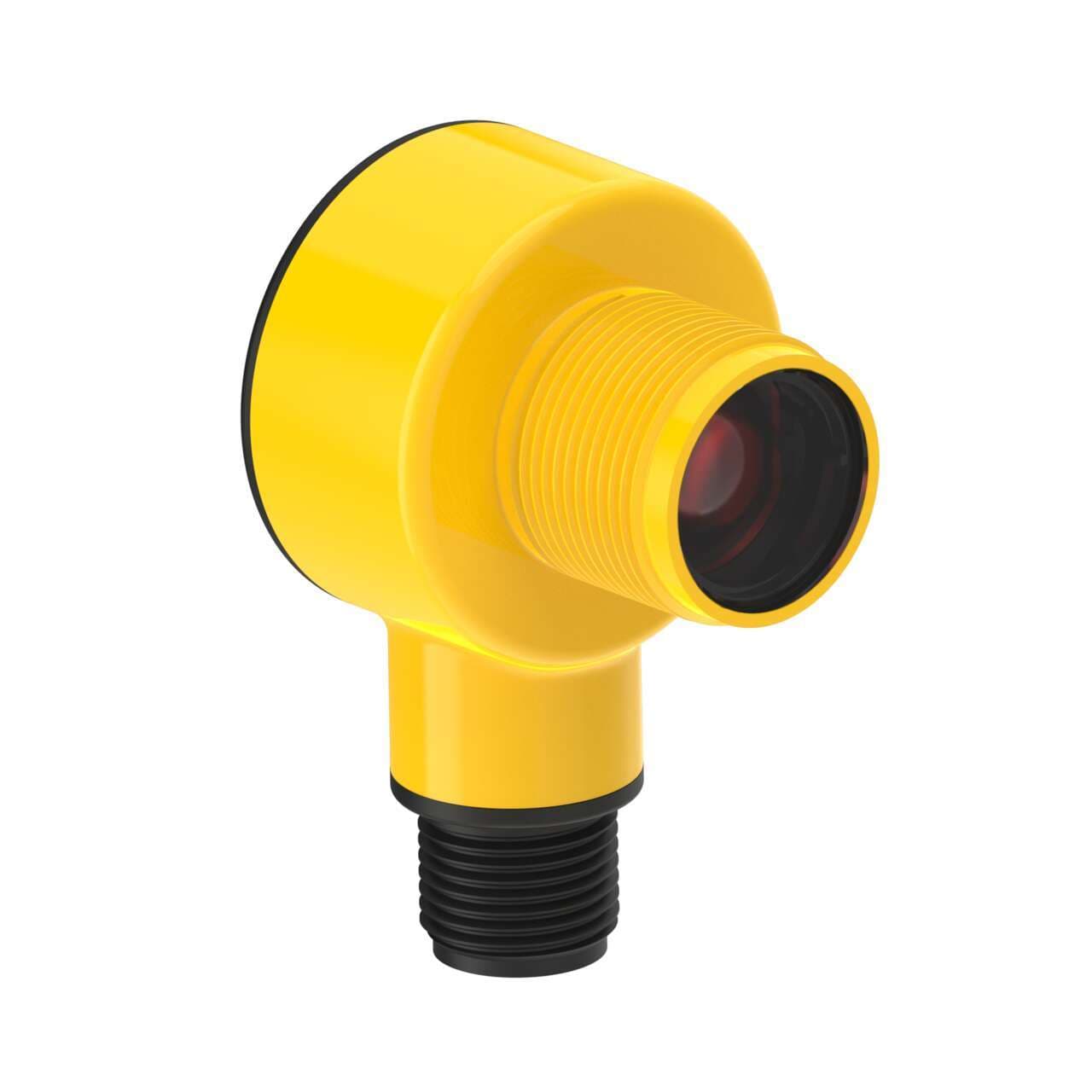

T18-2VPRL-Q8 Banner Proximity Sensors

T18-2VPRL-Q8 on Powermatic Associates
Banner
  • T18-2VPRL-Q8
  • T18-2VPRL-Q8

Part#:T18-2VPRL-Q8

Alt. Part#:802607

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

T18-2 Series: Receiver; Range: 25 m; Input: 10-30 V dc; Outputs: Complementary PNP; 4-pin M12 Integral QD

Product Details

  • Weight
    29.937072 g
  • Country Of Origin
    MX
  • Power Supply/Supply Voltage
    10-30 V dc
  • Power
    DC
  • IP Rating
    IP67, IP68, IP69
  • Opposed Mode Emitter/Receiver
    Receiver
  • Sensing Beam
    Visible Red or IR
  • Min Op. Temp. (°C)
    -40
  • Sensing Beam Wavelength
    624
  • Lens Material
    Acrylic
  • Feature: Encapsulated
    Yes
  • Sensing Mode (General)
    Opposed
  • Output response time (ms)
    1.5
  • Delay at Power-up (ms)
    500
  • Feature: Chemical Resistant
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Housing Style
    Barrel
  • Operation
    Light/Dark Operate
  • Repeatability (µs)
    170
  • Feature: Ecolab Certified
    Yes
  • Sensing Mode (Detailed)
    Receiver
  • Special Feature: Intrinsically Safe
    No
  • Special Feature: Water Detection
    No
  • Feature: Washdown Rated
    Yes
  • Primary Housing Material
    Thermoplastic
  • Quick Disconnect Type
    M12 (Euro)
  • Number of Pins
    4
  • Indicator
    Indicator LEDs
  • Input/Output
    Discrete
  • Max Op. Temp. (°C)
    70
  • NEMA Rating
    NEMA 6P
  • Feature: Hazardous Area
    No
  • Outputs
    PNP
  • Connection
    Integral QD
  • Adjustments
    N/A
  • Feature: Audible
    No
  • Max Sensing Distance (mm)
    25000
  • Special Feature: Remote Teach
    No
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • DeviceNet
    No
  • Barrel Diameter (mm)
    18
  • IO Link
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VPRL-Q8 on Powermatic Associates is $71.00. Order now.

About the product

Banner Engineering T18-2VPRL-Q8 is a photo-electric sensor designed as part of the T18-2 series, featuring a through-beam system in an opposed mode configuration. This sensor functions as a receiver alone, housed in a thermoplastic body with an acrylic lens. It comes pre-equipped with a 4-pin Euro-style M12 connector for connectivity. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It is designed to function within an ambient air temperature range of -40 to +70°C. The T18-2VPRL-Q8 offers a high degree of protection with ratings of IP67, IP68, IP69K, and NEMA 6P, making it suitable for harsh environmental conditions. Its shape is an M18 cylindrical threaded/barrel, and it features 1 x digital output (PNP transistor; complementary) for signaling. The sensing distance is up to 25 meters, utilizing visible red light for detection. It has a quick response time of 1.5ms / 0.0015 s and supports both Light-ON and Dark-ON operating modes, with a thread size of M18.
