T18-2VNFF100-2M Banner Proximity Sensors
Part#:T18-2VNFF100-2M
Alt. Part#:802665
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T18-2 Series: Fixed Field; Range: 100 mm; Input: 10-30 V dc; Outputs: complementary NPN; 2 m 4-conductor PVC Cable
Product Details
- Weight 90.7184 g
- Country Of Origin MX
- Input/Output Discrete
- Output response time (ms) 1.5
- IP Rating IP67, IP68, IP69
- Feature: Timing (Hold/Delay) No
- Small Visible Spot LED
- Operation Light/Dark Operate
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Housing Style Barrel
- Special Feature: Water Detection No
- Adjustments N/A
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 500
- Indicator Indicator LEDs
- Feature: Chemical Resistant Yes
- Connection Cable
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Washdown Rated Yes
- Cable Length (m) 2
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 624
- Barrel Diameter (mm) 18
- DeviceNet No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Outputs NPN
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Hazardous Area No
- Power DC
- Max Sensing Distance (mm) 100
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Encapsulated Yes
- Sensing Beam Visible Red LED
- Min Op. Temp. (°C) -40
- Repeatability (µs) 100
- Opposed Mode Emitter/Receiver N/A
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VNFF100-2M on Powermatic Associates is $126.00. Order now.
About the product

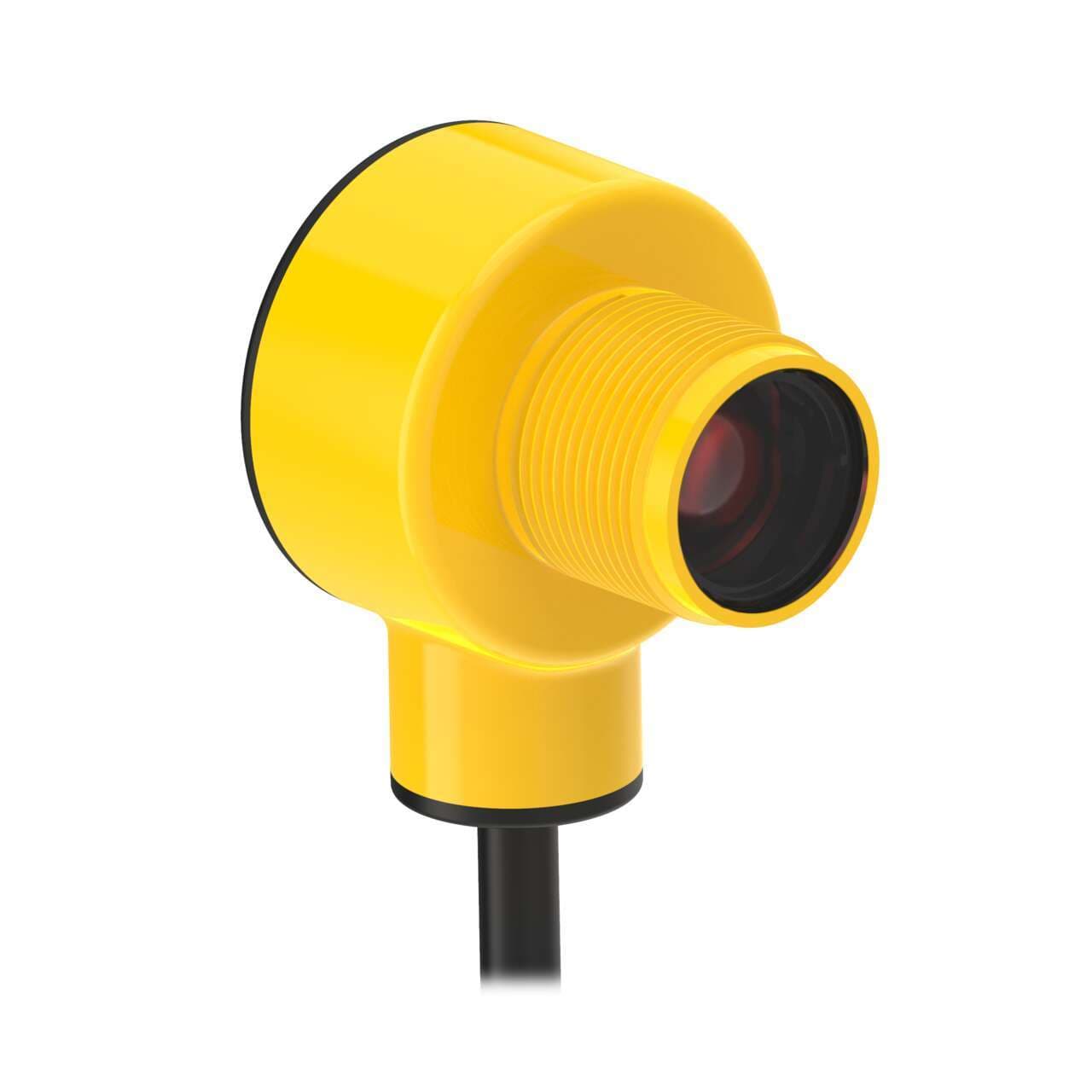

Banner Engineering T18-2VNFF100-2M is a fixed-field photo-electric sensor from the T18-2 series, designed with a background suppression system. It features a thermoplastic housing and an acrylic lens. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with nominal voltages of 12Vdc and 24Vdc. The ambient air temperature range for operation is between -40 and +70 degrees Celsius. It offers a degree of protection rated at IP67, IP68, IP69K, and NEMA 6P. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (NPN transistor; complementary), and has a sensing distance of 100mm. The light color is visible red, and it has a response time of 1.5ms / 0.0015 s, with a thread size of M18.
