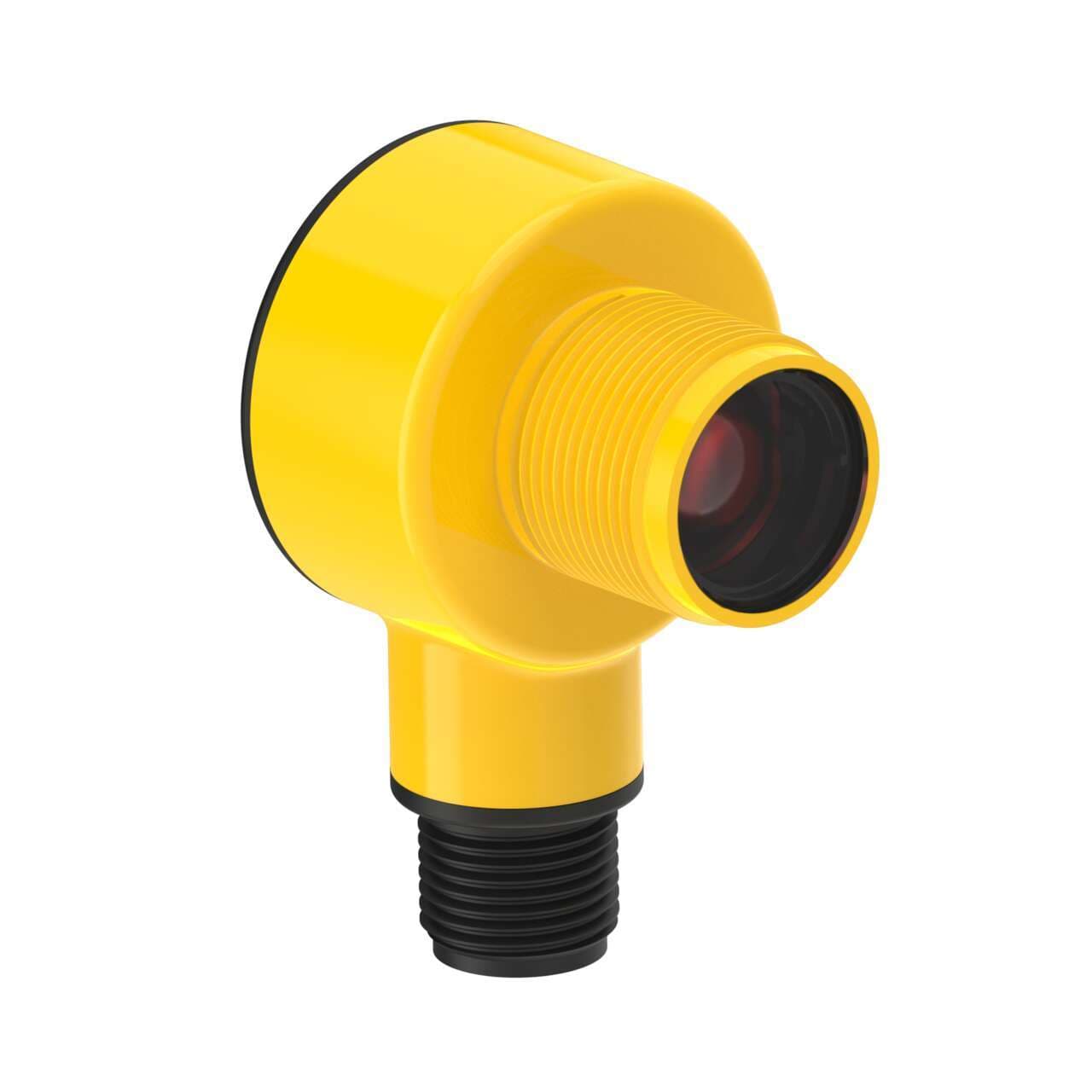

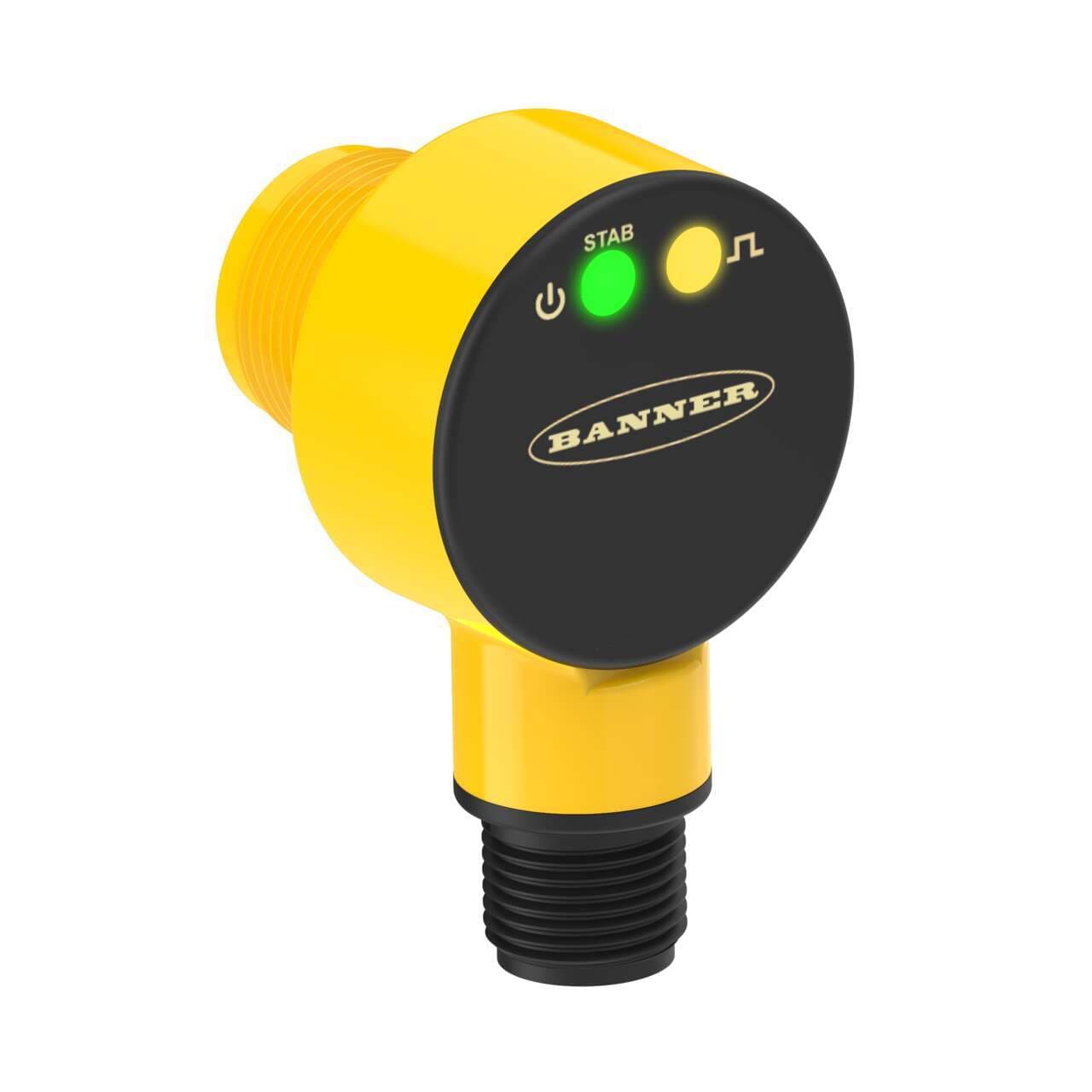

T18-2VNFF30IR-Q8 Banner Proximity Sensors
Part#:T18-2VNFF30IR-Q8
Alt. Part#:802685
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T18-2 Series: IR Fixed Field; Range: 30 mm; Input: 10-30 V dc; Outputs: Complementary NPN; 4-pin M12 Integral QD
Product Details
- Weight 27.21552 g
- Country Of Origin MX
- Input/Output Discrete
- Min Op. Temp. (°C) -40
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Max Sensing Distance (mm) 30
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Small Visible Spot LED
- Output response time (ms) 1.5
- Number of Pins 4
- Feature: Washdown Rated Yes
- Max Op. Temp. (°C) 70
- Adjustments N/A
- Feature: Encapsulated Yes
- Sensing Beam Infrared LED
- Quick Disconnect Type M12 (Euro)
- IP Rating IP67, IP68, IP69
- Feature: Hazardous Area No
- Housing Style Barrel
- Operation Light/Dark Operate
- Delay at Power-up (ms) 500
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Connection Integral QD
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 100
- Feature: Ecolab Certified Yes
- Power DC
- Outputs NPN
- Sensing Beam Wavelength 870
- Indicator Indicator LEDs
- DeviceNet No
- IO Link No
- Feature: Chemical Resistant Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VNFF30IR-Q8 on Powermatic Associates is $119.00. Order now.
About the product
Banner Engineering T18-2VNFF30IR-Q8 is a fixed-field photo-electric sensor from the T18-2 series, designed with a background suppression system. It features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector. This sensor operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values. It is designed to function within an ambient air temperature range of -40 to +70°C. The T18-2VNFF30IR-Q8 offers a degree of protection rated at IP67, IP68, and IP69K, as well as NEMA 6P, ensuring durability in various environmental conditions. Its shape is an M18 cylindrical threaded/barrel, and it includes 1 x digital output (NPN transistor; complementary). The sensing distance is specified at 30mm, with an infrared (IR) light color and a response time of 1.5ms or 0.0015 seconds. The thread size for this sensor is M18.
