T18-2VPDL-9M Banner Proximity Sensors
Part#:T18-2VPDL-9M
Alt. Part#:802639
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T18-2 Series: Diffuse Reflective with Pot; Range: 750 mm; Input: 10-30 V dc; Outputs: complementary PNP; 9 m 4-conductor PVC Cable
Product Details
- Weight 371.94544 g
- Country Of Origin MX
- Outputs PNP
- Special Feature: Intrinsically Safe No
- IP Rating IP67, IP68, IP69
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Diffuse
- Connection Cable
- Sensing Beam Wavelength 624
- Feature: Ecolab Certified Yes
- Input/Output Discrete
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6P
- Lens Material Acrylic
- Max Sensing Distance (mm) 750
- Operation Light/Dark Operate
- Barrel Diameter (mm) 18
- Feature: Hazardous Area No
- Cable Length (m) 9
- Quick Disconnect Type No QD
- Delay at Power-up (ms) 500
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Housing Style Barrel
- Output response time (ms) 1.5
- Number of Pins 4
- Indicator Indicator LEDs
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 100
- Feature: Washdown Rated Yes
- DeviceNet No
- Power DC
- Max Op. Temp. (°C) 70
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- IO Link No
- Sensing Mode (General) Proximity
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -40
- Adjustments Potentiometer
- Feature: Encapsulated Yes
- Feature: Chemical Resistant Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VPDL-9M on Powermatic Associates is $122.00. Order now.
About the product

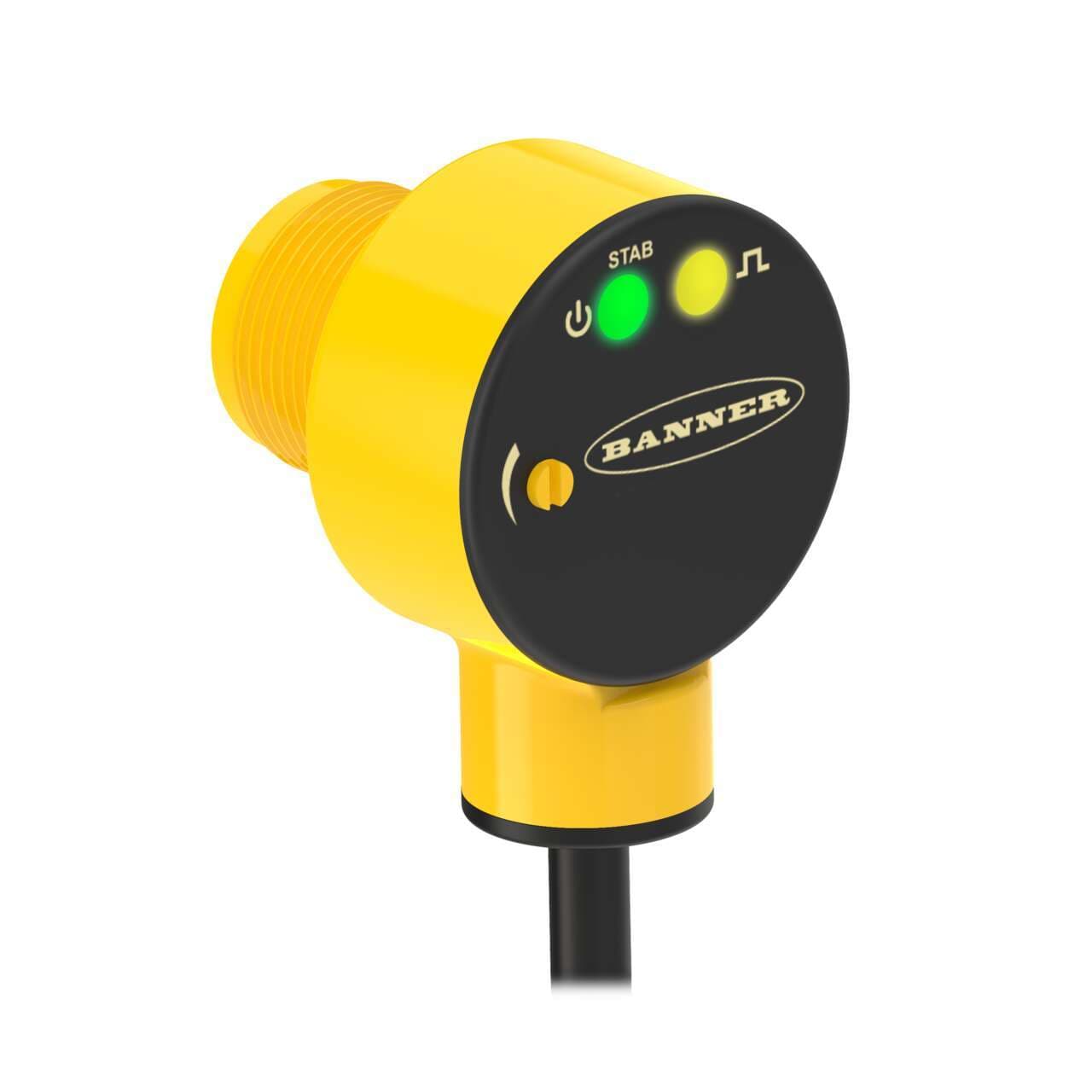

Banner Engineering T18-2VPDL-9M is a photo-electric sensor from the T18-2 series, designed with a diffuse mode pot range potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-wired with a 9m cable terminated with bare end flying leads. It operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc and 24Vdc as nominal values. The ambient air temperature for operation ranges from -40 to +70°C. It offers a high degree of protection with ratings of IP67, IP68, IP69K, and NEMA 6P, making it suitable for harsh environmental conditions. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (PNP transistor; complementary), and provides a sensing distance of up to 750mm. It emits visible red light and has a response time of 1.5ms / 0.0015 s. The operating modes available are Light-ON and Dark-ON, with a thread size of M18.
T18-2VPDL-9M Related Documents
Similar products from: Banner Proximity Sensors
Manufacturer warranty
T18-2VPDL-9M Banner
$122.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$122.00
$122.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare T18-2VPDL-9M with other Proximity Sensors products
Weight
Country Of Origin
Outputs
Special Feature: Intrinsi...
IP Rating
Opposed Mode Emitter/Rece...
Sensing Mode (Detailed)
Connection
Sensing Beam Wavelength
Feature: Ecolab Certified
Selected product
T18-2VPDL-9M
Banner
T18-2 Series: Diffuse Reflective with Pot; Range: 750 mm; Input: 10-30 V dc; Outputs: complementary ...
Weight371.94544 g
Country Of OriginMX
OutputsPNP
Special Feature: Intrinsically SafeNo
IP RatingIP67, IP68, IP69
Opposed Mode Emitter/ReceiverN/A
Sensing Mode (Detailed)Diffuse
ConnectionCable
Sensing Beam Wavelength624
Feature: Ecolab CertifiedYes
T18-2VPLP-2M
Banner
T18-2 Series: Polarized Retroreflective; Range: 6 m; Input: 10-30 V dc; Outputs: complementary PNP; ...
Weight90.7184 g
Country Of OriginMX
OutputsPNP
Special Feature: Intrinsically Safe-
IP Rating-
Opposed Mode Emitter/Receiver-
Sensing Mode (Detailed)Polarized
Connection-
Sensing Beam Wavelength-
Feature: Ecolab Certified-
SB12TANR
Banner
SB12 Threaded Series Receiver; Range: 1.5 m; Input Voltage: 10-30 V dc; Outputs: L.O. NPN; 2 m (6.5 ...
Weight45.3592 g
Country Of OriginCN
OutputsNPN
Special Feature: Intrinsically Safe-
IP Rating-
Opposed Mode Emitter/Receiver-
Sensing Mode (Detailed)Receiver
Connection-
Sensing Beam Wavelength-
Feature: Ecolab Certified-
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of T18-2VPDL-9M?
Purchase the T18-2VPDL-9M from Powermatic Associates at the price of $122.00. Order today.
Out if stock but available for backorder.
T18-2 Series: Diffuse Reflective with Pot; Range: 750 mm; Input: 10-30 V dc; Outputs: complementary PNP; 9 m 4-conductor PVC Cable
