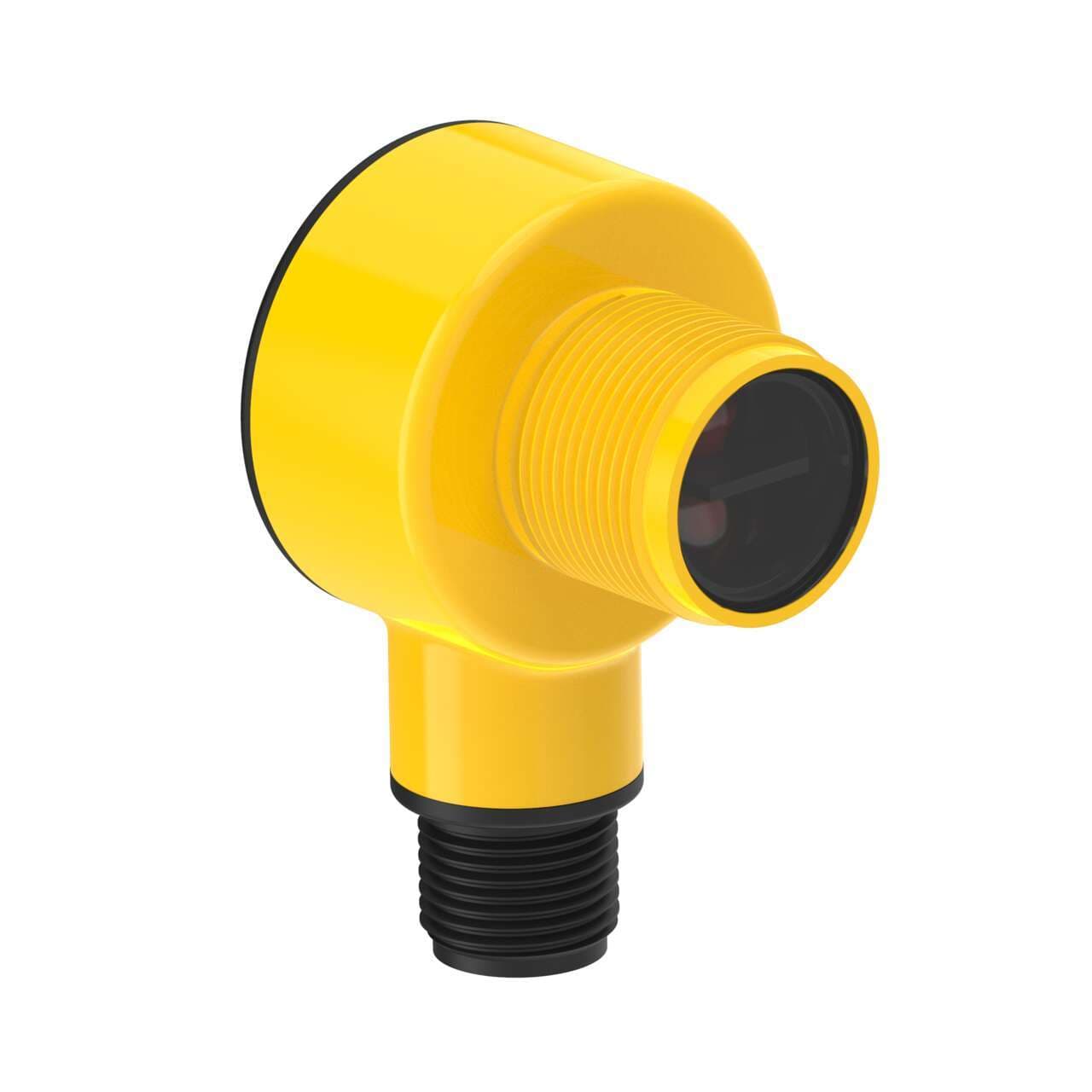

T18-2VPDS-Q8 Banner Proximity Sensors
Part#:T18-2VPDS-Q8
Alt. Part#:802646
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
T18-2 Series: Diffuse Short Range Reflective with Pot; Range: 300 mm; Input: 10-30 V dc; Outputs: Complementary PNP; 4-pin M12 Integral QD
Product Details
- Weight 0.2721552 g
- Country Of Origin MX
- Sensing Beam Visible Red LED
- Operation Light/Dark Operate
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) No
- Special Feature: Remote Teach No
- Power Supply/Supply Voltage 10-30 V dc
- Lens Material Acrylic
- Connection Integral QD
- Power DC
- Repeatability (µs) 100
- IO Link No
- Outputs PNP
- Special Feature: Water Detection No
- Sensing Mode (General) Proximity
- Primary Housing Material Thermoplastic
- Sensing Beam Wavelength 624
- Feature: Washdown Rated Yes
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Sensing Mode (Detailed) Diffuse
- Min Op. Temp. (°C) -40
- IP Rating IP67, IP68, IP69
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) 500
- Barrel Diameter (mm) 18
- Feature: Audible No
- Max Sensing Distance (mm) 300
- Output response time (ms) 1.5
- Housing Style Barrel
- Quick Disconnect Type M12 (Euro)
- Opposed Mode Emitter/Receiver N/A
- Feature: Ecolab Certified Yes
- Adjustments Potentiometer
- Feature: Chemical Resistant Yes
- Feature: Hazardous Area No
- Number of Pins 4
- DeviceNet No
- Indicator Indicator LEDs
- Feature: Encapsulated Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VPDS-Q8 on Powermatic Associates is $83.00. Order now.
About the product

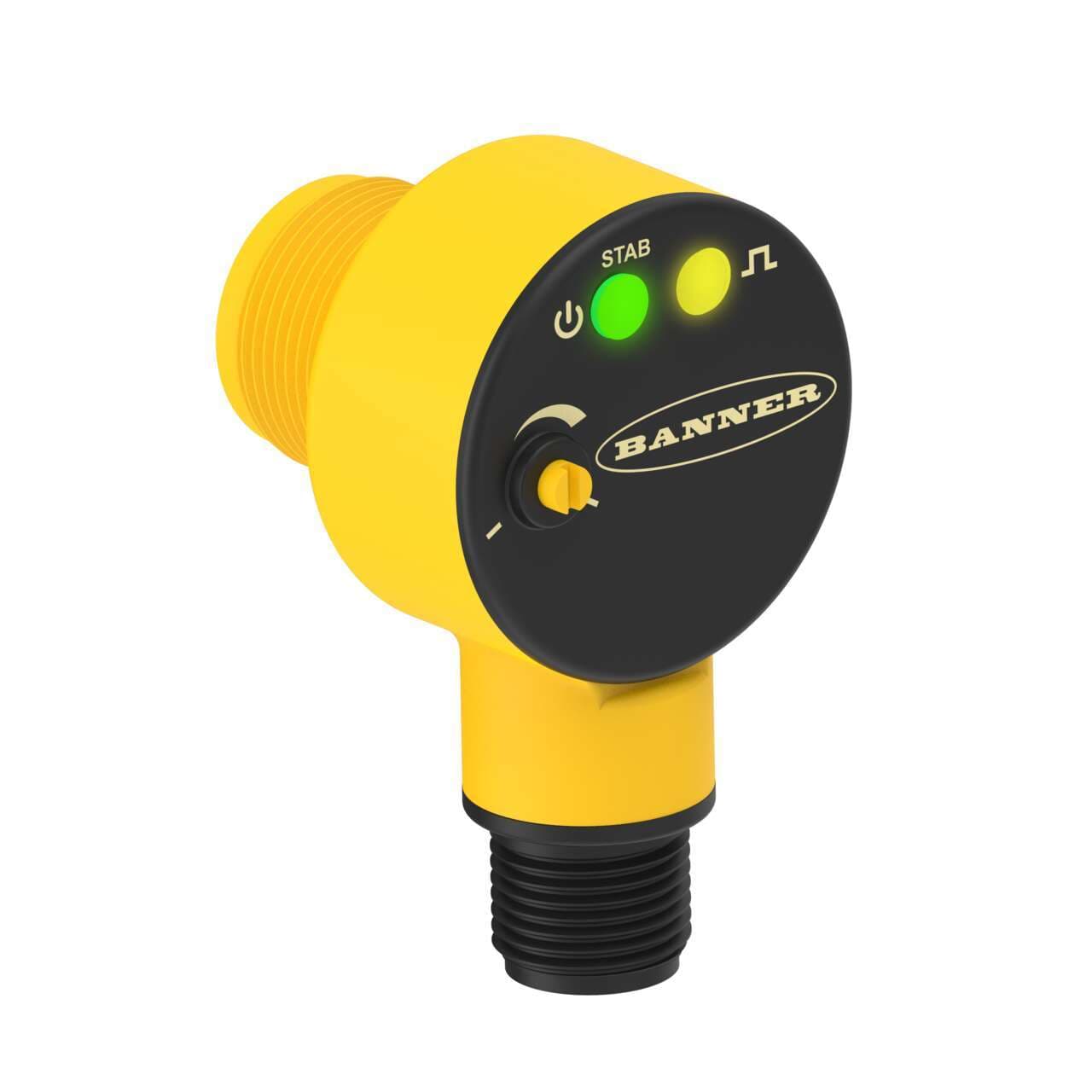

Banner Engineering T18-2VPDS-Q8 is a photo-electric sensor from the T18-2 series, designed with a diffuse mode for short-range detection and potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The T18-2VPDS-Q8 can function within an ambient air temperature range of -40 to +70°C and offers a high degree of protection with ratings of IP67, IP68, IP69K, and NEMA 6P, making it suitable for harsh environments. Its M18 cylindrical threaded/barrel shape facilitates easy installation. The sensor provides one digital output (PNP transistor; complementary), has a sensing distance of up to 300mm, and uses visible red light for detection. With a response time of 1.5ms (0.0015 s), it supports both Light-ON and Dark-ON operating modes, and it is designed with an M18 thread size for mounting.
