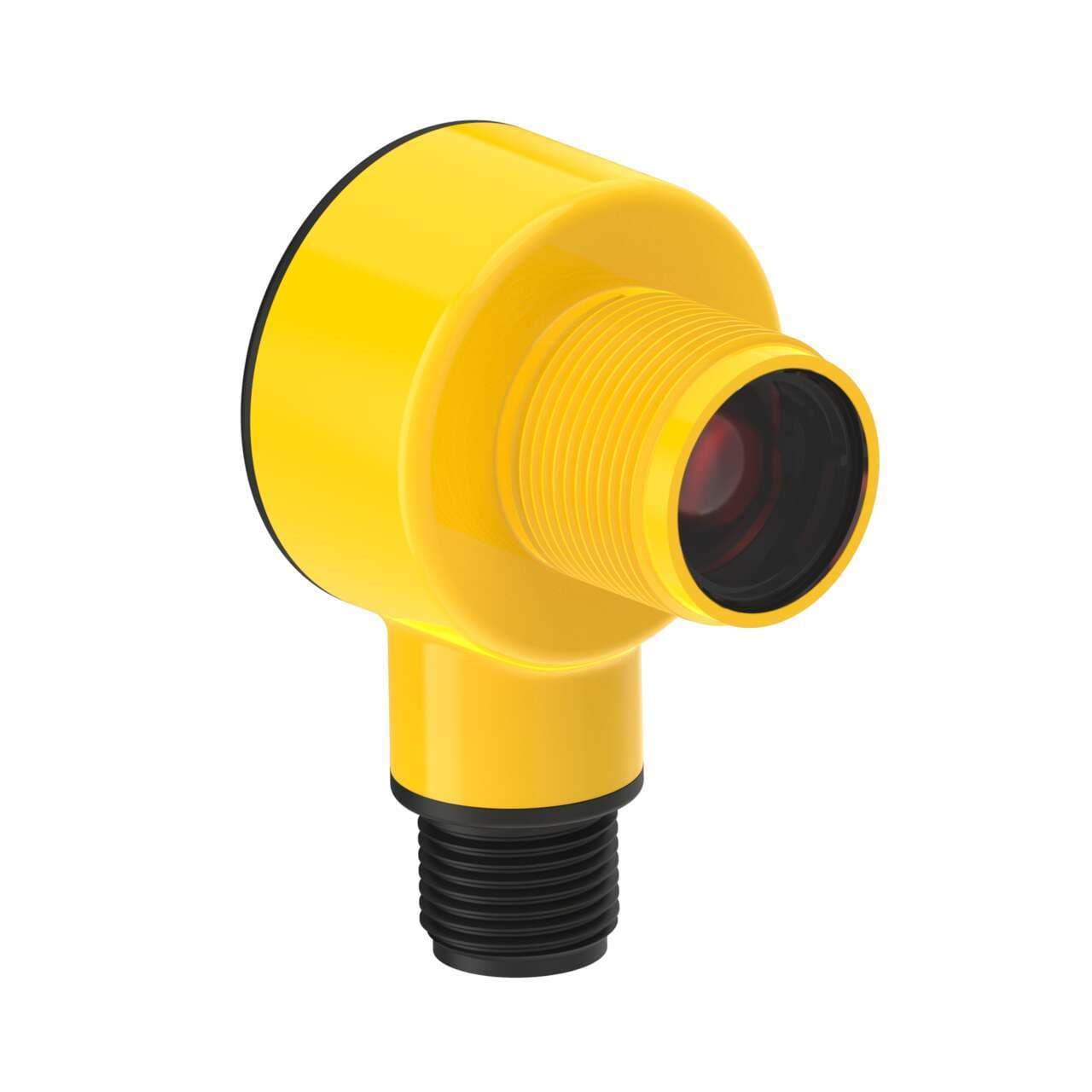

T18-2VPFF200IR-Q8 Banner Proximity Sensors

T18-2VPFF200IR-Q8 on Powermatic Associates
Banner
  • T18-2VPFF200IR-Q8
  • T18-2VPFF200IR-Q8

Part#:T18-2VPFF200IR-Q8

Alt. Part#:802718

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

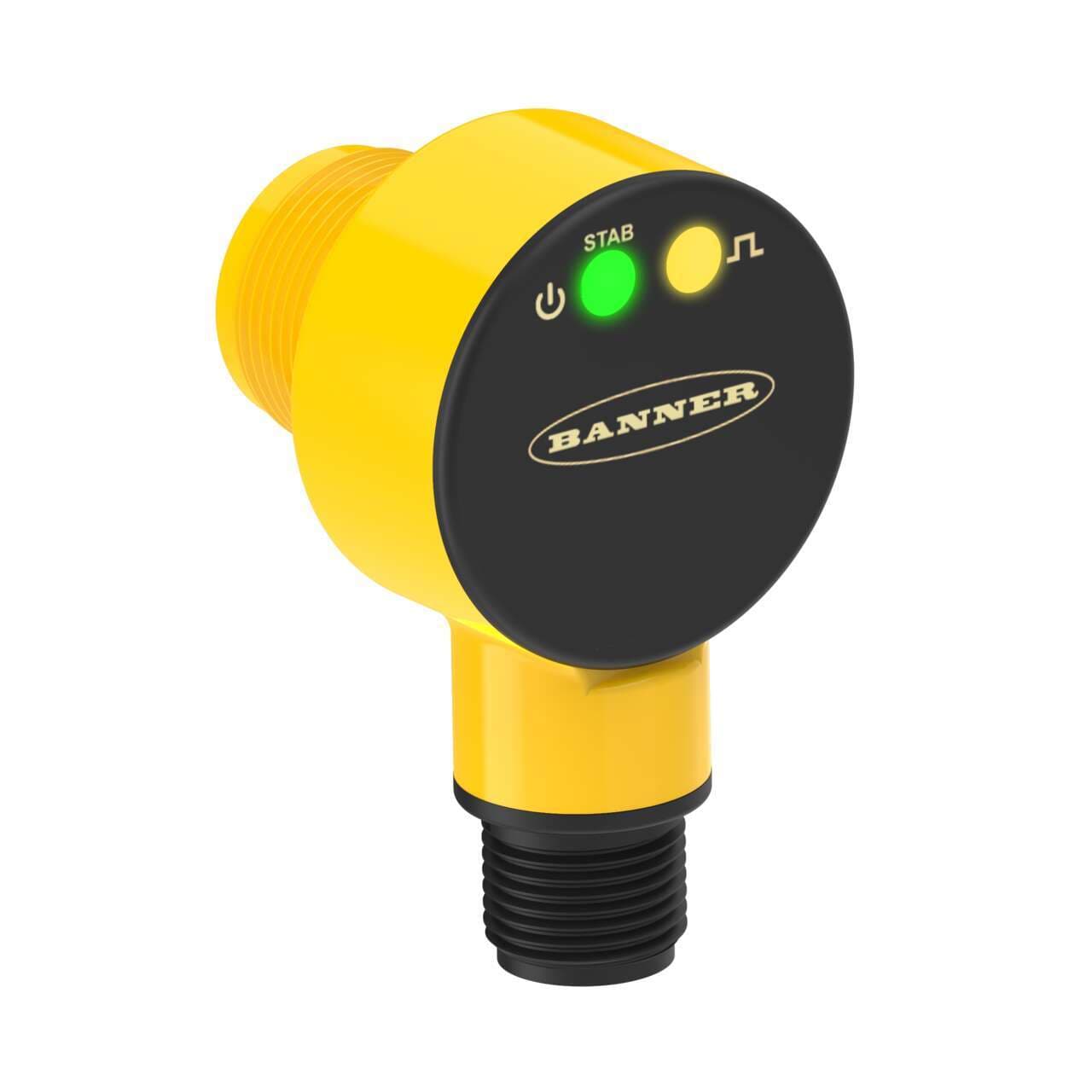

T18-2 Series: IR Fixed Field; Range: 200 mm; Input: 10-30 V dc; Outputs: Complementary PNP; 4-pin M12 Integral QD

Product Details

  • Weight
    0.3175144 g
  • Country Of Origin
    MX
  • Lens Material
    Acrylic
  • Adjustments
    N/A
  • Barrel Diameter (mm)
    18
  • Indicator
    Indicator LEDs
  • Input/Output
    Discrete
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Primary Housing Material
    Thermoplastic
  • Sensing Mode (General)
    Proximity
  • Housing Style
    Barrel
  • Sensing Beam
    Infrared LED
  • Connection
    Integral QD
  • Min Op. Temp. (°C)
    -40
  • Special Feature: Remote Teach
    No
  • Operation
    Light/Dark Operate
  • Special Feature: Intrinsically Safe
    No
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Washdown Rated
    Yes
  • Feature: Encapsulated
    Yes
  • Feature: Timing (Hold/Delay)
    No
  • Feature: Hazardous Area
    No
  • Feature: Audible
    No
  • Feature: Ecolab Certified
    Yes
  • Small Visible Spot
    LED
  • Max Op. Temp. (°C)
    70
  • Quick Disconnect Type
    M12 (Euro)
  • IP Rating
    IP67, IP68, IP69
  • Power
    DC
  • Delay at Power-up (ms)
    500
  • Max Sensing Distance (mm)
    200
  • Repeatability (µs)
    100
  • Power Supply/Supply Voltage
    10-30 V dc
  • Sensing Beam Wavelength
    870
  • Special Feature: Water Detection
    No
  • Output response time (ms)
    1.5
  • Number of Pins
    4
  • Outputs
    PNP
  • NEMA Rating
    NEMA 6P
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • DeviceNet
    No
  • IO Link
    No
  • Feature: Chemical Resistant
    Yes

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18-2VPFF200IR-Q8 on Powermatic Associates is $119.00. Order now.

About the product

Banner Engineering T18-2VPFF200IR-Q8 is a fixed-field photo-electric sensor from the T18-2 series, designed with a background suppression system. It features a thermoplastic housing with an acrylic lens and is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. This sensor operates within a supply voltage range of 10Vdc-30Vdc, with nominal values at 12Vdc and 24Vdc, and can function in ambient air temperatures ranging from -40 to +70°C. It offers a high degree of protection with ratings of IP67, IP68, IP69K, and NEMA 6P, making it suitable for harsh environments. The sensor has an M18 cylindrical threaded/barrel shape, includes 1 x digital output (PNP transistor; complementary), and provides a sensing distance of 200mm. It utilizes infrared (IR) light, has a response time of 1.5ms / 0.0015 s, and supports both Light-ON and Dark-ON operating modes, with a thread size of M18.
