T18AW3REQI Banner Proximity Sensors
Part#:T18AW3REQI
Alt. Part#:37066
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T18: Threaded R-Angle Receiver/Emitter; Range: 20 m; Input: 20-250 V ac; Output: Receiver Light Operate; Micro 4-pin Integral QD
Product Details
- Weight 109.769264 g
- Country Of Origin US
- Product series / family name EZ-BEAM series
- Sensing distance 20m
- Operating mode Light-ON
- Response time (ON) 16ms / 0.016 s(OFF) 8ms / 0.008 s
- Primary brand Banner Engineering
- Light Color Infrared (IR)
- Connection type Pre-equipped with 4-pin 1/2" Micro connector
- Main function Sensor (Photo-electric)
- Functions Photo-electric emitter + receiver sensor pair green LED (power ON) amber LED (output state)
- Shape Cylindrical smooth
- Sub-range name T18 series
- Wavelength 950 nm
- Design through-beam system / opposed mode
- Mounting mode Threaded mount
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Thread size M18
- Diameter 40mm
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Ambient air temperature for operation -40...+70 °C
- Degree of protection IP67 IP69K NEMA 6P
- Material thermoplastic housing Polycarbonate lns.
- Compliant with standard(s) cULus CSA CE
- Order code / Manufacturer SKU 37066
- Delay at Power-up (ms) 100
- DeviceNet No
- Operation Light Operate
- IP Rating IP67, IP69
- Special Feature: Remote Teach No
- Adjustments N/A
- Repeatability (µs) 2000
- Feature: Encapsulated Yes
- Special Feature: Water Detection No
- Lens Material Polycarbonate
- Feature: Chemical Resistant Yes
- Feature: Hazardous Area No
- Feature: Timing (Hold/Delay) No
- Min Op. Temp. (°C) -40
- Number of Pins 4
- Barrel Diameter (mm) 18
- Feature: Audible No
- Max Op. Relative Humidity [%] 90% @ 50°C
- NEMA Rating NEMA 6P
- Indicator LEDs
- Feature: Ecolab Certified Yes
- IO Link No
- Opposed Mode Emitter/Receiver Pair
- Feature: Washdown Rated Yes
- Outputs Solid-State AC Switch
- Output response time (ms) 16 ON/8 OFF
- Power Supply/Supply Voltage 20-250 V ac
- Max Sensing Distance (mm) 20000
- Max Op. Temp. (°C) 70
- Input/Output Solid-State AC Switch
- Quick Disconnect Type 1/2 in. (Micro)
- Sensing Mode (Detailed) Emitter/Receiver Pair
- Sensing Beam Infrared LED
- Special Feature: Intrinsically Safe No
- Primary Housing Material Thermoplastic
- Housing Style Barrel
- Connection Integral QD
- Sensing Mode (General) Opposed
- Power AC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18AW3REQI on Powermatic Associates is $170.00. Order now.
About the product

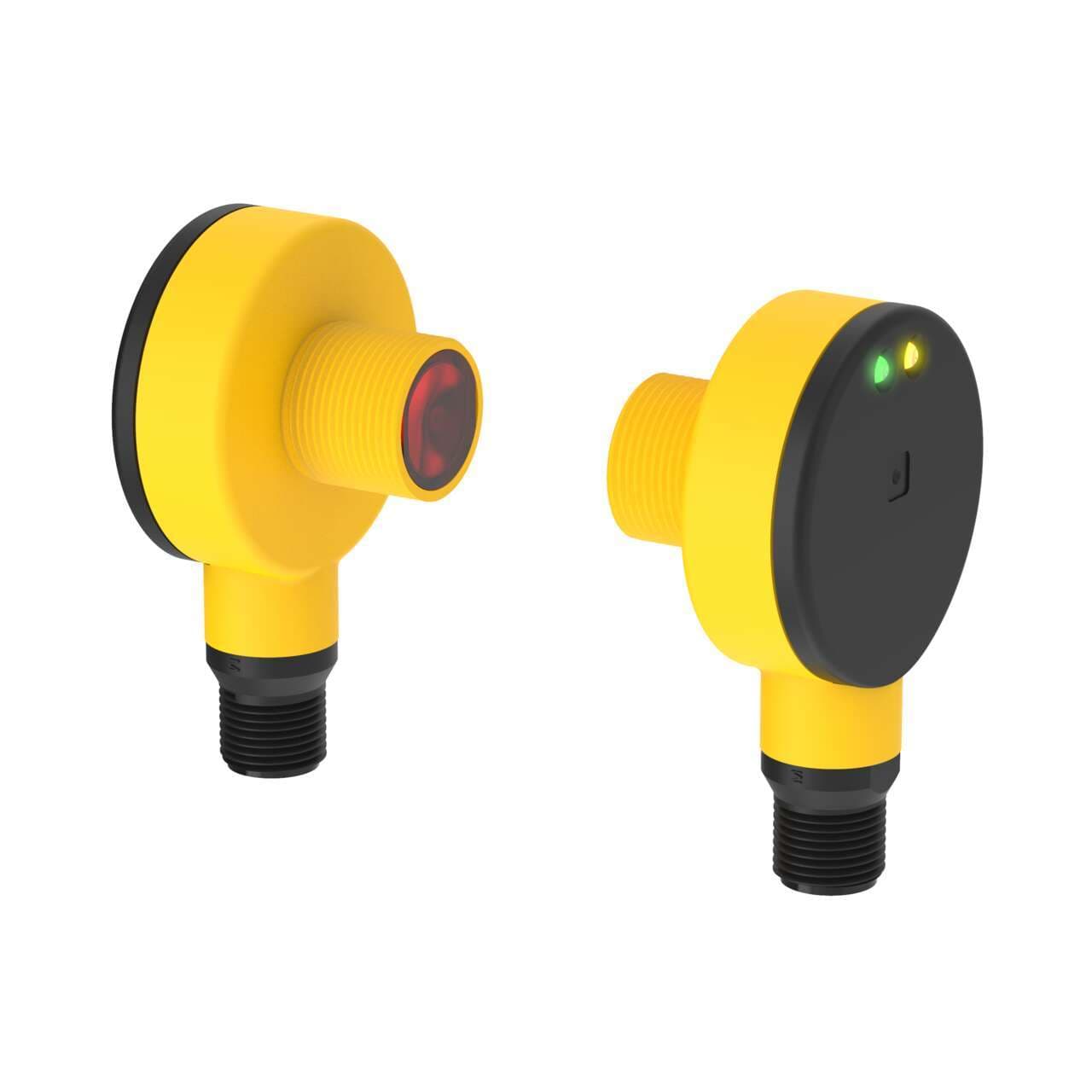

Banner Engineering T18AW3REQI is a photo-electric sensor from the T18 series, designed with a through-beam system or opposed mode. This sensor features a thermoplastic housing with a polycarbonate (PC) lens, and it is shaped as an M18 cylindrical threaded/barrel with a diameter of 40mm. It comes pre-equipped with a 4-pin 1/2" micro connector for connectivity. The T18AW3REQI operates on a supply voltage ranging from 20Vac to 250Vac (with nominal voltages of 200Vac, 220Vac, and 240Vac) and can function within an ambient air temperature range of -40 to +70°C. It offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environmental conditions. The sensor has a digital output (Solid-state AC output; SPST contact type) and is capable of sensing distances up to 20m. It operates with an infrared light color at a wavelength of 950 nm and features a response time of 16ms for turning on and 8ms for turning off. The operating mode is Light-ON, and it is mounted using a threaded mount with an M18 thread size.
