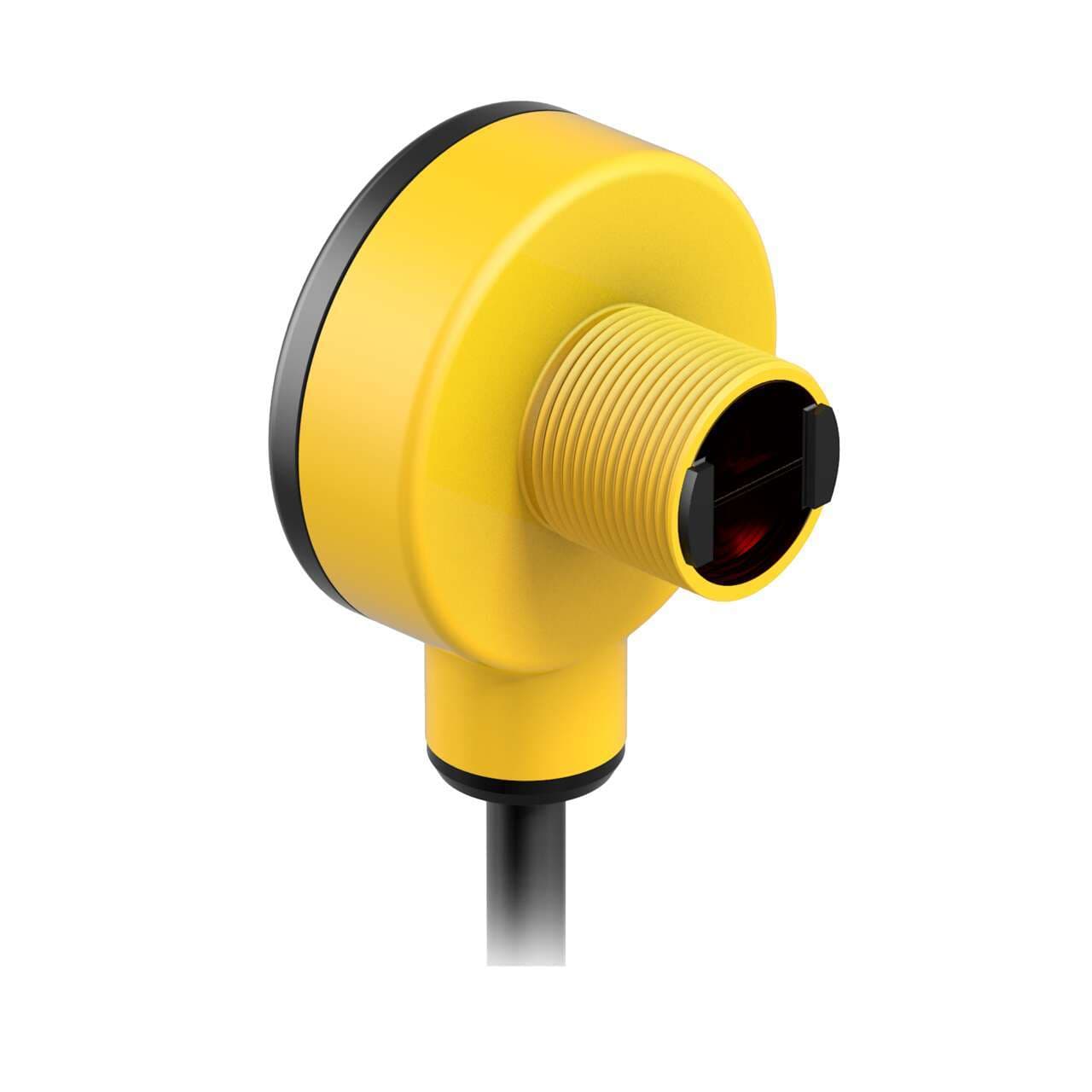

T18AW3FF100 Banner Proximity Sensors
Part#:T18AW3FF100
Alt. Part#:32475
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T18 Series: Fixed Field; Range: 100 mm; Input: 20-250 V ac; Output: SPST Solid-state Light Operate; 2 m (6.5 ft) Cable
Product Details
- Weight 159.210792 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Sensing distance 100mm
- Primary brand Banner Engineering
- Sub-range name T18 series
- Shape Cylindrical smooth
- Mounting mode Threaded mount
- Response time 16ms / 0.016 s
- Ambient air temperature for operation -40...+70 °C
- Functions Fixed-field photo-electric sensor green LED (power ON) amber LED (output state)
- Design background suppression system
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Material thermoplastic housing Acrylic lns.
- Compliant with standard(s) cULus CSA CE
- Product series / family name EZ-BEAM series
- Wavelength 880 nm
- Thread size M18
- Operating mode Light-ON
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Light Color Infrared (IR)
- Diameter 40mm
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Degree of protection IP67 IP69K NEMA 6P
- Order code / Manufacturer SKU 32475
- Sensing Mode (General) Proximity
- Connection Cable
- Output response time (ms) 16
- Barrel Diameter (mm) 18
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 20-250 V ac
- Special Feature: Water Detection No
- Max Sensing Distance (mm) 100
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Encapsulated Yes
- Input/Output Solid-State AC Switch
- Max Op. Temp. (°C) 70
- Number of Pins 3
- Feature: Timing (Hold/Delay) No
- Power AC
- Outputs Solid-State AC Switch
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Delay at Power-up (ms) 100
- Indicator LEDs
- DeviceNet No
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -40
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Housing Style Barrel
- Operation Light Operate
- NEMA Rating NEMA 6P
- Feature: Washdown Rated Yes
- IO Link No
- Cable Length (m) 2
- Quick Disconnect Type No QD
- IP Rating IP67, IP69
- Opposed Mode Emitter/Receiver N/A
- Repeatability (µs) 4000
- Feature: Chemical Resistant Yes
- Feature: Ecolab Certified Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18AW3FF100 on Powermatic Associates is $170.00. Order now.
About the product
Banner Engineering T18AW3FF100 is a fixed-field photo-electric sensor from the T18 series, designed with a background suppression system. It features a thermoplastic housing with an acrylic lens and has an M18 cylindrical threaded/barrel shape. This sensor is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads for connectivity. It operates on a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.) and can be mounted using a threaded mount. The T18AW3FF100 is designed to work within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6P. It has a 40mm diameter, a sensing distance of 100mm, and utilizes infrared (IR) light with a wavelength of 880 nm. This sensor provides a digital output (Solid-state AC output; SPST contact type) and has a response time of 16ms / 0.016 s. Its operating mode is Light-ON, and it features an M18 thread size.
