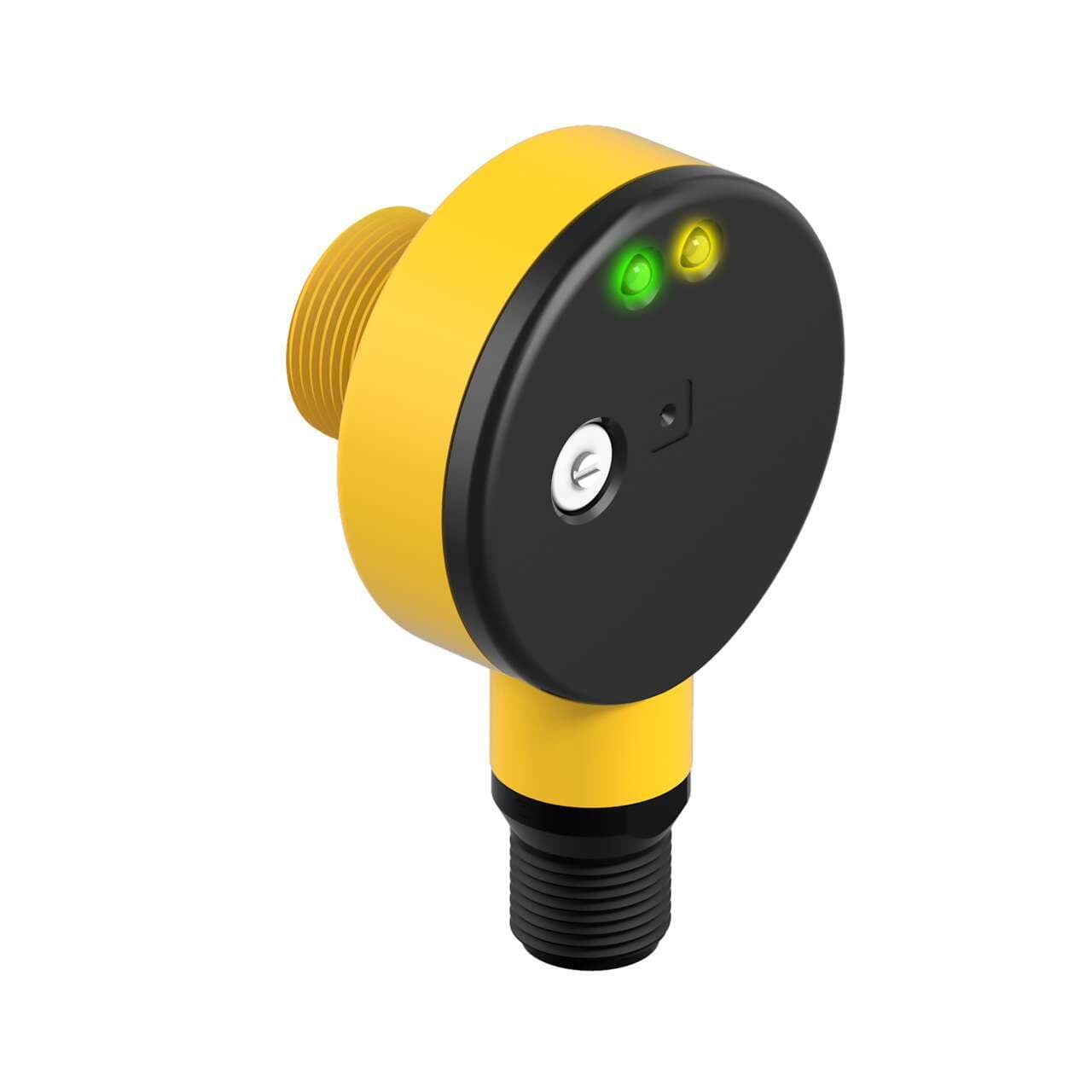

T18RW3DQ1 Banner Proximity Sensors
Part#:T18RW3DQ1
Alt. Part#:34925
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T18 Series: Diffuse; Range: 300 mm; Input: 20-250 V ac; Output: SPST Solid-state Dark Operate; 4-pin Micro Integral QD
Product Details
- Weight 56.699 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Light Color Infrared (IR)
- Shape Cylindrical smooth
- Digital outputs 1 x digital output (Solid-state AC output; SPST contact type)
- Ambient air temperature for operation -40...+70 °C
- Sub-range name T18 series
- Thread size M18
- Material thermoplastic housing Acrylic lns.
- Primary brand Banner Engineering
- Design diffuse mode
- Diameter 40mm
- Response time 16ms / 0.016 s
- Compliant with standard(s) cULus CSA CE
- Product series / family name EZ-BEAM series
- Functions Photo-electric sensor green LED (power ON) amber LED (output state) potentiometer adjustment
- Wavelength 880 nm
- Connection type Pre-equipped with 4-pin 1/2" Micro connector
- Operating mode Dark-ON
- Sensing distance 300mm
- Mounting mode Threaded mount
- Degree of protection IP67 IP69K NEMA 6P
- Order code / Manufacturer SKU 34925
- Primary Housing Material Thermoplastic
- Operation Dark Operate
- Special Feature: Water Detection No
- Indicator LEDs
- Power AC
- Special Feature: Intrinsically Safe No
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- IP Rating IP67, IP69
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Connection Integral QD
- Delay at Power-up (ms) 100
- Feature: Washdown Rated Yes
- DeviceNet No
- Outputs Solid-State AC Switch
- Output response time (ms) 16
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 20-250 V ac
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Input/Output Solid-State AC Switch
- Special Feature: Remote Teach No
- Adjustments Potentiometer
- Feature: Audible No
- Max Sensing Distance (mm) 300
- Quick Disconnect Type 1/2 in. (Micro)
- Opposed Mode Emitter/Receiver N/A
- Number of Pins 4
- IO Link No
- Sensing Mode (Detailed) Diffuse
- Min Op. Temp. (°C) -40
- Barrel Diameter (mm) 18
- Repeatability (µs) 4000
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Lens Material Acrylic
- Feature: Hazardous Area No
- Feature: Chemical Resistant Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18RW3DQ1 on Powermatic Associates is $114.00. Order now.
About the product
Banner Engineering T18RW3DQ1 is a photo-electric sensor from the T18 series, designed with a diffuse mode potentiometer adjustment. This sensor features a thermoplastic housing with an acrylic lens and has an M18 cylindrical threaded/barrel shape. It is pre-equipped with a 4-pin 1/2" micro connector for connectivity and operates on a supply voltage ranging from 20Vac to 250Vac (with nominal voltages of 200Vac, 220Vac, and 240Vac). The T18RW3DQ1 offers a threaded mount for installation and can operate within an ambient air temperature range of -40 to +70°C. It boasts a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environments. The sensor has a 40mm diameter, a sensing distance of 300mm, and utilizes infrared light with a wavelength of 880 nm for detection. It features 1 x digital output (Solid-state AC output; SPST contact type) and has a response time of 16ms (0.016 s). The operating mode is Dark-ON, suitable for applications requiring the detection of objects in the absence of light.
