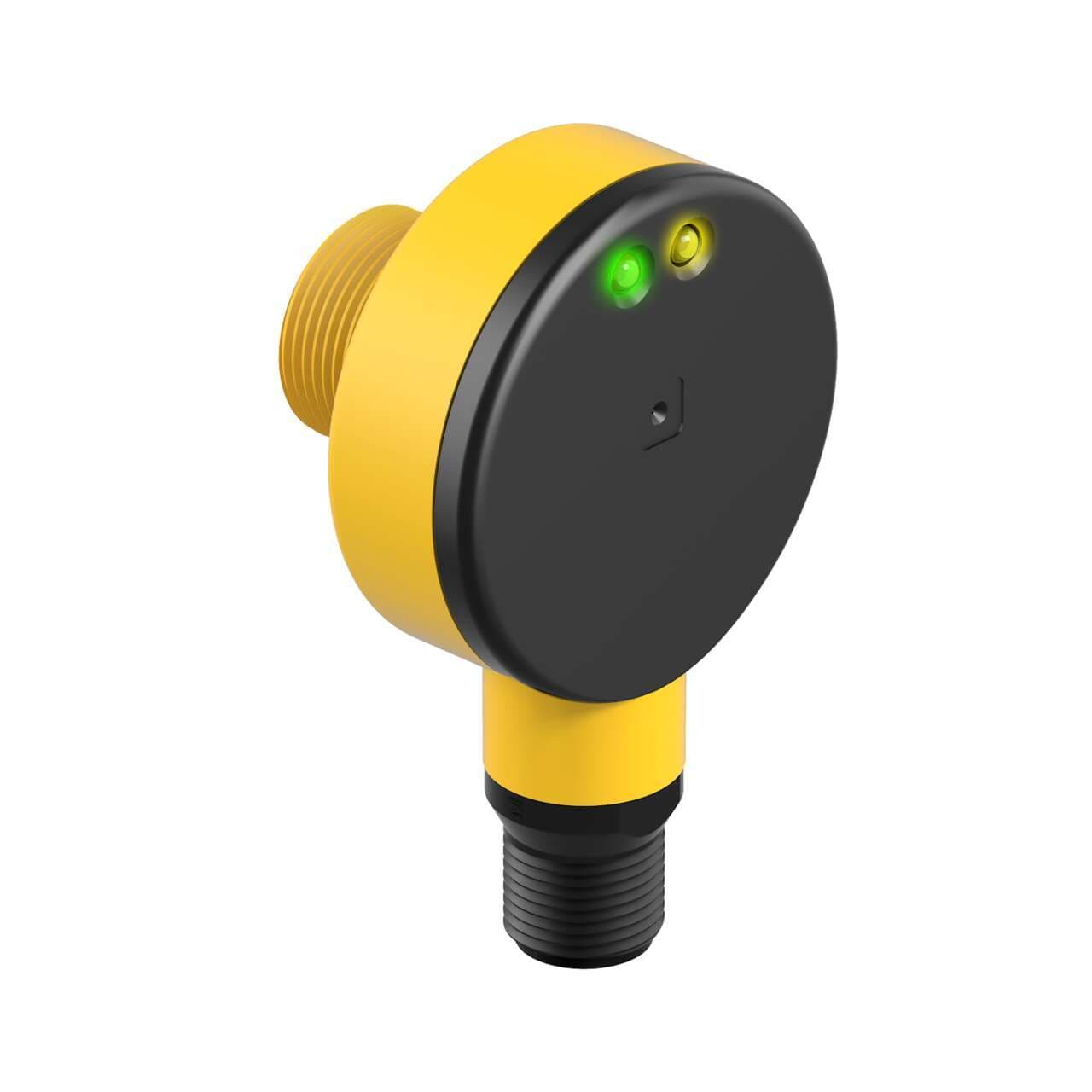

T18RW3LPQ1 Banner Proximity Sensors
Part#:T18RW3LPQ1
Alt. Part#:33419
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
EZ-BEAM T18 Series: Polarized Retro; Range: 2 m; Input: 20-250 V ac; Output: SPST Solid-state Dark Operate; 4-pin Micro Integral QD
Product Details
- Weight 56.699 g
- Country Of Origin US
- Primary Housing Material Thermoplastic
- Outputs Solid-State AC Switch
- Power AC
- Operation Dark Operate
- Indicator LEDs
- Barrel Diameter (mm) 18
- Housing Style Barrel
- Quick Disconnect Type 1/2 in. (Micro)
- Delay at Power-up (ms) 100
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 2000
- Output response time (ms) 16
- Repeatability (µs) 4000
- Lens Material Acrylic
- Sensing Mode (General) Retroreflective
- Power Supply/Supply Voltage 20-250 V ac
- Adjustments N/A
- Feature: Chemical Resistant Yes
- Input/Output Solid-State AC Switch
- Special Feature: Water Detection No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Washdown Rated Yes
- Max Op. Temp. (°C) 70
- IP Rating IP67, IP69
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Visible Red LED
- Connection Integral QD
- Special Feature: Remote Teach No
- Feature: Audible No
- Sensing Mode (Detailed) Polarized
- Min Op. Temp. (°C) -40
- Number of Pins 4
- Feature: Ecolab Certified Yes
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6P
- Feature: Encapsulated Yes
- Feature: Timing (Hold/Delay) No
- IO Link No
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T18RW3LPQ1 on Powermatic Associates is $152.00. Order now.
About the product
Banner Engineering T18RW3LPQ1 is a polarized photo-electric sensor from the T18 series, designed in a retro-reflective mode. This sensor features a thermoplastic housing with an acrylic lens and has an M18 cylindrical threaded/barrel shape. It is pre-equipped with a 4-pin 1/2" micro connector for connectivity and operates within a supply voltage range of 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.). The T18RW3LPQ1 offers a threaded mount installation and can operate in ambient air temperatures ranging from -40 to +70°C. It boasts a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring durability in various environments. The sensor has a diameter of 40mm and provides a sensing distance of 2m with a visible red light color at a wavelength of 680 nm. It features a single digital output (Solid-state AC output; SPST contact type) and has a response time of 16ms / 0.016 s. The operating mode of this sensor is Dark-ON.
